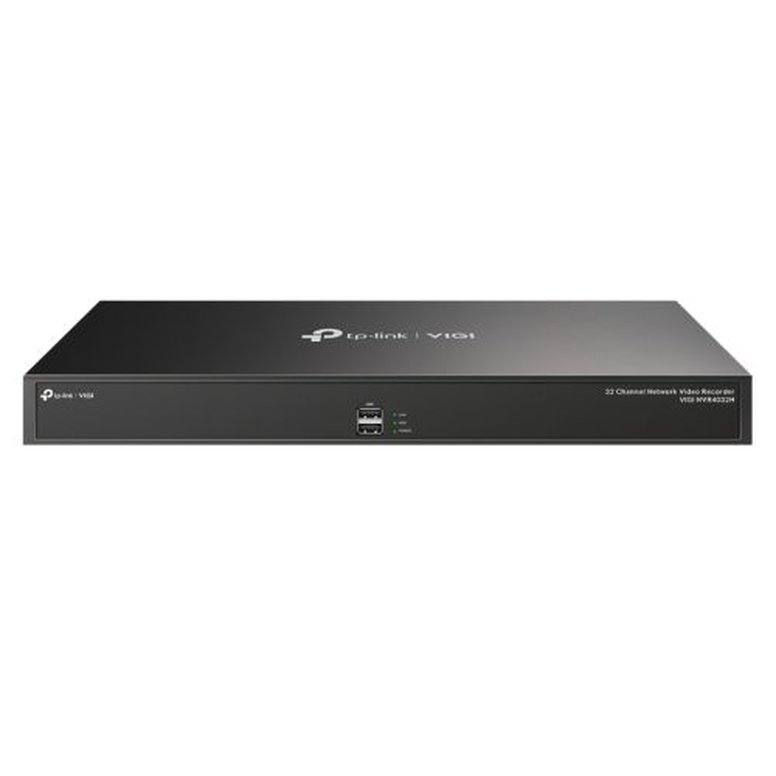

VIGI 32 Channel Network Video Recorder


• Face Recognition: Enhances access management and maximizes security.
• Smart Search by Motion and Object: Quickly find target footage for improved playback efficiency.
• H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• 320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
• Mass Storage: Supports 4× SATA, up to 10 TB each
• 16-ch@2MP/ 8-ch@4MP Decoding Capacity: Allows you to enjoy more channels, live view, and playback at the same time.
• 1 HDMI and 1 VGA Interface: Supports independent video output.
• 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
• Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
• ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

Description

Specification

• Access Camera Number: 32
• Wired Access Bandwidth: Incoming: 320 Mbps
  Outgoing: 320 Mbps
• Interface(s): "2 x GB LAN (Self-Adaptive)
  1 x VGA
  1 x HDMI
  1 x USB 3.0 (rear)
  2 x USB 2.0 (front)
  1 x Audio In; 1 x Audio Out
  Alarm In/Out: 16/4
  1 x RS232 Serial Interface"
• Video Input/Output: IP Video Input: 32-Channel
  Video Output Mode: HDMI/VGA Independent Output
• Decoding: H.265+/H.265/ H.264+/H.264
• HDD: 4 x 3.5"" SATA
  Up to 10 TB Capacity for Each HDD
• Power Supply: "100-240 VAC, 50 to 60HZ, 1.5A"
• Power Consumption: 5 W (Without Disk)
  48 W (With Disk)
• Weight/Dimensions: 4.0 kg
  (WxDxH) 440 x 330 x 44 mm
• Package Contents: "VIGI Network Video Recorder
  Mouse
  Installation Guide
  Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks
  Mounting Brackets, Screws and Rubber Feet"
• Additional Features: See Overview
• Package Weight: 4.6000 kg
• Warranty: 3 Years
