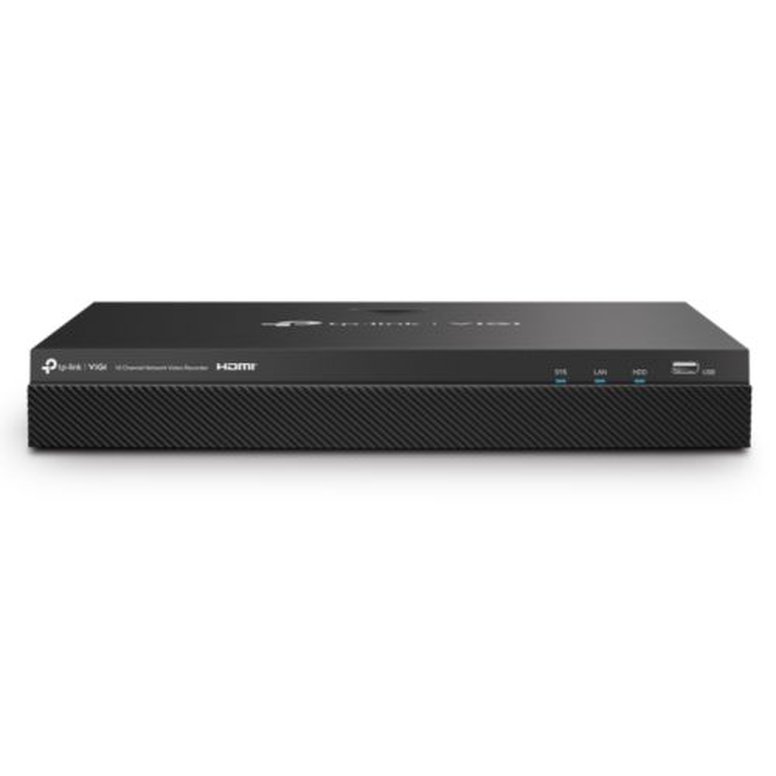

VIGI 16 Channel Network Video Recorder

• 16-Channel Live View and 4K HDMI Video Output
• Up to 10-ch @ 1080P (25fps) Decoding Capability
• 16-Channel Synchronous Playback
• 160 Mbps Incoming and Outgoing Bandwidth
• 2x SATA Interfaces and 1 Up to 16 TB
• H.265+ Compression Technology
• Alarm In/Out: 6/4
• HDMI and VGA Independent Output
• Remote Monitoring
• One-Click System Initialize - VIGI NVRs enable quick camera additions, HDD initialization, and storage scheduling with a single click, reducing setup expenses.

Description

Specification

• Access Camera Number: 16
• Wired Access Bandwidth: Incoming Bandwidth: 160 Mbps
  Outgoing Bandwidth: 160 Mbps
• Network: "Protocol:
  UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

  Mobile Phone Access:
  Android, iOS

  Web Browser:
  Chrome (57+), Firefox (52+), Edge (91+), Safari (11+)

  Interoperability:
  ONVIF Profile S, CGI

  "
• Interface(s): "Network: 1 x RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet
  USB: 1 x Front USB 2.0 Port, 1 x Rear USB 3.0 Port
  Audio: 1-ch RCA Input; 1-ch RCA Output
  Alarm In/Out: 6/4
  Power: 1 x DC Jack
  1 x eSATA
  1 x HDMI
  1 x VGA "
• Video Input/Output: "IP Video Input:
  16-Channel

  HDMI Output Resolution:
  1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

  VGA Output Resolution:
  1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

  Video Output Mode:
  HDMI/VGA Independent Output

  "
• Decoding: "Audio Compression:
  G.711A/G.711U/G.726

  Video Compression:
  H.265+/H.265/H.264+/H.264

  Record Resolution:
  8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  Synchronous Playback:
  16-Channel

  Capability:
  25fps: 10-ch@1080P
  30fps: 2-ch@8MPl, 4-ch@5MP, 5-ch@4MP, 6-ch@3MP

  "
• HDD: 2 SATA Interfaces
  Capacity Up to 16 TB Capacity for Each HDD
  *Hard drives (not included) must be installed for operation.
• PoE: -
• Power Supply: 12V DC/3.3A
• Power Consumption: 7.475 W (Without Disk)
  28.635 W (With Disk)
• Record Management: "Record Mode:
  Manual Recording, Scheduling Recording, Motion Detection Recording

  Playback Mode:
  Instant Playback, Regular Playback, Tag Playback, Event Playback

  Backup Mode:
  Regular Backup, Video Clip Backup

  Playback Function:
  Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

  "
• Alarm: "General Alarm:
  Motion, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering, Object Abandoned/Removal, Vehicle, Human, Abnormal Sound, Smart Frame

  Anomaly Alarm:
  Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception

  Alarm Linkage:
  Recording, White Light Alarm, Buzzer, Log, Audible Alarm

  "
• Weight/Dimensions: 2 kg
  330 x 285 x 45 mm
• Environment : Storage Temperature: -40–70 °C
  Storage Humidity: 10%~90% RH Non-Condensing
  Working Temperature: NVR: -10–55 °C / Power Adapter: 0–40 °C
  Working Humidity: 10%~90% RH Non-Condensing
• Package Contents: VIGI Network Video Recorder
  Power Adapter
  HDD Power Cable
  HDD Data Cables
  Mounting Accessories
  Mouse
  Quick Installation Guide
• Additional Features: See Overview
• Package Weight: 3.0000 kg
• Warranty: 5 Years
