TP-LINK

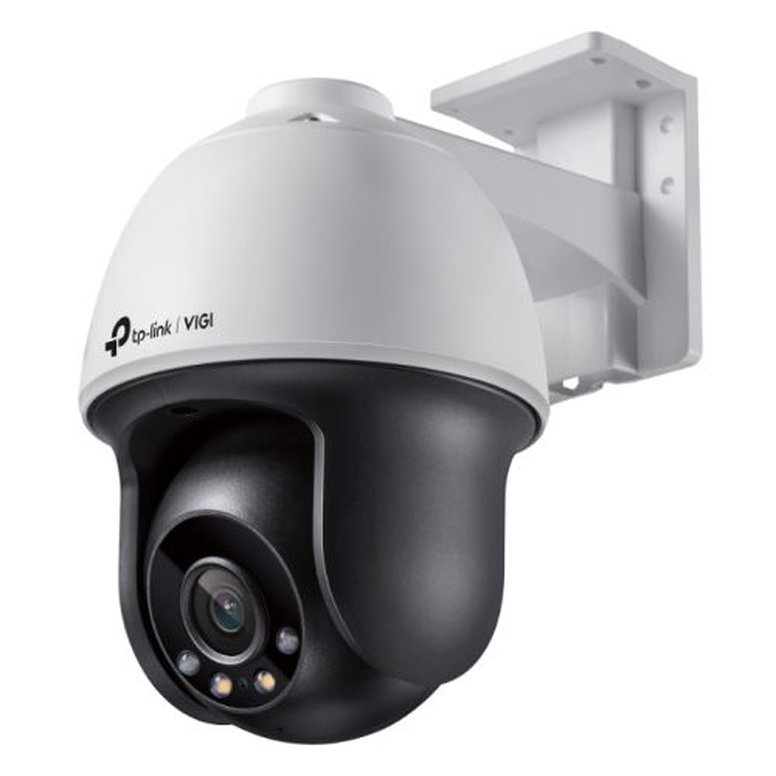

TP-LINK (VIGI C540 4MM) 4MP Outdoor Full-Colour Pan Tilt Network Camera w/ 4mm Lens, PoE, Spotlight LEDs, Human & Vehicle Classification, H.265+
£124.13
Out of stock
TP-LINK (VIGI C540 4MM) 4MP Outdoor Full-Colour Pan Tilt Network Camera w/ 4mm Lens, PoE, Spotlight LEDs, Human & Vehicle Classification, H.265+
TP-LINK
TP-LINK (VIGI C540 4MM) 4MP Outdoor Full-Colour Pan Tilt Network Camera w/ 4mm Lens, PoE, Spotlight LEDs, Human & Vehicle Classification, H.265+
£124.13
Out of stock
Product Details




VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera


  • 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
  • Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
  • Automatic Tracking: Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image.
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
  • Two-Way Audio: Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance.
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).






Clarity and Colors, All in One

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.





Powerful Pan Tilt

Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.





Human & Vehicle Classification

Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.





Automatic Tracking

Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image. Track the path efficiently when there should be little movement in the area.





Smart Detection

Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.





Active Defense

Warn potential intruders instantly with sound and light when abnormal events





Every Event is Under Your Control.

VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.





SmartVid-Smart Video Enhancement

VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.





More compression. More savings. Same quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.





Outdoor PoE Connection, Simple Wiring

Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.





Flexible Management and Storage

Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each methods, as well as onboard storage with SD card slot  (up to 256 GB).



Product Specification

Description

Specification

  • Suitable for Outdoor: Yes
  • Wired/Wireless: Wired
  • Interface(s): "1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE"
  • Image Sensor: 1/3” Progressive Scan CMOS
  • Resolution: "Main Stream:
    2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

    Sub-Stream:
    640x480, 352x288, 320x240"
  • Frame Rate: "Main Stream:
    1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

    Sub-Stream:
    1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps"
  • Video Compression: Main Stream:
    H.265+/H.265/H.264+/H.264

    Sub-Stream:
    H.265/H.264
  • Lens: Type: Fixed Focal Lens

    Focal Length: 4 mm

    Aperture: F1.6

    Lens Mount: M12

    DORI Distance:
    Detect: 80 m (262 ft)
    Observe: 33 m (109 ft)
    Recognize: 16 m (52 ft)
    Identify: 8 m (26 ft)
  • Viewing Angle: Horizontal FOV: 79°
    Vertical FOV: 43°
    Diagonal FOV: 93°
  • Pan/Tilt Range: Pan: 0° to 350°
    Tilt: 0° to 120°
  • Day/Night Mechanism: IR Cut Filter
  • Minimum Illumination: "Colour: 0.005 Lux; 0 Lux with IR/white light"
  • Video Streaming: Main Stream
    Sub-Stream
  • Image Settings: "Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)"
  • Audio Features: Two-Way Audio
    Audio Input
    Audio Output
    Audio Compression
    Audio Sampling Rate: 8KHz
    Environment Noise Filtering
    Audio Bit Rate: 64 Kbps(G.711 alaw)
  • Noise Reduction: 3D DNR
  • Alarm & Event Management: "Smart Event:
    Human & Vehicle Classification, Area Intrusion, Line-Crossing, People, Vehicle, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering

    Basic Event:
    Motion, Video Tampering, Exception (Illegal Login)

    Alarm Linkage:
    Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

    Output Notification:
    Message Push"
  • Network: "Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

    API: Open Network Video Interface (Profile S)

    Simultaneous Live View: Up to 6 Channels

    Client: VIGI App, VIGI Security Manager, VIGI NVR, Web

    Cloud: Yes

    ONVIF: Yes"
  • Security: "Network Security:
    Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication"
  • Management: VIGI App
  • Power Supply: "12V DC +/- 5%, 5.5mm Coaxial Power Plug
    PoE (802.3af/at, class 4)"
  • Weight/Dimensions: 120 x 172 x 198 mm
  • Environment: IP66 Waterproof
    Operating Temperature: -30–60°C
    Storage Temperature: -40–60°C
    Storage Humidity: 95% or Less (Non-Condensing)
    Operating Humidity: 95% or Less (Non-Condensing)
  • Package Contents: VIGI Network Camera
    Quick Start Guide
    Waterproof Cable Attachments
    Mounting Accessories
  • Package Weight: 1.0000 kg
  • Warranty: 3 Years
