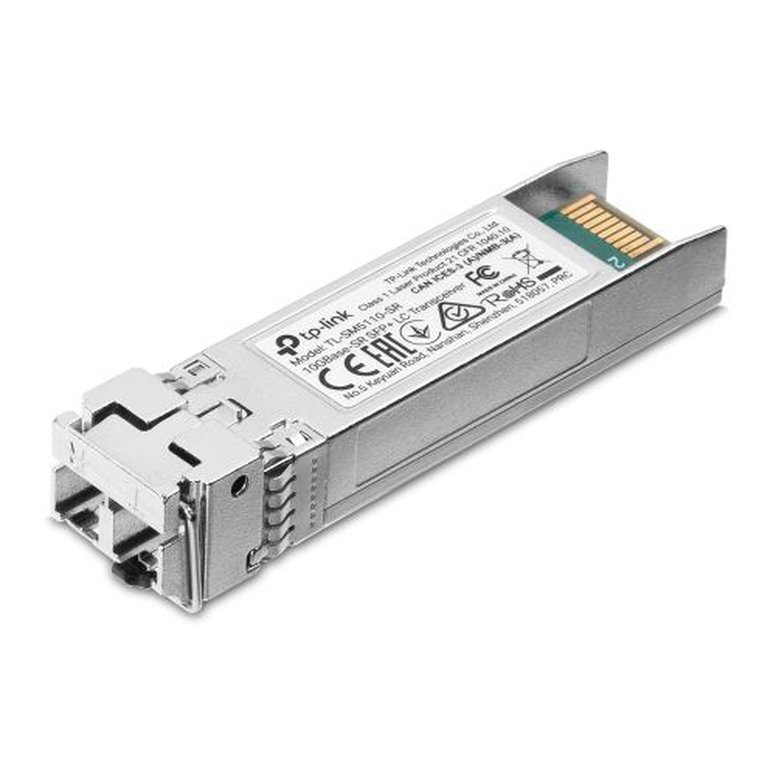

TP-LINK (TL-SM5110-SR) 10GBase-SR SFP+ LC Transceiver

TP-LINK

TP-LINK (TL-SM5110-SR) 10GBase-SR SFP+ LC Transceiver, Hot-Pluggable, DDM Support, 850 nm

£27.75

Out of stock

TP-LINK

TP-LINK (TL-SM5110-SR) 10GBase-SR SFP+ LC Transceiver, Hot-Pluggable, DDM Support, 850 nm

£27.75

Out of stock

Product Details

TP-LINK Website

10GBase-SR SFP+ LC Transceiver

Multi-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

What This Product Does

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Product Specification

Description

Specification

Device Type: SFP+ LC Transceiver
Standards and Protocols: "IEEE 802.3ae, TCP/IP, SFF-8472"
Cable: Multi-mode Fiber
Fiber Type: 50/125um or 62.5/125um Multi-mode
Max. Cable Length: 300m (OM3)
Data Rate: 10 Gbps
Wave Length: 850nm
Port Type: LC/UPC
Power Supply: 3.3V
Environment: Operating Temperature: 0–70 C (32–158 F)
Storage Temperature: -40–80 C (-40–176 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Type: Retail
Package Weight: 0.0060 kg
Warranty: 2 Years
