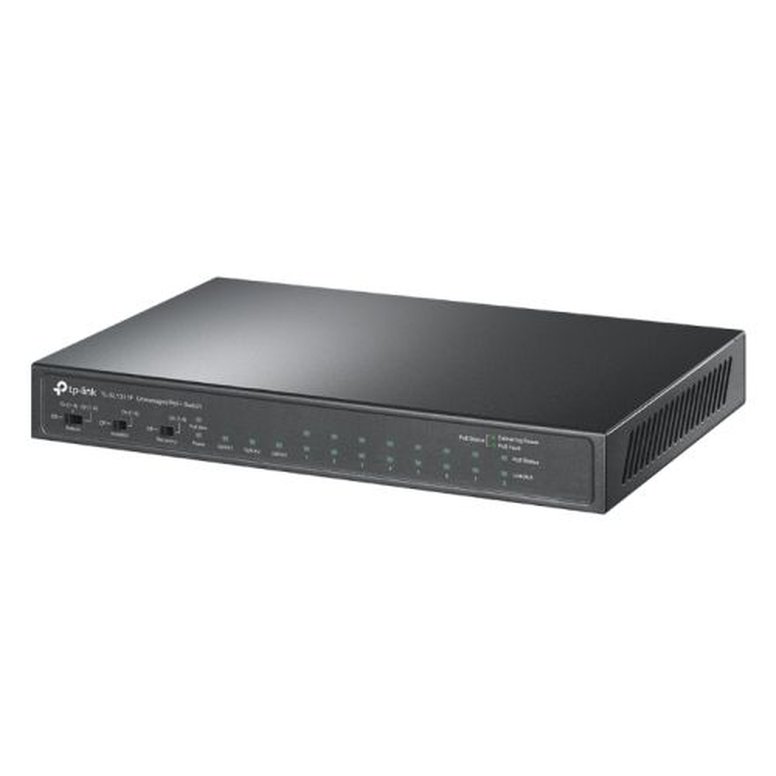

8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+


• 8x 10/100 Mbps RJ45 Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
• 8x PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 65 W for 8 PoE ports*
• Up to 250 m data and power transmitting range under Extend Mode**
• Isolation Mode allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Fanless Design reduces power consumption and works silently in its location
• Plug and play with no configuration required

Description

Specification

• Rackmountable: No
• Managed: No
• Number of Ports: 10
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: GB SFP
• Interface(s): 8 x10/100 Mbps 802.3af/at PoE+ Ports
  2 x Gigabit RJ45 Ports
  1 x Gigabit SFP Port
  AUTO Negotiation
  AUTO MDI/MDIX
• PoE Ports (RJ45): Standard: 802.3 af/at compliant
  PoE Ports: Ports 1–8
  Power Supply: 65 W
• Switching Capacity: 7.6 Gbps
• Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
• Dimensions: (WxDxH) 209 x 126 x 26 mm
• Transfer Method: Store-And-Forward
• Mac Address Table: 2K
• Packet Forwarding Rate: 5.6544 Mpps
• Jumbo Frame: 16 KB
• Advanced Functions: "Compatible With IEEE 802.3af/at Compliant PDs
  Extend Mode Button (Ports 1–4 & Ports 1–8, Up to 250m PoE power & data transmission)
  Isolation Mode Button (Ports 1–8)
  PoE Auto Recovery Button (Ports 1–8)
  Mac Address Auto-Learning and Auto-Aging
  IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode"
• Security: Physical Security Lock
• Environment: Operating Temperature: 0–40°C (32–104°F)
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: TL-SL1311P
  Power Adapter
  Installation Guide
• Package Type: Retail
• Package Weight: 1.3300 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
