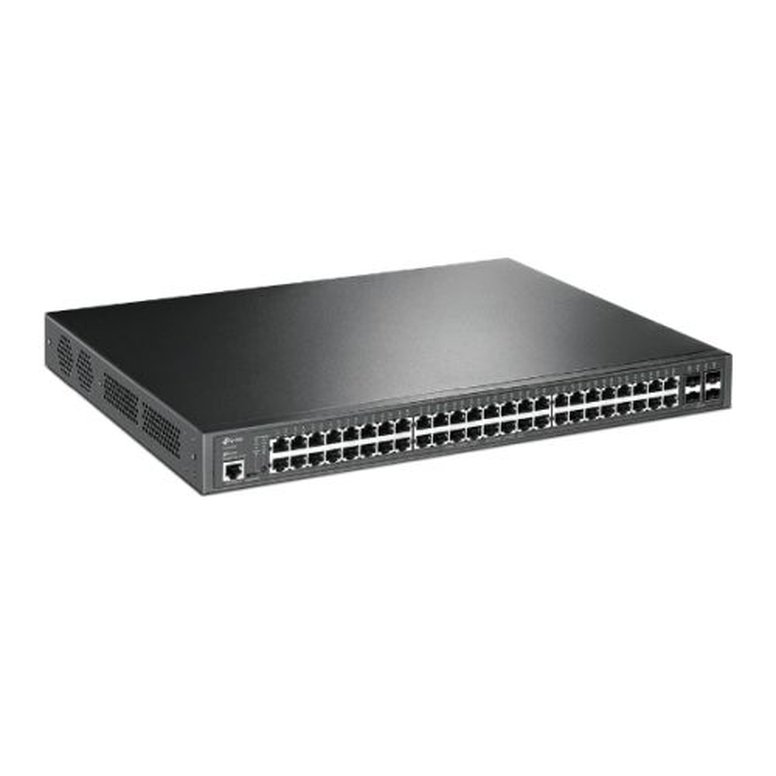

JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+

• 384 W PoE Budget: 48x 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
• Full Gigabit Ports: 48x gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Description

Specification

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 52
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: GB SFP
• Interface(s): 48 x 10/100/1000 Mbps RJ45 Ports
  4 x Gigabit SFP Slots
  1 x RJ45 Console Port
  1 x Micro-USB Console Port
• PoE Ports (RJ45): "Standard: 802.3at/af compliant
  PoE+ Ports: 48 Ports, up to 30 W per port
  Power Budget: 384 W"
• Switching Capacity: 104 Gbps
• Power Supply: 100-240 V AC~50/60 Hz

  Power Consumption:
  52.53 W (110 V/60 Hz) (no PD connected)
  485.4 W (110 V/60 Hz) (with 384 W PD connected)
• Dimensions: 440 x 330 x 44 mm
• Mac Address Table: 16 K
• Packet Forwarding Rate: 77.4 Mpps
• Jumbo Frame: 9 KB
• Additional Features: "Support Omada Hardware, Software, Cloud-Based Controller
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  ZTP (Zero-Touch Provisioning)"
• Quality of Service: 8 priority queues
  802.1p CoS/DSCP priority
  Queue scheduling
  Bandwidth Control
  Smoother Performance
  Action for Flows
• Layer Features: L2 and L2+
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  Flow Control
  Mirroring

  L3
  16 IPv4/IPv6 Interfaces
  Static Routing
  Static ARP
  316 ARP Entries
  Proxy ARP
  Gratuitous ARP
  DHCP Server
  DHCP Relay
  DHCP L2 Relay
• VLAN: "VLAN Group
  802.1q Tagged VLAN
  MAC VLAN: 12 Entries
  Protocol VLAN: Template 16, VLAN 16
  GVRP
  VLAN VPN (QinQ)
  Voice VLAN"
• Access Control: Time-based ACL
  MAC ACL
  IP ACL
  Combined ACL
  Packet Content ACL
  IPv6 ACL
  Policy
  ACL apply to Port/VLAN
• Security: IP-MAC-Port Binding
  IPv6-MAC-Port Binding
  DoS Defend
  Static/Dynamic Port Security
  Broadcast/Multicast/Unicast Storm Control
  IP/Port/MAC based access control
  802.1X
  AAA (including TACACS+)
  Port Isolation
  Secure web management - HTTPS with SSLv3/TLS 1.2
  Secure CLI management with SSHv1/SSHv2
• Management: "Web-based GUI
  CLI through console port, telnet
  SNMPv1/v2c/v3
  SDM Template
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP AutoInstall
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  Password Recovery
  SNTP
  System Log"
• Environment: "Operating Temperature: 0C~45C (32F~113F);
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing"
• Package Contents: TL-SG3452P Switch
  Power Cord
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 7.0000 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
