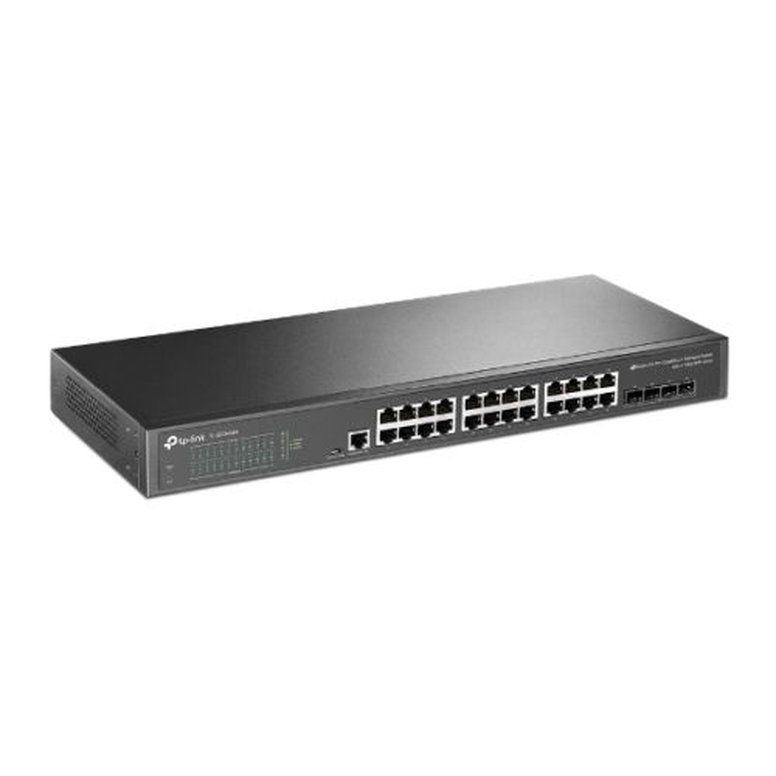

JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots


• 10G Lightning-Fast Uplink: 4x 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
• Gigabit Speeds: 24x gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities


Description

Specification

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 24
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: 10G SFP
• Interface(s): 24 x 10/100/1000 Mbps RJ45 Ports
  4 x 10G SFP+ Slots
  1 x RJ45 Console Port
  1 x Micro-USB Console Port
• PoE Ports (RJ45): -
• Switching Capacity: 128 Gbps
• Power Supply: 100-240 V AC~50/60 Hz
• Dimensions: 440 x 180 x 44 mm
• Mac Address Table: 16 K
• Packet Forwarding Rate: Forwarding
• Jumbo Frame: 95.23 Mpps
• Additional Features: Support Omada Hardware/Software/Cloud-Based Controller
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  ZTP (Zero-Touch Provisioning)
• Quality of Service: 8 priority queues
  802.1p CoS/DSCP priority
  Queue scheduling
  Bandwidth Control
  Smoother Performance
  Action for Flows
• Layer Features: L2 and L2+:
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  Flow Control
  Mirroring

  L3:
  16 IPv4/IPv6 Interfaces
  Static Routing
  Static ARP
  Proxy ARP
  Gratuitous ARP
  DHCP Server
  DHCP Relay
  DHCP L2 Relay
• VLAN: "VLAN Group
  802.1Q Tagged VLAN
  MAC VLAN: 7 Entries
  Protocol VLAN: Template 16, VLAN 16
  Private VLAN
  GVRP
  VLAN VPN (QinQ)
  Voice VLAN"
• Access Control: Time-based ACL
  MAC ACL
  IP ACL
  Combined ACL
  Packet Content ACL
  IPv6 ACL
  Policy
  ACL apply to Port/VLAN
• Security: IP-MAC-Port Binding
  IPv6-MAC-Port Binding
  DoS Defend
  Static/Dynamic Port Security
  Broadcast/Multicast/Unicast Storm Control
  802.1X
  AAA (including TACACS+)
  Port Isolation
  Secure web management - HTTPS with SSLv3/TLS 1.2
  Secure CLI management with SSHv1/SSHv2
  IP/Port/MAC based access control
• Management: "Web-based GUI
  CLI through the console port, telnet
  SNMP v1/v2c/v3
  SDM Template
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP AutoInstall
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  Password Recovery
  SNTP
  System Log"
• Environment: "Operating Temperature: 0–45C (32–113F);
  Storage Temperature: -40–70C (-40–158F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing"
• Package Contents: TL-SG3428X Switch
  Power Cord
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 2.6690 kg
• Warranty: Limited Lifetime
• #Hide#POE: No
