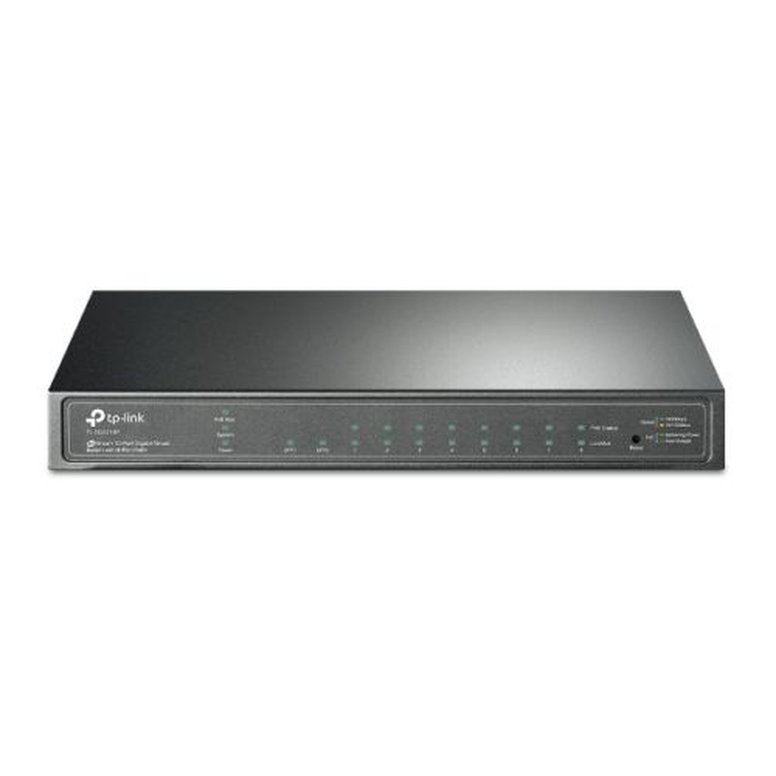

JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

• 61 W PoE Budget: 8x 802.3af/at-compliant PoE+ ports with a total power supply of 61 W*.
• Full Gigabit Ports: 8x gigabit PoE+ ports and 2x gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.

Description

Specification

• Rackmountable: No
• Managed: Smart
• Number of Ports: 10
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: GB SFP
• Interface(s): 8 x 10/100/1000Mbps RJ45
  2 x Gigabit SFP
• PoE Ports (RJ45): "8, up to 30 W"
• Bandwidth: 20 Gbps
• Standards and Protocols: "IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
  IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x"
• Switching Capacity: 16 Gbps
• Power Supply: 12 VDC/1 A External Adapter
  or
  Power from PoE Source
• Dimensions: (WxDxH) 209 x 126 x 26 mm
• Transfer Method: Store and Forward
• Mac Address Table: 8K
• Packet Forwarding Rate: 14.88 Mpps
• Jumbo Frame: 9 KB
• Additional Features: Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
• Quality of Service: 802.1p CoS/DSCP priority
  8 priority queues
  Queue Weight Config
  Priority Schedule Mode
  - SP (Strict Priority)
  - WRR (Weighted Round Robin)
• Layer Features: "L2+ Features:
  16 IP Interfaces
  Static Routing
  DHCP Server
  DHCP Relay
  DHCP L2 Relay

  L2 Features:
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection

  L2 Multicast:
  511 IPv4, IPv6 shared multicast groups
  IGMP Snooping
  Multicast VLAN Registration (MVR)
  Multicast Filtering"
• VLAN: VLAN Group
  802.1Q tag VLAN
  MAC VLAN: 12 Entries
  Protocol VLAN
  GVRP
  Voice VLAN
• Access Control: Support up to 230 entries
  Time-Range
  Time-based ACL
  MAC ACL
  IP ACL
  IPv6 ACL
  Combined ACL
  Rule Operation
  Policy Action
  ACL Rules Binding
  Actions for flows
• Security: AAA
  802.1X
  IP/IPv6-MAC Binding
  IP Source Guard
  IPv6 Source Guard
  DoS Defend
  Static/Dynamic/Permanent Port Security
  Broadcast/Multicast/Unicast Storm Control
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  IP/Port/MAC based access control
• Management: "Omada App
  Centralized Management (OC300/OC200/Omada Software Controller)
  Cloud Access (OC300/OC200/Omada Software Controller)
  Zero-Touch Provisioning
  Web-based GUI
  Command Line Interface (CLI) through telnet
  SNMPv1/v2c/v3
  SNMP Trap/Inform
  RMON (1,2,3,9 groups)
  SDM Template
  DHCP/BOOTP Client
  Dual Image, Dual Configuration"
• .: CPU Monitoring
  Cable Diagnostics
  EEE
  SNTP
  System Log
• Environment: "Operating Temperature: 0C~40C (32F~104F);
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing"
• Package Contents: TL-SG2210P
  Power Adapter
  Installation Guide
  Rubber Feet
• Package Type: Retail
• Package Weight: 1.3100 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
