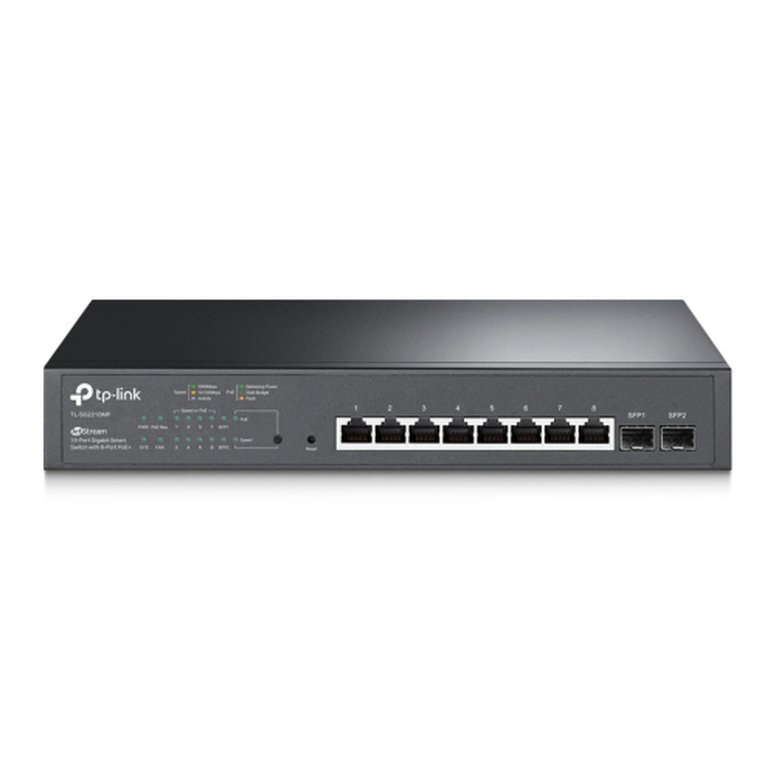

JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+


• 150 W PoE Budget: 8 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
• Full Gigabit Ports: 8 gigabit PoE+ ports and 2 gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Description

Specification

• Rackmountable: Yes
• Managed: Smart
• Number of Ports: 10
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: 2.5G SFP
• Interface(s): "8 x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
  2 x 100/1000 Mbps SFP Slots"
• PoE Ports (RJ45): Standard: 802.3at/af compliant
  PoE+ Ports: 8 Ports
  Power Supply: 150 W
• Standards and Protocols: "IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p"
• Switching Capacity: 20 Gbps
• Power Supply: PoE

  Max Consumption:
  12.2 W (110 V / 60 Hz with no PD connected)
  173.9 W (110 V / 60 Hz with 150 W PD connected)
• Dimensions: 294 x 180 x 44 mm
• Mac Address Table: 8K
• Packet Forwarding Rate: 14.9 Mpps
• Jumbo Frame: 9 KB
• Additional Features: See Overview
• Quality of Service: 802.1p CoS/ DSCP priority
  8 priority queues
  Priority Schedule Mode
  Queue Weight Config
  Bandwidth Control
  Smoother Performance
  Actions for flows
  Storm Control
• Layer Features: DHCP Relay
  DHCP L2 Relay
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  Flow Control
  Mirroring
  Device Link Detect Protocol (DLDP)
  802.1ab LLDP/ LLDP-MED
• VLAN: VLAN Group
  802.1Q tag VLAN
  MAC VLAN
  Protocol VLAN
  GVRP
  Voice VLAN
• Access Control: Support up to 230 entries
  Time-Range
  Time-based ACL
  MAC ACL
  IP ACL
  IPv6 ACL
  Combined ACL
  Rule Operation
  Policy Action
  ACL Rules Binding
• Security: AAA
  802.1X
  IP/IPv6-MAC Binding
  IP Source Gurad
  IPv6 Source Gurad
  DoS Defend
  Static/Dynamic/Permanent Port Security
  Broadcast/Multicast/Unicast Storm Control
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS1.2
  Secure Command Line Interface management with SSHv1/SSHv2
  IP/Port/MAC based access control
• Management: "Omada App
  Centralized Management
  Web-based GUI and CLI management
  SNMPv1/v2c/v3
  SNMP Trap/Inform
  RMON (1,2,3,9 groups)
  SDM Template
  DHCP/BOOTP Client
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  System Log
  802.1ab LLDP/ LLDP-MED"
• Environment: "Operating Temperature: 0C~40C (32F~104F);
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing"
• Package Contents: TL-SG2210MP
  Power Cord
  Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 2.1600 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
