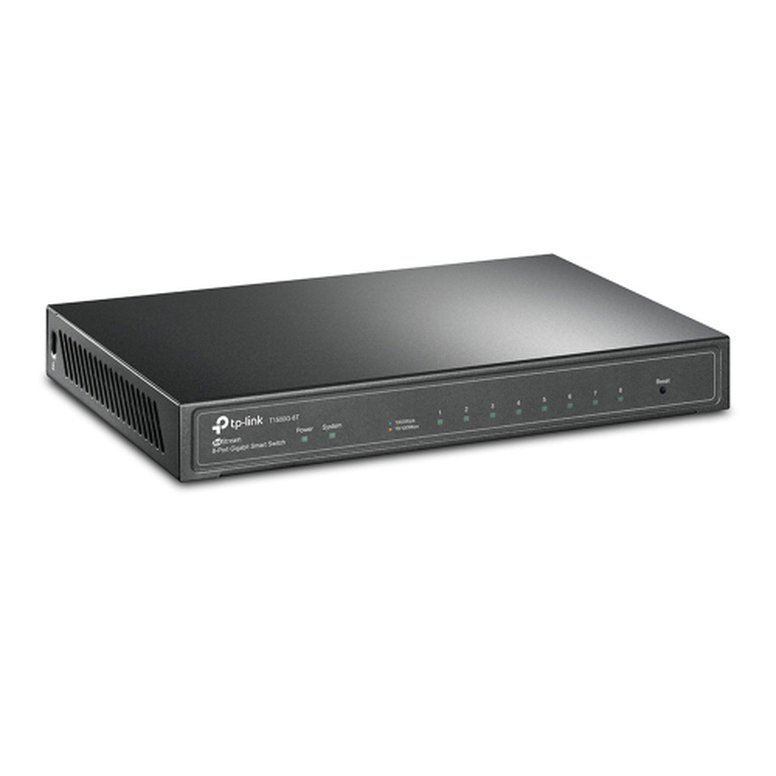

JetStream 8-Port Gigabit Smart Switch


• Full Gigabit Ports: 8x gigabit RJ45 ports provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.

Description

Specification

• Rackmountable: No
• Managed: Smart
• Number of Ports: 8
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 8 x 10/100/1000Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX
• PoE Ports (RJ45): -
• Bandwidth: 16 Gbps
• Standards and Protocols: "IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x"
• Power Supply: 12 VDC/1 A External Adapter or
  Obtain Power from PoE Source
• Dimensions: 209 x 126 x 26 mm
• Mac Address Table: 8K
• Packet Forwarding Rate: 11.9 Mpps
• Jumbo Frame: 9 KB
• Additional Features: See Overview
• Quality of Service: 802.1p CoS/DSCP priority
  8 priority queues
  Priority Schedule Mode
  Queue Weight Config
  Bandwidth Control
  Smoother Performance
  Storm Control
• Layer Features: L2 and L2+:
  16 IP Interfaces
  Static Routing
  DHCP Server
  DHCP Relay
  DHCP L2 Relay
  Static ARP
  Proxy ARP
  Gratuitous ARP
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  Flow Control
  Mirroring
  Device Link Detect Protocol (DLDP)
  802.1ab LLDP/ LLDP-MED
• VLAN: VLAN Group
  Max. 4K VLAN Groups
  802.1Q tag VLAN
  MAC VLAN
  Protocol VLAN
  GVRP
  Voice VLAN
• Security: AAA
  802.1X
  IP/IPv6-MAC Binding
  IP Source Guard
  IPv6 Source Guard
  DoS Defend
  Static/Dynamic/Permanent Port Security
  Broadcast/Multicast/Unicast Storm Control
  Port Isolation
  Secure web management - HTTPS with SSLv3/TLS 1.2
  Secure CLI management with SSHv1/SSHv2
  IP/Port/MAC based access control
• Management: "Web-based GUI
  CLI through telnet
  SNMPv1/v2c/v3
  SNMP Trap/Inform
  RMON (1,2,3,9 groups)
  SDM Template
  DHCP/BOOTP Client
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  SNTP
  System Log"
• Environment: Operating Temperature: 0C~40C (32F~104F)
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: TL-SG2008
  Power Adapter
  Installation Guide
  Rubber Feet
• Package Type: Retail
• Package Weight: 0.9140 kg
• Warranty: Limited Lifetime
• #Hide#POE: No
