TP-LINK

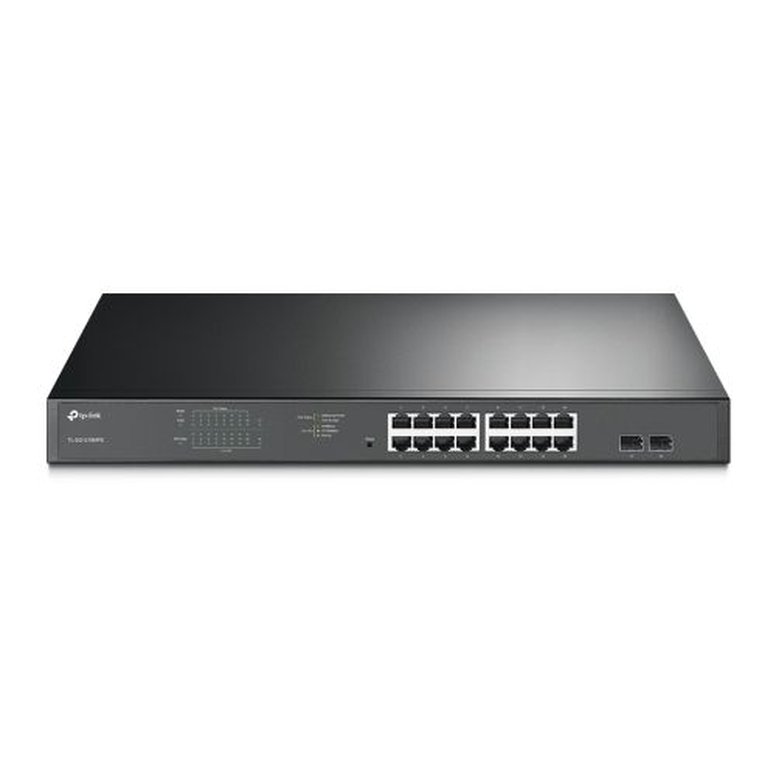

TP-LINK (TL-SG1218MPE) 16-Port Gigabit PoE+ Easy Smart Switch, 2 SFP Ports, Rackmountable
£189.84
TP-LINK (TL-SG1218MPE) 16-Port Gigabit PoE+ Easy Smart Switch, 2 SFP Ports, Rackmountable
TP-LINK
TP-LINK (TL-SG1218MPE) 16-Port Gigabit PoE+ Easy Smart Switch, 2 SFP Ports, Rackmountable
£189.84
Product Details


JetStream 16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots

  • 16 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
  • PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems
  • Port Priority is able to  guarantee the quality of sensitive application like video monitor
  • Intelligent power management can protect the switch from overload
  • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.


Ideal for Surveillance

TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.





Intelligent Power Management

When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.





Advanced Functions for Higher Performance

QoS For Smooth Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.


IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery to ensure a better network experience especially for applications like IPTV.
Product Specification

Description

Specification

  • Rackmountable: Yes
  • Managed: Smart
  • Number of Ports: 16
  • Max RJ45 Transfer Rate: 10/100/1000 Mbps
  • #Hide#Max SFP Transfer Rate: GB SFP
  • Interface(s): 16 x 10/100/1000 Mbps RJ45 Ports
    (Auto Negotiation/Auto MDI/MDIX)
    2 x Gigabit SFP Ports
  • PoE Ports (RJ45): Standard: 802.3at/802.3af compliant
    PoE+ Ports: 16 Ports
    Power Supply: 192W
  • Standards and Protocols: "IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
    IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p"
  • Switching Capacity: 36Gbps
  • Power Supply: "100-240V AC, 50/60 Hz"
  • Dimensions: 440 x 180 x 44 mm
  • Mac Address Table: 8K
  • Port Forwarding: Yes
  • Packet Forwarding Rate: 23.8 Mbps
  • Jumbo Frame: 9 KB
  • Additional Features: See Overview
  • Quality of Service: Support Port-based 802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control
  • VLAN: Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN
  • Management: Web-based GUI
    Easy Smart Configuration Utility
  • Environment: Operating Temperature: 0°C~50°C (32°F~122°F)
    Storage Temperature: -40°C~70°C (-40°F~158°F)
    Operating Humidity: 10% ~ 90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Contents: TL-SG1218MPE
    Power Cord
    Installation Guide
    Resource CD
    Rackmount Kit
    Rubber Feet
  • Package Type: Retail
  • Package Weight: 3.0500 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: Yes
