TP-LINK

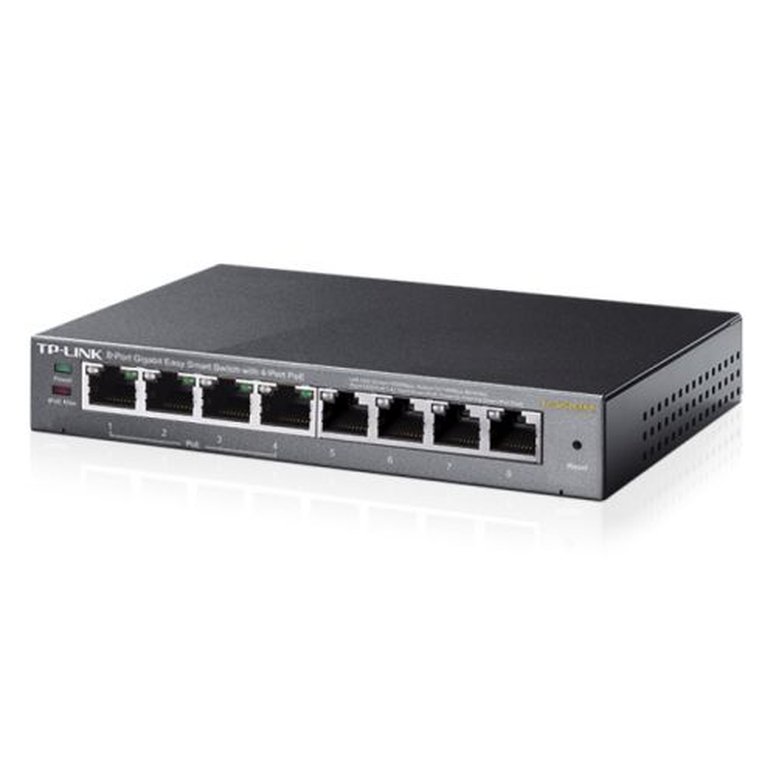

TP-LINK (TL-SG108PE) 8-Port Gigabit Easy Smart Switch with 4-Port PoE+, Steel Case
£68.64
TP-LINK (TL-SG108PE) 8-Port Gigabit Easy Smart Switch with 4-Port PoE+, Steel Case
TP-LINK
TP-LINK (TL-SG108PE) 8-Port Gigabit Easy Smart Switch with 4-Port PoE+, Steel Case
£68.64
Product Details




8-Port Gigabit Easy Smart Switch with 4-Port PoE+


  • Eight 10/100/1000Mbps RJ45 ports
  • Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
  • Supports PoE power up to 64 W for all PoE ports*
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise




Multiple Application Scenarios

The TL-SG108PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.





Dedicated 4 PoE+ Ports (64 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 64 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.





QoS for a Lag-Free Experience

Ensures smooth traffic for latency sensitive applications, such as voice and video





IGMP Snooping for Multicast Optimization

Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.






VLAN for Security

Helps to create network with higher security and better overall performance by dividing network into smaller groups





Making Management Easy

TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.





System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.





Intelligent Power Management to Prevent Power Overload

Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 64 W. This protects the device from power overload operation.





Great Compatibility with PD Detection

Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.





Durable Metal Casing

The interior components of TL-SG108PE are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG108PE delivers switching performance you can depend on.
  • Compact Desktop Design
  • Wall-Mounting
  • Fanless Design



Product Specification

Description

Specification

  • Rackmountable: No
  • Managed: Smart
  • Number of Ports: 8
  • Max RJ45 Transfer Rate: 10/100/1000 Mbps
  • Interface(s): 8 x 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX
  • PoE Ports (RJ45): Standard: 802.3 af/at compliant
    PoE Ports: Port 1- Port 4
    PoE Power Budget: 64W
  • Standards and Protocols: "IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
    IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at"
  • Switching Capacity: 16 Gbps
  • Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)

    Consumption:
    5.41 W (220V/50Hz with no PD connected)
    74.27 W (220V/50Hz with 64 W PD connected)
  • Dimensions: (WxDxH) 158 x 101 x 25 mm
  • Mac Address Table: 4K
  • Packet Forwarding Rate: 11.9 Mpps
  • Jumbo Frame: 16 KB
  • Additional Features: See Overview
  • Quality of Service: Support Port-Based/802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control
  • Layer Features: L2:
    IGMP Snooping V1/V2/V3
    Static Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention
    PoE Auto Recovery
  • VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN
  • Management: Web-based GUI
    Easy Smart Configuration Utility
  • Environment: Operating Temperature: 0–40°C (32–104°F)
    Storage Temperature: -40–70°C (-40–158°F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: TL-SG108PE
    Power Adapter
    Installation Guide
    Rubber Feet
  • Package Type: Retail
  • Package Weight: 0.9100 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: Yes
