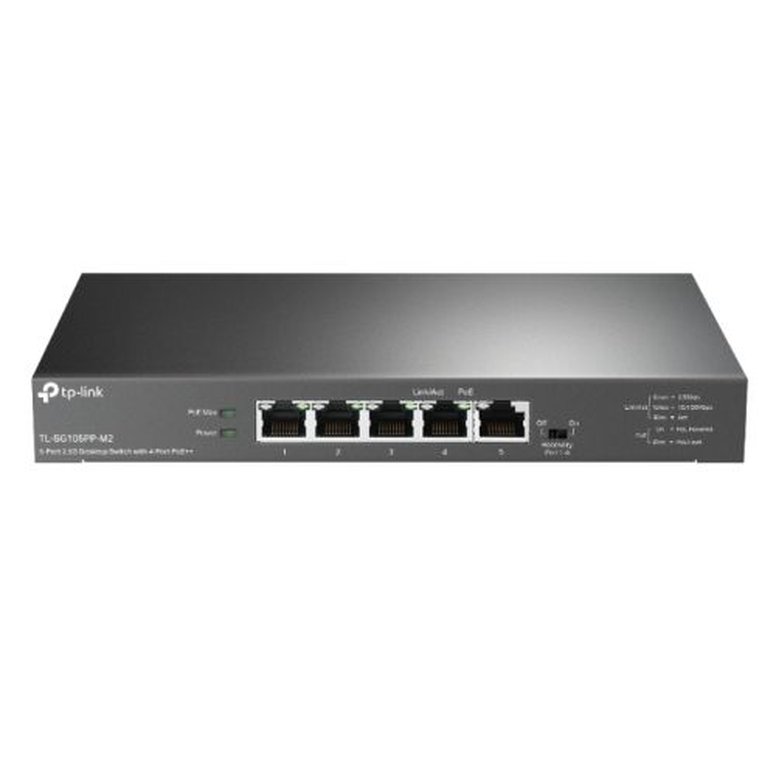

5-Port 2.5G Desktop Switch with 4-Port PoE++

• 5x 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
• With four PoE++ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at/bt type3 compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 60 W for each PoE++ port
• Supports PoE Power up to 123 W for all PoE ports
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play, no configuration and installation required

Description

Specification

• Rackmountable: No
• Managed: No
• Number of Ports: 5
• Max RJ45 Transfer Rate: 2.5 Gbps
• Interface(s): 5 x 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
  AUTO Negotiation
  AUTO MDI/MDIX
• PoE Ports (RJ45): Standard: 802.3 af/at/bt type3 compliant
  PoE++ Ports: Ports 1–4
  Power Supply: 123 W
• Switching Capacity: 25 Gbps
• Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
• Dimensions: (WxDxH) 209 x 126 x 26 mm
• Transfer Method: Store-And-Forward
• Mac Address Table: 4K
• Packet Forwarding Rate: 18.6 Mpps
• Additional Features: Compatible w/ IEEE 802.3af/at/bt type3 Compliant PDs
  Mac Address Auto-Learning And Auto-Aging
  IEEE 802.3x Flow Control
  802.1p/DSCP QoS
  IGMP Snooping
  PoE Auto Recovery (Ports 1-4)
• Environment: Operating Temperature: 0–40°C (32–104°F)
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: TL-SG105PP-M2
  Power Adapter
  Installation Guide
  Rubber Feet
• Package Type: Retail
• Package Weight: 1.7000 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
