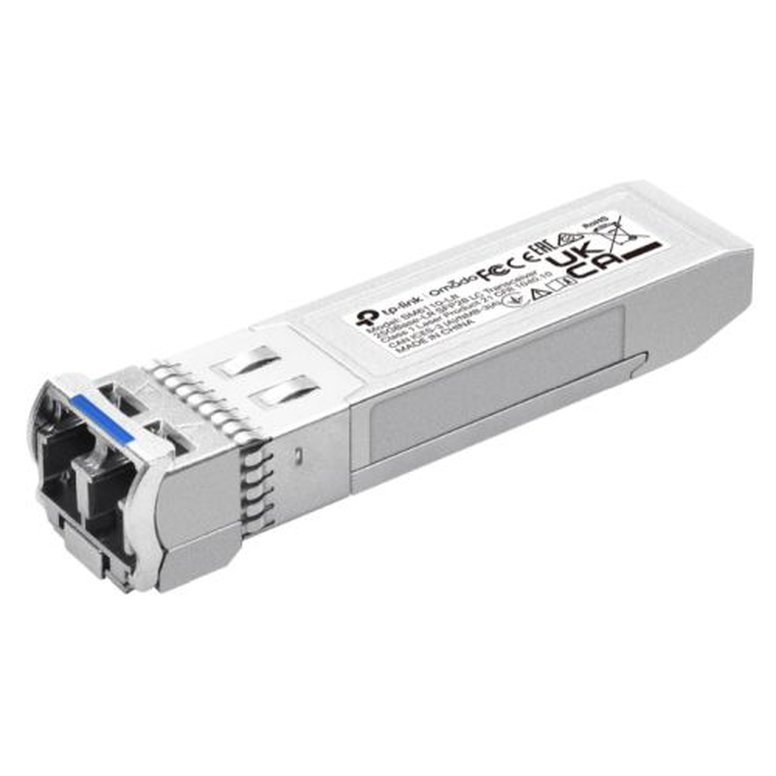

TP-LINK (SM6110-LR) Omada 25GBase-LR SFP28 Single-Mode SFP+/SFP28 LC Transceiver, Hot-Pluggable, DDM Support, 1310 nm

TP-LINK

£79.36

Out of stock

TP-LINK

TP-LINK (SM6110-LR) Omada 25GBase-LR SFP28 Single-Mode SFP+/SFP28 LC Transceiver, Hot-Pluggable, DDM Support, 1310 nm

£79.36

Out of stock

Product Details

TP-LINK Website

Omada 25GBase-LR SFP28 LC Transceiver

Single-mode SFP+/SFP28 LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Low Power Consumption no more than 1.2 W
Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.

What This Product Does

The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Product Specification

Description

Specification

Device Type: SFP+ LC Transceiver
Standards and Protocols: "IEEE 802.3ae, 802.3cc
SFF-8402, SFF-8431, SFF-8432, SFF-8472
eCPRI, CPRI
TCP/IP"
Cable: Single-mode Fiber
Fiber Type: 9/125um Single-Mode
Max. Cable Length: 10 km
Data Rate: Dual Rate 25.78 Gbps and 10.31 Gbps
Wave Length: 1310 nm
Port Type: Duplex LC/UPC
Power Supply: 3.3V
Diagnostic Function: Supports Digital Diagnostic Monitoring (DDM)
Environment: "Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 10% to 90% RH, Non-Condensing
Storage Humidity: 5% to 90% RH, Non-Condensing"
Package Contents: SM6110-LR
Installation Guide
Package Type: Retail
Package Weight: 0.0600 kg
Warranty: 2 Years
