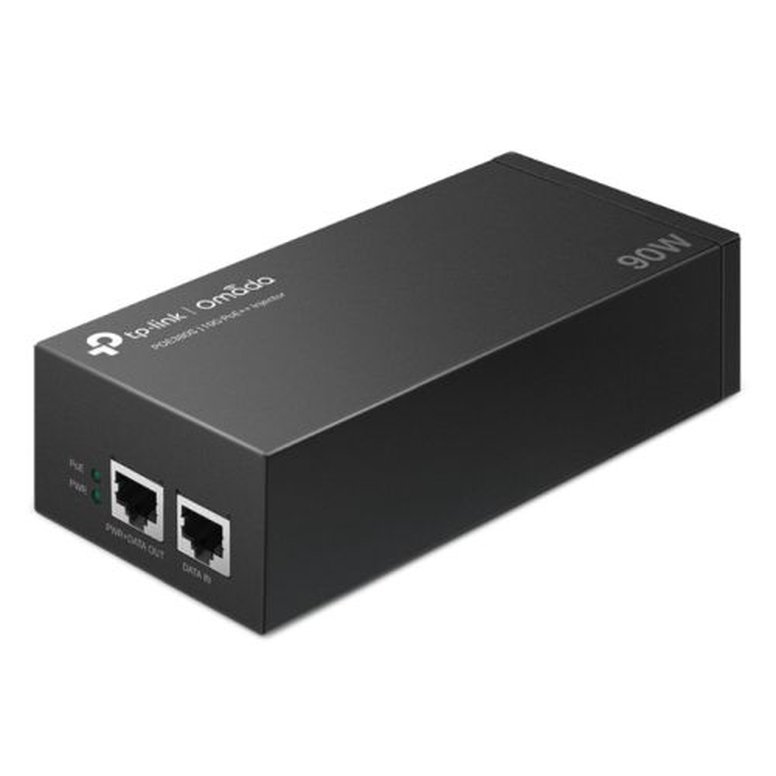

Omada PoE++ Injector

• 2x 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
• Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
• Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
• Automatically determines and supplies the exact power to meet the device's need
• Wall-mounting and desktop design accommodates most installation scenarios
• Plug & Play installation, no configuration required
• Integrated power supply
• Durable metal casing

Description

Specification

• Interface(s): 1 x 10 Gbps RJ45 data-in port
  1 x 10 Gbps RJ45 power+data-out port (Max. 90 W)
  1 x AC socket
• Dimensions: 155 x 70 x 42 mm
• LED Indicator: Power / PoE
• Power Supply: "Input: 100-240 V, 50/60 Hz, 1.6A
  Output: Auto-determine the necessary power requirements (max. 90 W)"
• Basic Function: Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD
  Auto-determine the necessary power requirements
  Wall-mounting and desktop installation
  Plug-and-Play
• Environment: Operating Temperature: 0°C to 45°C (32°F to 113°F)
  Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  Operating Humidity: 10% to 90% non-condensing
  Storage Humidity: 5% to 90% non-condensing
• Package Contents: POE380S
  Power Cord
  Installation Guide
• Package Type: Retail
• Package Weight: 0.8700 kg
• Warranty: 2 Years
