TP-LINK
TP-LINK (MC200CM) Gigabit Multi-Mode Media Converter
£30.83
TP-LINK (MC200CM) Gigabit Multi-Mode Media Converter
TP-LINK
TP-LINK (MC200CM) Gigabit Multi-Mode Media Converter
£30.83
Product Details

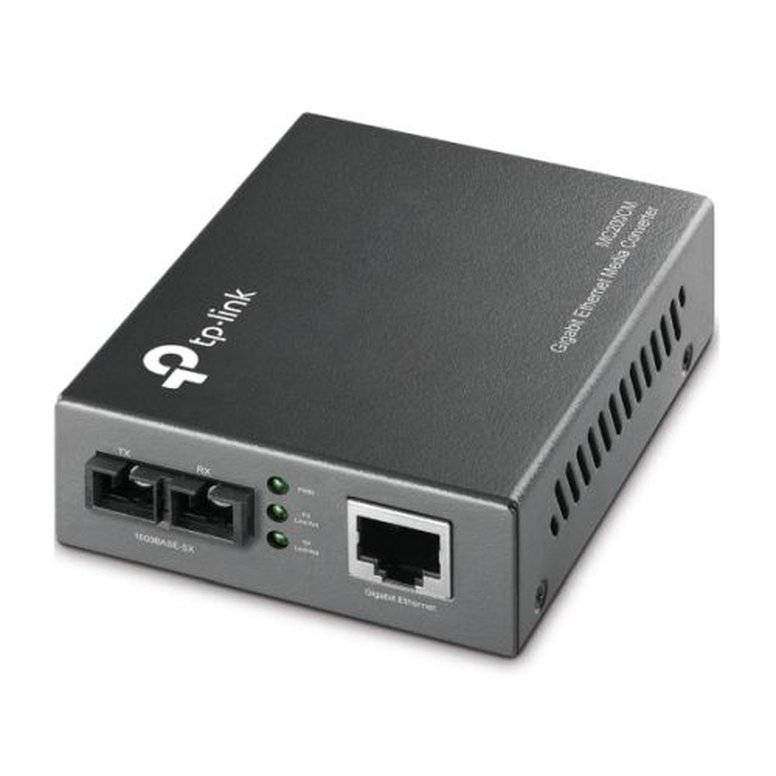

Gigabit Multi-Mode Media Converter


  • 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • Extends fiber distance up to 0.55km



The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.



Product Specification

Description

Specification

  • Type: Multi-Mode Media Converter
  • Enclosure Type: External
  • Basic Functions: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
    Extends fiber distance up to 0.55km using 50/125um fiber
    Extends fiber distance up to 0.22km using 62.5/125um fiber
  • Ports: 1 x 1000M SC/UPC port
    1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)
  • Standards and Protocols: "IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z"
  • Wave Length: 850nm
  • Network Media 10BASE-T: Multi-mode Fiber
  • Network Media 1000BASE-T: "UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100 Ohms STP (maximum 100m)"
  • Network Media 1000BASE-FX: Multi-mode Fiber
  • Transmission Distance: 0.55km
  • LED Indicators: "PWR, Link/Act"
  • Dimensions (WxDxH): 94.5 x 73.0 x 27.0 mm
  • Power Supply: External Power Adapter
  • Environment: Operating Temperature: 0C~40C (32F~104F)
    Storage Temperature: -40C~70C (-40F~158F)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Contents: Media Converter MC200CM
    Power Adapter
    Installation Guide
  • Package Type: Retail
  • Package Weight: 0.5000 kg
  • Warranty: 2 Years
