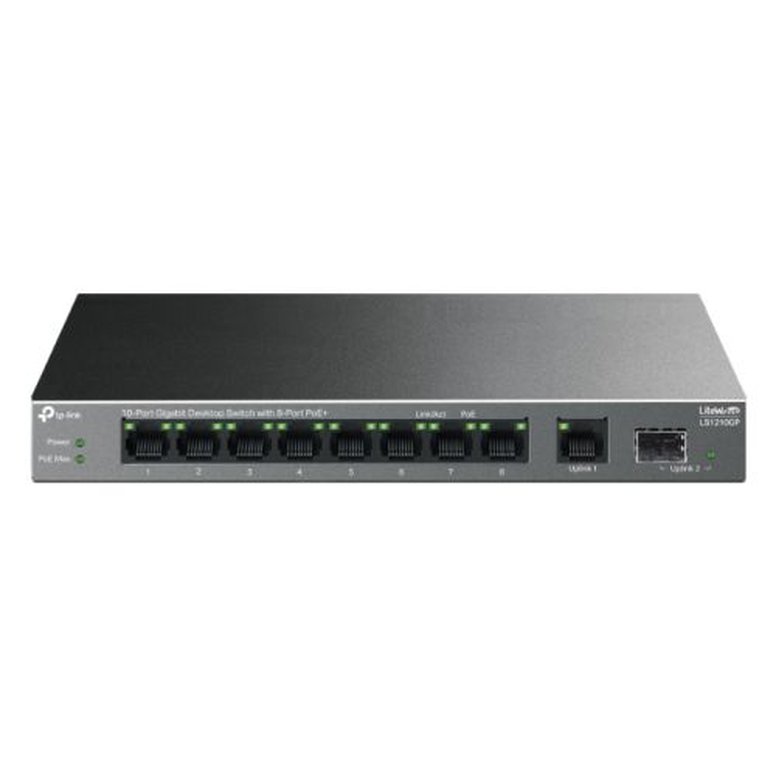

10-Port Gigabit Desktop Switch with 8-Port PoE+


• Full Gigabit Ports: 9x gigabit auto-negotiation RJ45 Ethernet ports and 1x gigabit SFP port provide up to 20 Gbps switching capacity.
• 61 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
• Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
• Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.
• Plug and Play: Simply plug and play for instant connectivity with no configuration required.
• Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
• Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Description

Specification

• Rackmountable: No
• Managed: No
• Number of Ports: 10
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: GB SFP
• Interface(s): 9 x 10/100/1000 Mbps RJ45
  1 x Gigabit SFP Port
• PoE Ports (RJ45): "Standard: 802.3at/802.3af compliant
  PoE Ports: Ports 1–8, up to 30 W PoE output per port
  PoE Power Budget: 61W"
• Switching Capacity: 20 Gbps
• Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)
• Dimensions: 209 x 126 x 26 mm
• Transfer Method: Store-And-Forward
• Mac Address Table: 4K
• Packet Forwarding Rate: 14.88 Mpps
• Jumbo Frame: 16 KB
• Additional Features: "Extend Mode Button (Ports 1–4, Up to 250m PoE power & data transmission)
  Isolation Mode Button (Ports 1–8)
  PoE Auto Recovery Button (Ports 1–8)
  Compatible With IEEE 802.3af/at Compliant PDs
  IEEE802.3x Flow Control
  802.1p/DSCP QoS
  IGMP Snooping
  Green Technology"
• Security: Physical Security Lock
• Environment: Operating Temperature: 0–40°C (32–104°F)
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: LS1210GP
  Power Adapter
  Installation Guide
• Package Type: Retail
• Package Weight: 1.2300 kg
• Warranty: 3 Years
• #Hide#POE: Yes
