TP-LINK

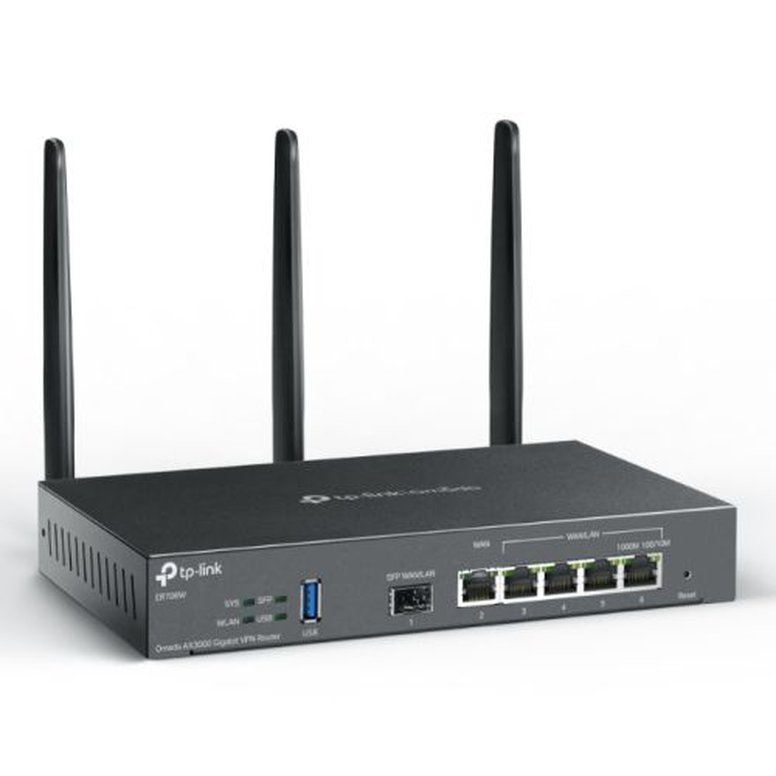

TP-LINK (ER706W) Omada AX3000 Gigabit VPN Wi-Fi Router, Dual Band, 6x GB Ports, USB 3.0, Mesh Technology, Abundant Security Features
£190.48
Out of stock
TP-LINK (ER706W) Omada AX3000 Gigabit VPN Wi-Fi Router, Dual Band, 6x GB Ports, USB 3.0, Mesh Technology, Abundant Security Features
TP-LINK
TP-LINK (ER706W) Omada AX3000 Gigabit VPN Wi-Fi Router, Dual Band, 6x GB Ports, USB 3.0, Mesh Technology, Abundant Security Features
£190.48
Out of stock
Product Details




Omada AX3000 Gigabit VPN Router


  • AX3000 Dual-Band WiFi: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
  • 6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
  • Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.
  • High-Security VPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.
  • Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.




Ubiquitous Connectivity Starts with WiFi 6

ER706W is an enterprise-grade dual-band wireless router. It’s ideal for remote administration that requires high performance due to the revolutionary combination of the latest WiFi 6 technologies, including HE160, OFDMA, 1024 QAM, and more. Simultaneously supporting 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ER706W’s concurrent transmission rate reaches up to 3 Gbps.* Bufferless network experience is at your fingertips.





Up to Five WAN Ports & One USB 3.0 Port for Mobile Broadband

Up to 5x WAN SFP and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. The USB 3.0 port delivers a higher transmission rate for mobile connectivity. Mobile broadband via a 4G/3G modem is also supported for WAN backup by connecting to the USB port.





Professional Hardware Empowers the Wireless Future

The triple external detachable antenna design grants ER706W excellent wireless coverage, reliable signal strength, and higher receiving sensitivity. It’s easier for users to adjust the quantity and angle of antennas to fit various network environments.

ER706W adopts steel material for higher thermal conductivity and heat dissipation, ensuring operation reliability.





Self-Organizing Network with Omada Access Points

ER706W is able to seamlessly connect to Omada access points that support mesh technology,** ideal for large-scale environments. Intelligent self-organization optimizes the best path between ER706W and Omada Access Points while self-healing ensures you stay online even when one AP is disrupted.





High-Security VPN

Pass-through traffic and a variety of VPN protocols, such as IPSec/SSL/Wireguard/PPTP/L2TP VPN, are available on ER706W, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features a built-in hardware engine to boost VPN performance.





Abundant Security Features

Powerful Firewall
Advanced firewall policies protect your network and data.

IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.

Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.

IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec, and PPTP.





Omada SDN—The Smarter Cloud Solution for Business Networking

The path to the future of wireless begins with the Omada Software Defined Networking (SDN) solution. As the gateway that seamlessly integrates into the Omada SDN platform, ER706W allows for remote and centralized management, anywhere, anytime.





Easy Management with the Omada App

Users can configure ER706W in both the standalone and controller modes via the Omada app. Standalone management ensures max convenience. No need to set up additional controllers.

Follow the configuration instructions on the app to get set up in minutes. Multi-function configuration is ready to go, including network status monitoring and client management, all from the comfort of a smartphone or tablet.




Product Specification

Description

Specification

  • Type: VPN Router
  • Connectivity: Wireless
  • Wi-Fi Rating: AX3000
  • Max Single Band Wi-Fi Rate: 2402 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps
  • Bands: Dual Band
  • Signal Rate: 5 GHz: 2402 Mbps
    2.4 GHz: 574 Mbps
  • Interface(s): 1 x Gigabit SFP WAN/LAN Port
    1 x Gigabit WAN Port
    4 x Gigabit LAN/WAN Ports
    1 x USB3.0 (supports USB LTE dongle and USB Storage)
  • Frequency: 2.4 GHz & 5 GHz
  • Button(s): Reset Button
  • Power Supply: 12VDC / 2A Power Adapter
  • Antenna(s): 2.4 GHz: 2x 3 dBi dual-band detachable antennas
    5 GHz: 3x 4.5 dBi dual-band detachable antennas
  • Dimensions: (WxDxH) 226 x 131 x 35 mm (Antenna dimensions are not
    included)
  • Wireless Functions: Seamless Roaming
    Mesh (with EAP that supports Mesh)
    OFDMA
    Beamforming
    MU-MIMO
    Guest Network
  • Security: "WiFi Encryption:
    WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

    Filtering:
    Web Group Filtering
    URL Filtering
    Web Security

    ARP Inspection:
    Sending GARP Packets
    ARP Scanning
    IP-MAC Binding

    Attack Defense:
    TCP/UDP/ICMP Flood Defense
    Block TCP Scan (Stealth FIN/Xmas/Null)
    Block Ping from WAN

    Access Control:
    Source/Destination IP Based Access Control"
  • DHCP: DHCP Server
    DHCPv6 PD Server (only in Standalone Mode)
    DHCP Options Customization
    DHCP Address Reservation
    Multi-IP Interfaces
    Multi-Net DHCP
  • Port/NAT Forwarding: "66 Byte Packet forwarding rate:
    1,453,489 pps / 1,453,488 pps

    1,518 Byte Packet forwarding rate:
    81,274 pps / 91,275 pps"
  • VPN Support: "SSL VPN:
    50 Tunnels

    IPsec VPN:
    100 IPSec VPN Tunnels
    LAN-to-LAN, Client-to-LAN
    Main, Aggressive Negotiation Mode
    DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
    IPsec Failover
    IKE v1/v2
    MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
    NAT Traversal (NAT-T)
    Dead Peer Detection (DPD)
    Perfect Forward Secrecy (PFS)
    "
  • .: PPTP VPN:
    PPTP VPN Server
    PPTP VPN Client (10)
    50 Tunnels
    PPTP with MPPE Encryption

    L2TP VPN:
    L2TP VPN Server
    L2TP VPN Client (10)
    50 Tunnels
    L2TP over IPSec

    OpenVPN:
    OpenVPN Server
    OpenVPN Client (5)
    55 OpenVPN Tunnels
    ""Certificate + Account"" Mode
    Full Mode
  • Management: Omada App
    Centralized Management
    Cloud Access
    Zero-Touch Provisioning

    Maintenance:
    Web Management Interface
    Remote Management
    Export & Import Configuration
    SNMP v1/v2c/v3
    Diagnostics (Ping & Traceroute)
    NTP Synchronize
    Port Mirroring
    CLI (in Standalone Mode)
    Syslog Support

    Features:
    Automatic Device Discovery
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule
    Captive Portal Configuration
  • Dynamic DNS: "Dyndns, No-IP, Peanuthull, Comexe, DDNS
    Customization"
  • USB Application: Supports USB LTE dongle and USB Storage
  • Additional Features: "ACL:
    IP/Port/Protocol/Domain Name Filtering

    Advanced Routing:
    Static & Policy Routing
    Routing
    RIP
    OSPF

    Bandwidth Control:
    IP-Based Bandwidth Control

    Load Balance:
    Intelligent Load Balance
    Application Optimized Routing
    Link Backup(Timing, Failover)
    Online Detection

    NAT:
    One-to-One NAT
    Multi-Net NAT
    Virtual Server
    Port Triggering
    NAT-DMZ
    FTP/H.323/SIP/IPSec/PPTP ALG
    UPnP"
  • Environment: Operating Temperature: 0C°~40°C (32°F ~104°F)
    Storage Temperature: -40°C to 70°C (-40 °F to 158 °F)
    Operating Humidity: 10% to 90% non-condensing
    Storage Humidity: 5% to 90% non-condensing
  • Package Contents: ER706W
    Power Adapter
    Quick Installation Guide
  • Package Type: Retail
  • Package Weight: 1.7000 kg
  • Warranty: Limited Lifetime
  • #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
  • #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
