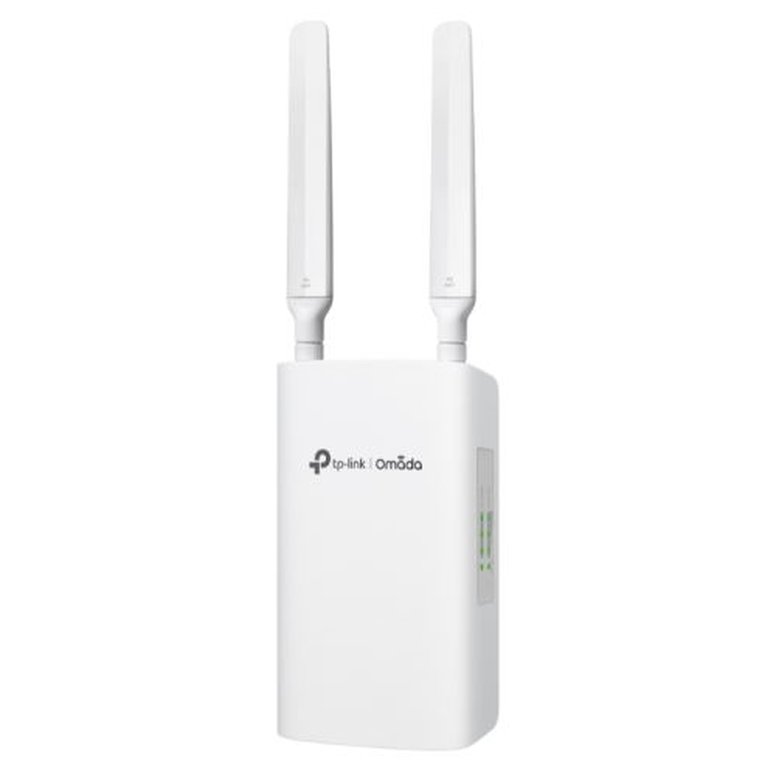

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway

• 4G+ Cat6 up to 300 Mbps
• AX3000 Wi-Fi 6 with 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz
• 3 x Gigabit WAN/LAN Ports (2 x PoE Out, 1 x PoE In)
• 1 x Nano SIM Card Slot
• 802.3at/bt PoE or 12V/2A DC Power Supply
• 4G and Ethernet WAN Auto Backup with Load Balancing
• IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN
• Centralized Management
• IP55 Weatherproofing

Description

Specification

• Type: 4G Router
• Connectivity: Wireless
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Bands: Dual Band
• Signal Rate: 4G+ Cat6 up to 300 Mbps
  2.4 GHz: up to 574 Mbps
  5 GHz: up to 2402 Mbps
• Interface(s): "3 x Gigabit WAN/LAN (2x PoE Out, 1x PoE In)
  Nano Sim Card Slot"
• Frequency: Wi-Fi:
  2.4 GHz and 5 GHz

  4G:
  Downlink: 300 Mbps
  Uplink: 50 Mbps
• Button(s): Reset Button
• Power Supply: "802.3at/bt PoE; 12VDC / 2A Power Adapter"
• Antenna(s): Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in
  LTE: Two 4.0dBi omnidirectional detachable antennas
• Dimensions: 174.8 x 100.4 x 38.7 mm (Antenna dimensions are not included)
• Wireless Functions: "Seamless Roaming
  Mesh (with EAP that supports Mesh)
  OFDMA
  Beamforming
  MU-MIMO
  Rate Limit: Based on SSID/Client
  Airtime Fairness
  Multiple SSIDs: 16 in total (8 per radio)
  Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
  Guest Network"
• Security: "DPI:
  Application control via DPI / Updated app library

  Access Control:
  Source/Destination IP Based Access Control

  Filtering:
  Web Group Filtering, URL Filtering, Web Security

  ARP Inspection:
  Sending GARP Packets, ARP Scanning, IP-MAC Binding

  Attack Defense:
  TCP/UDP/ICMP Flood Defense
  Block TCP Scan (Stealth FIN/Xmas/Null)
  Block Ping from WAN"
• DHCP: DHCP Server
  DHCPv6 PD Server (only in Standalone Mode)
  DHCP Options Customization
  DHCP Address Reservation
  Multi-IP Interfaces
  Multi-Net DHCP
• VPN Support: "GRE:
  Only in Standalone Mode

  SSL VPN:
  50 Tunnels

  IPsec VPN:
  100 IPSec VPN Tunnels
  LAN-to-LAN, Client-to-LAN
  Main, Aggressive Negotiation Mode
  DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  IPsec Failover
  IKE v1/v2
  MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
  NAT Traversal (NAT-T)
  Dead Peer Detection (DPD)
  Perfect Forward Secrecy (PFS)

  "
• .: PPTP VPN:
  PPTP VPN Server
  PPTP VPN Client (10)
  50 Tunnels
  PPTP with MPPE Encryption

  L2TP VPN:
  L2TP VPN Server
  L2TP VPN Client (10)
  50 Tunnels
  L2TP over IPSec

  OpenVPN:
  OpenVPN Server
  OpenVPN Client (5)
  55 OpenVPN Tunnels
  ""Certificate + Account"" Mode
  Full Mode

  WireGuard VPN:
  20 Tunnels
• Management: "Omada App: Yes

  Centralized Management:
  Omada Cloud Essentials
  Omada Cloud-Based Controller
  Omada Hardware Controller (OC300)
  Omada Hardware Controller (OC200)
  Omada Software Controller

  Cloud Access: Yes

  Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

  "
• .: Maintenance:
  Web Management Interface
  Remote Management
  Export & Import Configuration
  SNMP v1/v2c/v3
  Diagnostics (Ping & Traceroute)
  NTP Synchronize
  Port Mirroring
  CLI (only in Standalone Mode)
  Syslog Support

  Management Features:
  Automatic Device Discovery
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  Captive Portal Configuration
• Dynamic DNS: "Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization"
• USB Application: -
• Additional Features: "Flash: 256 MB NAND
  DRAM: 512 MB DDR4
  LED: 4G Signal, WLAN, WAN/LAN, SYS
  Mounting: Pole/Wall-Mounting
  SMS: Receive / Send SMS
  VLAN: 802.1Q VLAN
  IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
  ACL: IP/Port/Protocol/Domain Name Filtering
  Bandwidth Control: IP-Based Bandwidth Control
  Session Limit: IP-Based Session Limit
  IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

  "
• .: "Advanced Routing:
  Static Routing
  Policy Routing
  RIP
  OSPF

  Load Balance:
  Intelligent Load Balance
  Application Optimized Routing
  Link Backup(Timing, Failover)
  Online Detection

  NAT:
  One-to-One NAT
  Multi-Net NAT
  Virtual Server
  Port Triggering
  NAT-DMZ
  FTP/H.323/SIP/IPSec/PPTP ALG
  UPnP"
• Environment: Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
  Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
  Operating Humidity: 5% to 95% non-condensing
  Storage Humidity: 5% to 90% non-condensing
• Package Contents: ER703WP-4G-Outdoor
  Mounting Kits
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.6600 kg
• Warranty: Limited Lifetime
• #Hide#Wireless Standard: Wi-Fi 6/6E (802.11ax)
