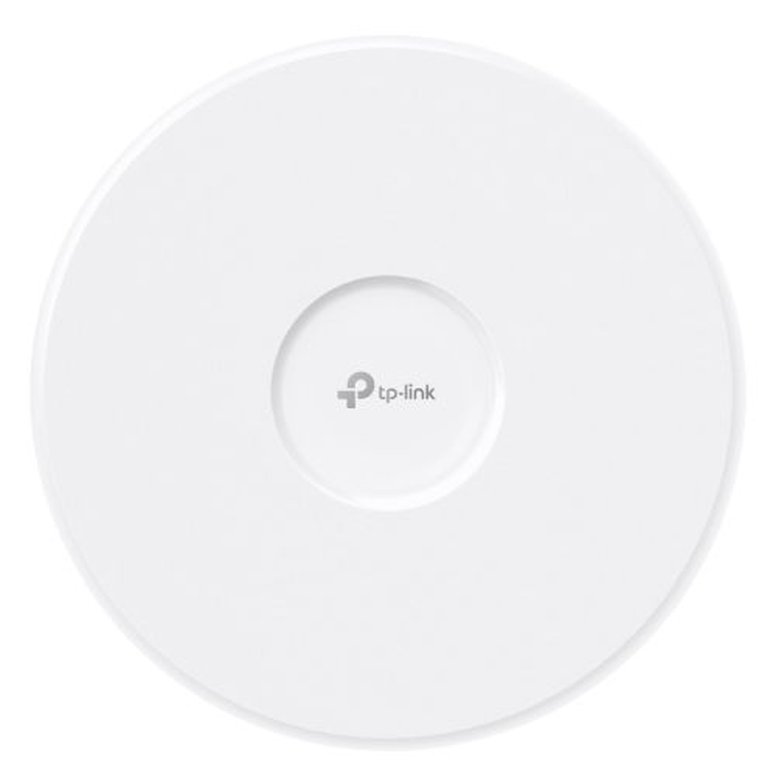

TP-LINK (EAP773) BE9300 Tri-Band Ceiling Mount Wi-Fi 7 Access Point, PoE++, 10GB Port, Omada Mesh, MLO, Multi-RUs

£253.96

TP-LINK

TP-LINK (EAP773) BE9300 Tri-Band Ceiling Mount Wi-Fi 7 Access Point, PoE++, 10GB Port, Omada Mesh, MLO, Multi-RUs

£253.96

Add to Cart

Product Details

TP-LINK Website

BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
1x 10G Port: Unlock the full potential of Wi-Fi 7.
Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.
Advanced Functions: Supports centralized management, mesh, and AI roaming.
10G PoE++ Port: Boosts overall throughput and offers flexible deployment with a 10 Gbps PoE++ port.
Auto Channel Selection and Power Adjustment: Boost WiFi performance and minimize interference for your network.
Intelligent Power Management: Offers more reliable network operation for your business.
Omada Mesh Technology: More flexible and convenient wireless deployment.
Ultra-Thin Design: 220 x 220 x 32.5 mm elegant design brings more flexibility.

Supersized Throughput for Better Experiences

With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds. ‡ Making full use of these new resources, the throughout of EAP773 reaches up to 11 Gbps.

Higher Capacity for Increased Traffic Demands

WiFi 7 supports 4096-QAM with 12 bits rather than WiFi 6’s 10 bits. The updated modulation method enables each signal to carry more dense amounts of data. Equipped with advanced 4096-QAM, EAP773 empowers your business to meet ever-growing traffic demands from high-bandwidth applications, such as remote offices, HD video conferencing, and cloud-based applications.

Lower Latency for Boosted Network Reliability

EAP773 allows network devices to communicate across multiple bands and channels simultaneously thanks to Multi-Link Operation (MLO). Additionally, Multi Resource Units (Multi-RUs) open up previously wasted channels. More bands can be used concurrently to share redundant data, and the interference will be blocked to improve reliability.

Optimized Wired Performance with 10G PoE++ Port

With a 10 Gigabit Ethernet Port, EAP773 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment in large-scale scenes such as offices, schools, and hotels.

Auto Channel Selection and Power Adjustment

Provide powerful wireless performance while greatly reducing Wi-Fi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Experience total control at your fingertips.

Learn more about Omada SDN >>

Boosted Network Security

Secure Guest Network with up to 24 SSIDs

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Your Business with SMS Login

Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks

With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Rogue AP Detection

Detect and mitigate rogue access points to protect your business network from security holes or other threats anywhere, anytime.

Ultra-Thin Design for Flexible Deployment

The overall design of EAP773 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

Product Specification

Description

Specification

Primary Function: Access Point
#Hide#Access Point Mode: Yes (Access Point Mode)
#Hide#Wireless Standard: 802.11be (Wi-Fi 7)
Bands: Tri Band
Wi-Fi Rating: BE9300
Max Single Band Wi-Fi Rate: 5760 Mbps
Max Wired Transfer Rate: 10 Gbps
Interface(s): 1 x 10G Ethernet Port
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
Antenna(s): 2.4 GHz: 2x 3.0 dBi
5 GHz: 2x 3.0 dBi
6 GHz: 2x 3.0 dBi
Button(s): Reset
Power Supply: 802.3bt PoE or 12V/2.5A DC
NOTE: Power Adapter is NOT included.
Power Consumption: "25.94 W (802.3bt, full functionality)
22.57 W (12/2.5A, full functionality)
23.4 W (802.3at decrease 6GHz Power)
10.1 W (802.3af, radio off, only main chip and LAN working)"
Dimensions: 220 x 220 x 32.5 mm
Weatherproof: No
Frequency: 2.4GHz: Up to 574 Mbps
5GHz: Up to 4320 Mbps
6GHz: Up to 5760 Mbps
Wireless Functions: MLO
4K-QAM
MU-MIMO
HE320
Mesh
BSS Coloring
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:24(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication
Security: "Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
Management: "Omada App
Centralized Management
Omada Hardware Controller (OC200 & OC300)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access - Requires controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog
Web-based Management"
Additional Features: See Overview
Environment: Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents: EAP773
Installation Guide
Ceiling/Wall Mounting Kits
NOTE: Power Adapter is NOT included.
Package Type: Retail
Package Weight: 1.5500 kg
Warranty: Limited Lifetime
