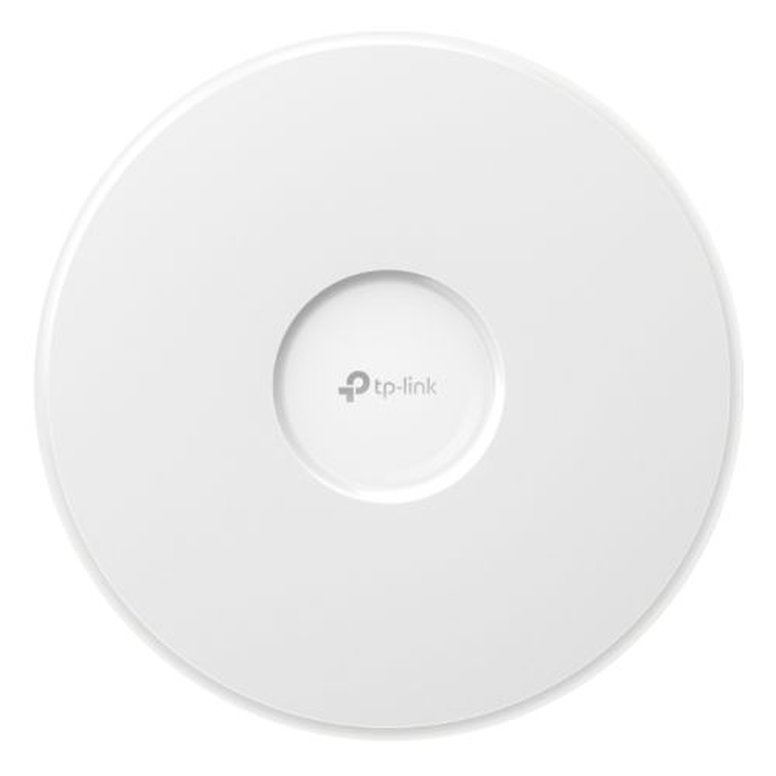

BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

• BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).
• A clear 6 GHz band brings cleaner and wider band resources.
• 1x 2.5G Port unlocks the full potential of Wi-Fi 7.
• 320 MHz bandwidth enables many more simultaneous transmissions.
• Multi-Link Operation and Multi-RUs ensure the high performance of your network.
• Advanced Functions: Centralized management, mesh, and AI roaming

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11be (Wi-Fi 7)
• Bands: Tri Band
• Wi-Fi Rating: BE9300
• Max Single Band Wi-Fi Rate: 5760 Mbps
• Max Wired Transfer Rate: 2.5 Gbps
• Interface(s): 1 x 2.5G Ethernet Port
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Antenna(s): 2.4 GHz: 2x 4.0 dBi
  5 GHz: 2x 5.0 dBi
  6 GHz: 2x 5.0 dBi
• Button(s): Reset
• Power Supply: 802.3at PoE or 12V/2.5A DC
  NOTE: Power Adapter is NOT included.
• Power Consumption: 24.05 W (For PoE)
  20.92 W (For DC)
• Dimensions: 220 x 220 x 32.5 mm
• Weatherproof: No
• Frequency: 2.4GHz: Up to 574 Mbps
  5GHz: Up to 2880 Mbps
  6GHz: Up to 5760 Mbps
• Wireless Functions: MLO
  4K-QAM
  Seamless Roaming(802.11k/v/r)
  MU-MIMO
  EHT320
  Mesh
  BSS Coloring
  OFDMA
  Load Balance
  Band Steering
  Beamforming
  Airtime Fairness
  Multiple SSIDS:24(8 on each band)
  Wireless Schedule
  Reboot Schedule
  QoS(WMM)
  Rate Limit
  Static IP/Dynamic IP
  RADIUS Accounting
  MAC Authentication
• Security: "Captive Portal Authentication
  Access Control
  Maximum number of MAC Filter: 4,000
  Wireless Isolation Between Clients
  VLAN
  Rogue AP Detection
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
• Management: "Omada App
  Centralized Management
  Omada Hardware Controller (OC200 & OC300)
  Omada Software Controller
  Omada Cloud-Based Controller
  Cloud Access - Requires controller
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP: v1, v2c, v3
  System Logging Local/Remote Syslog
  Web-based Management"
• Additional Features: See Overview
• Environment: Operating Temperature: 0–40 °C (32–104 °F)
  Storage Temperature: -40–70 °C (-40–158 °F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: EAP772
  Installation Guide
  Ceiling/Wall Mounting Kit
  Note: Power Adapter is NOT included.
• Package Type: Retail
• Package Weight: 1.3400 kg
• Warranty: Limited Lifetime
