TP-LINK (EAP673) AX5400

TP-LINK

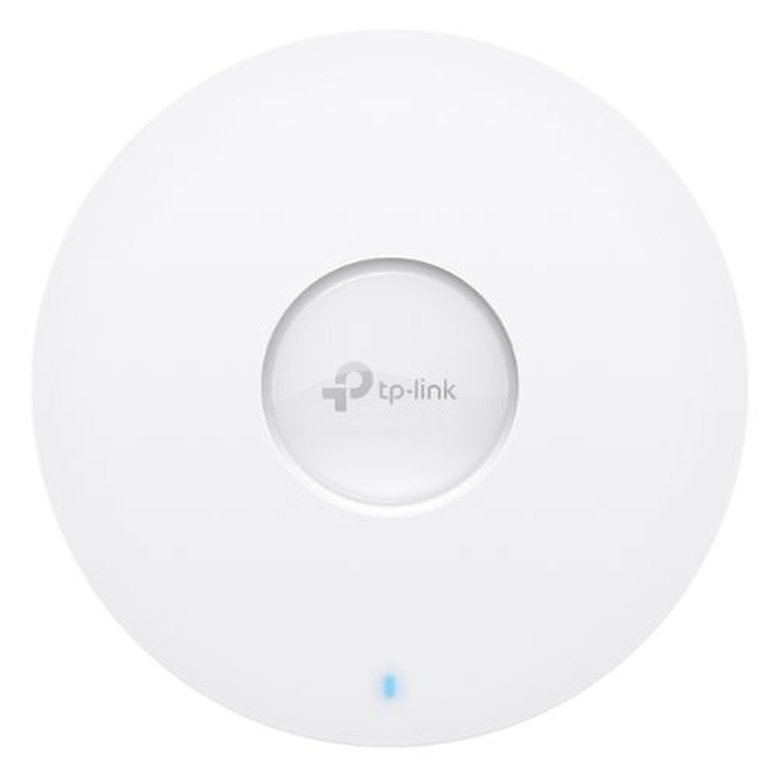

TP-LINK (EAP673) AX5400 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, 2.5G LAN

£140.48

TP-LINK

TP-LINK (EAP673) AX5400 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, 2.5G LAN

£140.48

Add to Cart

Product Details

TP-LINK Website

AX5400 Ceiling Mount WiFi 6 Access Point

Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz).
Integrated into Omada SDN, supporting centralized cloud Management, ZTP, and more.
160 MHz Channel double the data at peak transmission times on a single stream.
Advanced features: Supports seamless roaming§,Omada Mesh, and more.
Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations.
2.5GE Wired Performance: Boosts overall throughput with a 2.5 Gbps Ethernet port
Auto Channel Selection and Power Adjustment: Optimize overall performance by reducing WiFi interference
Omada Mesh Technology: More flexible and convenient wireless deployment
Seamless Roaming: Uninterrupted streaming when moving between APs

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance

Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming

Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Boosted Network Security and Efficiency Security

Secure Guest Network with Up to 16 SSIDs

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Business with SMS Login

Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks

With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Band Steering

Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance

Ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness

Increases average network throughput in heavily congested environments

Product Specification

Description

Specification

Primary Function: Access Point
#Hide#Access Point Mode: Yes (Access Point Mode)
#Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
Bands: Dual Band
Wi-Fi Rating: AX5400
Max Single Band Wi-Fi Rate: 4804 Mbps
Max Wired Transfer Rate: 2.5 Gbps
Interface(s): 1 x 2.5 Gigabit Ethernet (RJ-45) Port
Supports IEEE802.3at PoE
Antenna(s): Internal Omni:
2.4 GHz: 2x 4 dBi
5 GHz: 4x 5 dBi
Button(s): Reset
Power Supply: 802.3at PoE
12 V / 2 A DC (Power adapter not included)
Power Consumption: 20.8 W
Weatherproof: No
Frequency: 5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 574 Mbps
EIRP: "<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)"
Wireless Functions: "1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client"
Security: "Captive Portal Authentication§
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
Management: "Omada App
Centralized Management
Omada Hardware Controller (OC200 & OC300)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access - Requires controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog
Web-based Management
SSH
Web-based Management: HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN
Zero-Touch Provisioning - Requires Cloud-Based Controller"
Environment: Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents: EAP673
Ceiling/Wall Mounting Kits
Installation Guide
Package Type: Retail
Package Weight: 1.3300 kg
Warranty: Limited Lifetime
