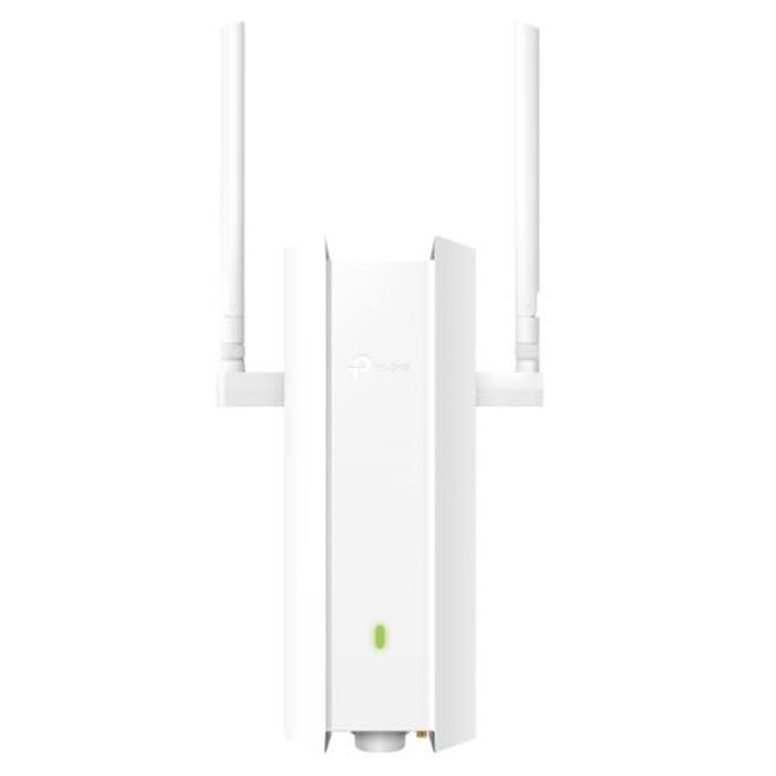

AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

• Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.
• Supports WiFi 6 technologies, such as 1024-QAM, OFDMA, etc.
• High-density connectivity up to 1,000+ clients.
• Long-range coverage with the high-power amplifier and 2x detachable antennas.
• IP67 weatherproof enclosure for various outdoor environments.
• Advanced Functions: Centralized management, Omada mesh, and seamless roaming.
• PoE+ Powered: Supports both 802.3at PoE (adapter not included).

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
• Bands: Dual Band
• Wi-Fi Rating: AX1800
• Max Single Band Wi-Fi Rate: 1201 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 1 x Gigabit Ethernet Port
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
• Antenna(s): "2 x External Dual-Band Omni Antennas
  2.4 GHz: 3.0 dBi;
  5 GHz: 5.0 dBi"
• Protection: 6KV Lightning Protection
• Button(s): Reset
• Power Supply: 802.3at PoE
  48V Passive PoE
  Note: PoE adapter is not included.
• Power Consumption: 12.5W (802.3at PoE or Passive PoE)
• Dimensions: 182.2 x 57 x 281 mm (excludes detachable external antennas)
• Weatherproof: Yes (Weatherproof)
• Frequency: 2.4 GHz: Up to 574 Mbps
  5 GHz: Up to 1201 Mbps
• EIRP: "CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP)"
• Wireless Functions: Mesh
  Seamless Roaming(802.11k/v/r)
  Automatic Channel Assignment
  Load Balance
  Band Steering
  Beamforming
  Airtime Fairness
  Multiple SSIDs:16 (8 for each band)
  MU-MIMO (2x2 MU-MIMO DL)
  Wireless Statistics
  Wireless Schedule
  Reboot Schedule
  RADIUS Accounting
  MAC Authentication
  Static IP/Dynamic IP
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  SSID to VLAN Mapping
  Rogue AP Detection
  802.1X Support
  WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
• Wireless Range: Long-range coverage
• Management: "Omada App
  Restore & Backup
  Firmware update via Web
  NTP
  Centralized Management (hardware & software)
  Cloud Access
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP v1, v2c, v3
  SSH
  Web-based Management"
• Additional Features: Pole/Wall Mounting (Kits included)
  Bluetooth V5.2
  Weatherproof Enclosure: IP67
• Environment: Operating Temperature: -30–70°C (-22–158°F)
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: EAP625-Outdoor HD
  2 x Detachable Antennas
  Installation Guide
  Mounting Kit
  Waterproof Kit
• Package Type: Retail
• Package Weight: 1.3100 kg
• Warranty: 2 Years
