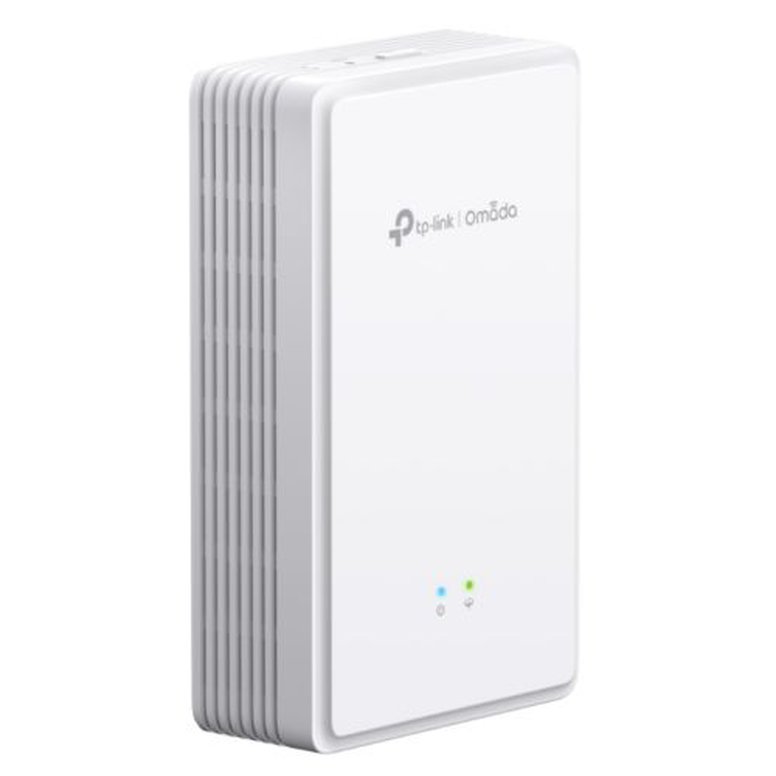

Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point

• Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
• 1X GPON Port for High-Speed and Ultra-Range Access
• Ultra-Broadband WiFi 6: MU-MIMO,  Seamless Roaming
• One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
• VoIP Calls:  Support multiple VolP accounts and various call features, exceeding traditional landlines
• Easy Use: One-Click Pairing and Automatic Adoption
• Smart O&M: PPSK and Multiple Portals
• Centralized Management: Integrates with the Unified Optical Solution
• Wall-Mounted, AC Powered

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
• Bands: Dual Band
• Wi-Fi Rating: AX1800
• Max Single Band Wi-Fi Rate: 1201 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 1 x GPON Port
  1 x FXS Port
  2 x Gigabit RJ45 Ports
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
• Antenna(s): Internal Omni
  2.4 GHz: 2x 4 dBi
  5 GHz: 2x 6.5 dBi
• Button(s): Reset
  LED
• Power Supply: "100–240V~ 50/60Hz, 0.5A"
• Power Consumption: 12.2W
• Dimensions: 143 x 86 x 37.6 mm
• Weatherproof: No
• Frequency: 2.4 GHz and 5 GHz
• Wireless Functions: "2x2 (2.4G & 5G) MU-MIMO
  HE80 (80 MHz Bandwidth)
  OFDMA
  Seamless Roaming
  Multiple SSIDs (16 SSIDs, 8 on each band)
  Enable/Disable SSID Broadcast
  Enable/Disable Wireless Radio
  Guest Network
  Automatic Channel Assignment
  Beamforming"
• .: Rate Limit
  Band Steering
  Load Balance
  Airtime Fairness
  Transmit Power Control (Adjust Transmit Power on dBm)
  QoS (WMM)
  RADIUS Accounting
  MAC Authentication
  Reboot Schedule
  Wireless Schedule and Statistics
  Static IP/Dynamic IP
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  VLAN
  Rogue AP Detection
  802.1X Support
  WPA-Personal/Enterprise, WPA2 & WPA3 Personal/Enterprise"
• Quality of Service: QoS (WMM)
• Management: "Omada App
  Centralized Management - Omada Controllers
  Cloud Access - Requires Omada OC300, OC200, Cloud or Software Controller
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP v1, v2c, v3
  System Log
  SSH
  Web-based Management
  Zero-Touch Provisioning - Requires Omada Cloud-Based Controller"
• Additional Features: See Overview
• Environment: Operating Temperature: 0–40 °C (32–104 °F)
  Storage Temperature: -40–70 °C (-40–158 °F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: EAP615GP-Wall
  Wall Mounting Kit
  Installation Guide
• Package Type: Retail
• Package Weight: 0.5600 kg
• Warranty: Limited Lifetime
