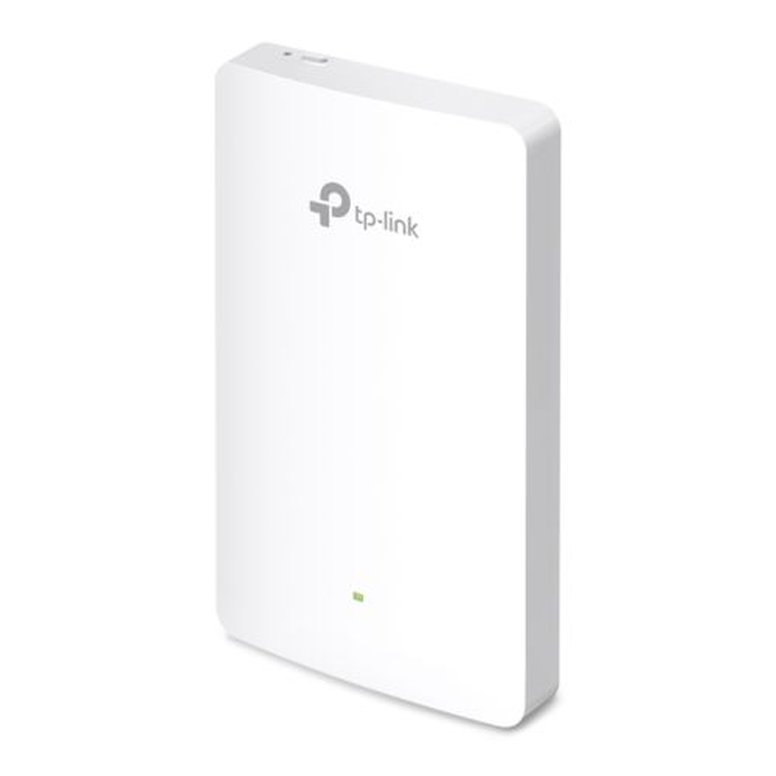

AX1800 Wall Plate WiFi 6 Access Point

• Superior WiFi 6 Speeds - Delivers dual-band speeds of up to 18 Gbps powered by the latest WiFi 6 technology
• Complete In-Room WiFi Coverage - Guarantees strong signals and corner-to-corner WiFi coverage in each room
• Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag
• Full Gigabit Ports - Connect multiple devices with four gigabit ports and one downlink port offering PoE pass-through
• Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
• Bands: Dual Band
• Wi-Fi Rating: AX1800
• Max Single Band Wi-Fi Rate: 1201 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): Uplink: 1 x 10/100/1000 Mbps Ethernet Port

  Downlink: 3 x 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W)
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Antenna(s): 2 Dual-Band Antennas:
  2.4 GHz: 2 x 3 dBi
  5 GHz: 2 x 4 dBi
• Button(s): Reset
• Power Supply: 802.3af/at PoE

• Power Consumption: "10W (802.3at PoE, PoE Out off)"
• Dimensions: 143 x 86 x 20 mm
• Weatherproof: No
• Frequency: 2.4 GHz and 5 GHz
• Wireless Functions: 16 SSIDs (Up to 8 SSIDs each band)
  Enable/Disable Wireless Radio
  Automatic Channel Assignment
  Transmit Power Control
  QoS(WMM)
  Seamless Roaming
  Beamforming
  MU-MIMO
  Rate Limit
  Load Balance
• .: Airtime Fairness
  Band Steering
  Reboot Schedule
  Wireless Schedule
  RADIUS Accounting
  MAC Authentication
  Wireless Statistics
  Static IP/Dynamic IP
• Security: "Captive Portal Authentication
  Access Control
  Wireless Mac Address Filtering
  Wireless Isolation Between Clients
  VLAN
  Rogue AP Detection
  802.1X Support
  WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise"
• Management: "Omada App
  Centralized Management
  Omada Hardware Controller
  Omada Hardware & Software Controller
  Cloud Access
  Email Alerts
  LED ON/OFF Control
  Management MAC Access Control
  SNMP v1, v2c, v3
  Local/Remote Syslog
  SSH
  HTTP/HTTPS
  L3 Management
  Multi-site Management
  Management VLAN"
• Additional Features: See Overview
• Environment: Operating Temperature: 0–40 °C (32–104 °F)
  Storage Temperature: -40–70 °C (-40–158 °F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
  Installation Guide
  Mounting Kits
• Package Type: Retail
• Package Weight: 0.3250 kg
• Warranty: Limited Lifetime
