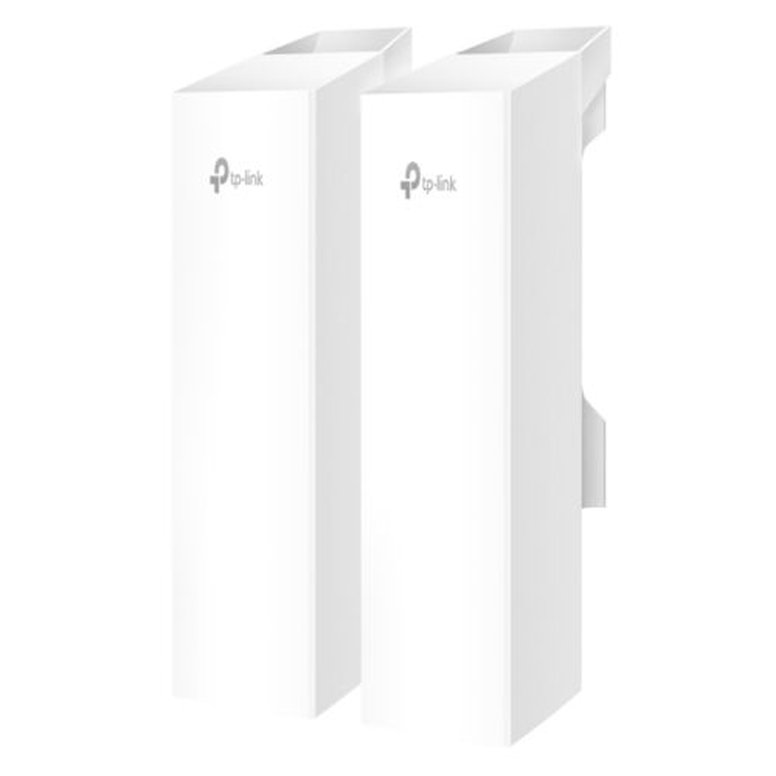

TP-LINK (EAP215-BRIDGE KIT) Omada Wireless Bridge 5GHz 867Mbps Long-Range Indoor/Outdoor Access Point

TP-LINK

TP-LINK (EAP215-BRIDGE KIT) Omada Wireless Bridge 5GHz 867Mbps Long-Range Indoor/Outdoor Access Point, Up to 5km

£139.68

TP-LINK

TP-LINK (EAP215-BRIDGE KIT) Omada Wireless Bridge 5GHz 867Mbps Long-Range Indoor/Outdoor Access Point, Up to 5km

£139.68

Add to Cart

Product Details

TP-LINK Website

Omada Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point

802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
Ideal for long-range wireless transmission up to 5 km.
Auto-pairing and agile LEDs for efficient deployment.
3x Gigabit Ethernet ports for more high-speed IP camera connections.
Supports Omada SDN for remote and centralized management.
IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
Supports Passive PoE for flexible deployment (adapter included).

Omada Professional Outdoor Wireless Bridge Solution

Up to 3.1mi (5km) Distance

Ideal for setting up networks in remote locations.

Up to 70° Beamwidth for Wider Deployment

One central AP covers more distributed APs and cameras, eliminating the need for multiple central APs.

Three Ports for More Devices

Connect more cameras and devices without an extra switch.

IP65 Weatherproof for Outdoor Use

Durable performance with IP65 rating and operating range of -40°F to 158°F (-40°C to 70°C).

Standalone or Omada SDN Mode

Flexible dual modes for batch deployment and remote management via the Omada app or Web UI.

Outdoor PtP (Point-to-Point) Wi-Fi Connection

Extend Wi-Fi to Additional Buildings

Extend your home network or Wi-Fi to your shop, barn, garage, farm, storehouse, guesthouse, or RV.

Extend Wi-Fi to Additional Offices

Provide 550Mbps bandwidth within a 328ft (100m) range using the EAP215-Bridge KIT or EAP211-Bridge KIT.

Elevator PtP Wi-Fi for Surveillance

Record real-time video to an NVR with virtually no hardwiring required

Outdoor PtMP (Point-to-Multipoint) Wi-Fi for Surveillance

Parking Lots

Remotely connect cameras to reduce crime and accidents

Farms / Orchards

Remotely connect cameras to protect your property

Construction Sites

Rapidly deploy wireless networks to remotely monitor construction progress in real time or manage logistics.

Easy Setup and Installation

Auto-Pairing to Reduce Setup Time

*Auto pairing works for the original kit. Three or more bridges require manual setup.

Signal Strength LEDs

LED Signal Indicator for Easy Alignment

Pole/Wall Mount for Easy Installation

*Pole mounting accessories are included, while the bracket for wall mounting and pole mounting requires purchase separately.

Standalone Mode

Simple Setup for Individual Scenarios

1. Power on both bridges and connect one to the network via cable to make it the main bridge.

2. Set up the main bridge using the Omada App or Web UI, then configure the sub-bridge step by step.

3. Deploy the sub-bridge at the remote location, align it using the signal LED, and optimize with the app if needed.

Works with Omada SDN

Faster Batch Deployment and Remote Management

Omada bridges integrate with Omada SDN for centralized management and remote access, enabling faster batch deployment of multiple bridge pairs, using batch provisioning.

Designed for Outdoors

IP65 Weatherproof
6kV Lightning Protection-40 °F-158 °F Working Range
Wind Resistance

Product Specification

Description

Specification

Primary Function: Access Point
#Hide#Access Point Mode: Yes (Access Point Mode)
#Hide#Wireless Standard: 802.11ac (Wi-Fi 5)
Bands: Single Band
Wi-Fi Rating: AC867
Max Single Band Wi-Fi Rate: 867 Mbps
Max Wired Transfer Rate: 10/100/1000 Mbps
Interface(s): 3 x Gigabit Ethernet Ports
Wireless Standards: IEEE 802.11 a/b/g/n/ac
Antenna(s): "Internal 2x2 Dual-polarized directional MIMO antennas
5 GHz: 11.0 dBi
Horizontal: 35°, Vertical: 35°"
Protection: 6 KV Lightning Protection
Button(s): Reset Button
Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)
Power Consumption: 11.5W
Dimensions: 79 x 60 x 224 mm
Weatherproof: Yes (Weatherproof)
Frequency: 5 GHz
EIRP: "<23dBm (5 GHz, band 1/2, EIRP)
<30dBm (5 GHz band3, EIRP)"
Wireless Functions: Mesh
MU-MIMO: 5G 2x2 MU-MIMO DL
Load Balance
Beamforming
Seamless Roaming(802.11r)
Airtime Fairness
Multiple SSIDs:8
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP
Security: "VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication
Maximum number of MAC Filter: 4,000
WPA-Personal/Enterprise, WPA2-Personal/Enterprise"
Wireless Range: Ideal for long-range wireless transmission up to 5 km
Management: "Omada Ap
Restore & Backup
Firmware update via Web
NTP
Cloud Access - Requires OC300, OC200 or Omada Software/Cloud-Based Controller
LED ON/OFF Control
Management MAC Access Control
SNMP: v1, v2c, v3
SSH
Web-based Management

Centralized Management:
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller"
Additional Features: See Overview
Environment: "Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
Operating Humidity: 10%–90% non-condensing;
Storage Humidity: 5%–90% non-condensing"
Package Contents: EAP215-Bridge KIT
Passive PoE Adapter
Power Cord
Installation Guide
Mounting Kit
Package Type: Retail
Package Weight: 1.4000 kg
Warranty: 2 Years
