TP-LINK

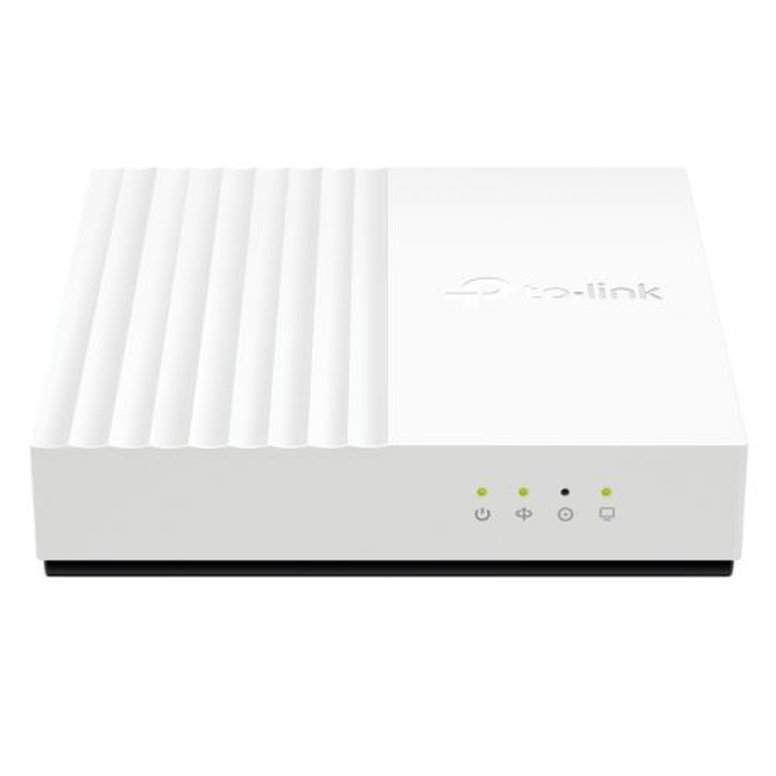

TP-LINK Aginet (XGZ030) 1-Port XGS-PON Terminal, Symmetrical 10G Connectivity, Remote Management
£57.14
Out of stock
TP-LINK Aginet (XGZ030) 1-Port XGS-PON Terminal, Symmetrical 10G Connectivity, Remote Management
TP-LINK
TP-LINK Aginet (XGZ030) 1-Port XGS-PON Terminal, Symmetrical 10G Connectivity, Remote Management
£57.14
Out of stock
Product Details



1-Port XGS-PON Terminal

  • Symmetrical 10G Connectivity: XGS-PON technology delivers 10 Gbps upstream and downstream transmissions simultaneously.*
  • 10G Wired Connections: 1x 10GE LAN port enables ultra-fast network sharing and connections.
  • Ease of Use: Quick and hassle-free installation with intelligent power-saving.
  • Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management



*Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.




Product Specification

Description

Specification

  • Interface(s): 1 x XGS-PON Port
    1 x 10G RJ45 Port
  • Button: Power On/Off Button
    Reset Button
  • Power Supply: 12V/1A
  • IEEE Standards: "IEEE 802.1p, 802.1Q, 802.1X, 802.1D, 802.1w
    IEEE 802.3, 802.3.u, 802.3ab, 802.3x"
  • Data Rates: "Downstream Speeds: 10 Gbps*
    Upstream Speeds: 10 Gbps*

    *Actual network speed may be limited by the rate of the products Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

    "
  • Wavelength: Upstream: 1270 nm
    Downstream: 1577 nm
  • Distance: 0-20 km Max
  • GPON Standards: "ITU-T G.9907.1, ITU-T G.988"
  • Optical Module: Class E1
  • Receiver: Super-TIA
  • Transmitter: DFB laser
  • VLAN: "802.1Q tag VLAN, Q in Q VLAN
    VLAN transparent mode/VLAN translation
    mode/VLAN trunk mode
    Authentication based on SN and password"
  • Security: AES encryption
    Packet filter based on VLAN
  • Management: "Local management: WebGUI, Telnet
    Remote management: OMCI"
  • IGMP: IGMP v1/v2/v3
  • Advanced Features: Upstream and Downstream FEC
    Dynamic Bandwidth Allocation (DBA) support NSR/SR
    Up to 32 T-CONTs and 256 GEM ports
    Optical power detection
    Dying Gasp
    Terminal Silent mechanism
    802.3az EEE energy conservation
    Schedule Reboot
    LED Schedule
  • Dimensions: 120 x 120 x 27.85 mm
  • Environment: Operating Temperature: 0°C–40°C (32°F–104°F)
    Storage Temperature: -40°C–60°C (-40°F–140°F)
    Operating Humidity: 10%–90% non-condensing
    Storage Humidity: 5%–90% non-condensing
  • Package Contents: XGS-PON Terminal
    Power Adapter
    RJ45 Ethernet Cable
    Quick Installation Guide
  • Package Weight: 0.2900 kg
  • Warranty: 3 Years
