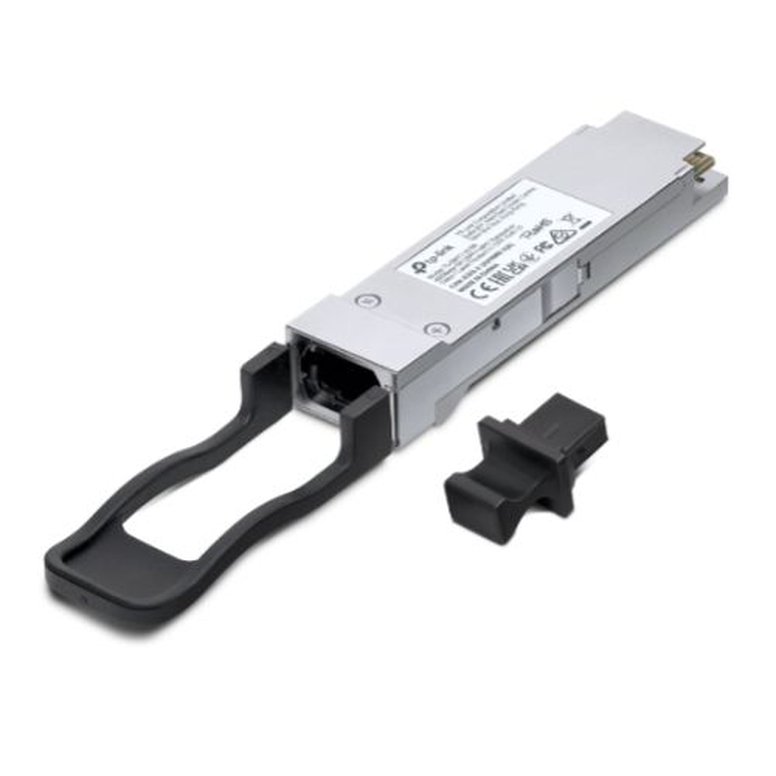

40GBase-SR QSFP+ MPO Transceiver

• Enables ultra-fast fiber connections up to 41.25 Gbps over OM3 fiber within 150 m*
• Supports 40GBASE-SR4/QDR application and compatible with QSFP+ Electrical MSA SFF-8436.
• Supports hot swapping feature for quick and easy installation and application.
• Supports the OMCI protocol and DDM (Digital Diagnostics Monitoring) for centralized management and real-time monitoring.

Description

Specification

• Device Type: QSFP+ Module
• Cable: Multi-mode Fiber
• Fiber Type: Multi-mode (50/125 MMF)
• Max. Cable Length: Max. 150m (OM3)
• Data Rate: 40GBASE-SR4 at 10.3124 Gbps per Lane
• Wave Length: 830 nm - 870 nm (Typ. 850 nm)
• Port Type: Device: QSFP+
  Fiber: MPO
• Diagnostic Function: "Monitors parameters such as voltage, transceiver power, and temperature"
• Additional Features: Extinction Ratio: > 3 dB
  Receiver Sensitivity: < -10.2 dBm
  Rx Optical Power Tolerance: > 2.5 dBm
  Tx Optical Power: 6~2.4dbm
  Saturation Optical Power: >2.5 dBm
  Hot Swap: Yes
  Nominal Voltage: 3.3 V (< +/- 5%)
  Electrical Level: Data Interface: CML
  Control Interface: LVTTL
• Package Contents: QSFP+ Transceiver TL-SM7110-SR
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.0900 kg
• Warranty: 3 Years
