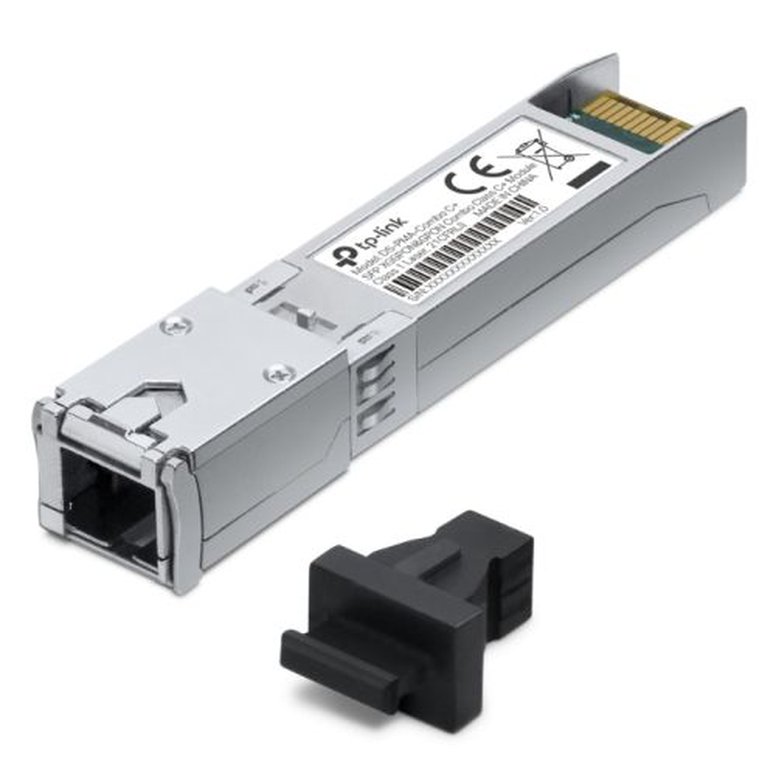

SFP XGS-PON & GPON Combo Class C+ Module

• Enables multi-gig fiber internet connections up to symmetrical 10 Gbps transmission.*
• Supports XGS-PON/XG-PON and GPON for flexible deployment and internet access.
• Supports hot swapping for quick and easy installation and application.
• Supports the OMCI protocol and DDM (Digital Diagnostics Monitoring) for centralized management and real-time monitoring.

Description

Specification

• Device Type: Combo PON SFP+ Module
• Cable: Single-mode Fiber
• Fiber Type: Single Fiber (9/125um)
• Max. Cable Length: Max. 20 km
• Data Rate: XGS-PON:
  Downstream Data Rate: 9.953 Gbps
  Upstream Data Rate:9.953 Gbps

  XG-PON:
  Downstream Data Rate: 9.953 Gbps
  Upstream Data Rate:2.488 Gbps

  GPON:
  Downstream Data Rate: 2.488 Gbps
  Upstream Data Rate:1.244 Gbps
• Power Level: XGS-PON:
  Tx Optical Power: +3~+8 dBm
  Rx Sensitivity <-29 dBm
  Rx Saturation Optical Power >-8 dBm

  XG-PON:
  Tx Optical Power: +3~+8 dBm
  Rx Sensitivity <-30.5 dBm
  Rx Saturation Optical Power >-10 dBm

  GPON:
  Tx Optical Power: +3~+7 dBm
  Rx Sensitivity <-32 dBm
  Rx Saturation Optical Power >-12 dBm
• Wave Length: XGS-PON:
  Tx: 1577 nm
  Rx: 1270 nm

  XG-PON:
  Tx: 1577 nm
  Rx: 1270 nm

  GPON:
  Tx: 1490 nm
  Rx: 1310 nm
• Port Type: Device: XGS-PON/XG-PON/GPON SFP+
  Fiber: SC/UPC
• Diagnostic Function: "Monitors parameters such as voltage, transceiver power, and temperature"
• Additional Features: Extinction Ratio : >8.2dB
  Rx Optical Power Tolerance: >5dBm
  Hot Swap: Yes
  Nominal Voltage: 3.3 V (< +/- 5%)
  XGS-PON/XG-PON Data Interface: CML
  GPON Data Interface: LVPECL
  Control Interface: LVTTL
• Package Contents: SFP Module DS-PMA-Combo C+
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.0700 kg
• Warranty: 3 Years
