Kingston 32GB, DDR4, 3200MHz (PC4-25600)

KINGSTON

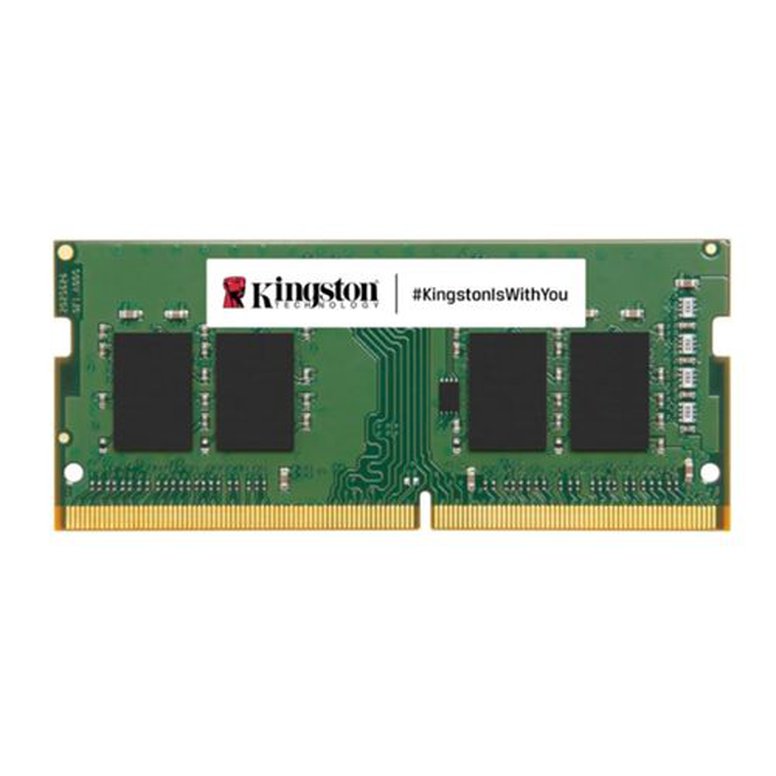

Kingston 32GB, DDR4, 3200MHz (PC4-25600), CL22, SODIMM Memory

£54.40

Out of stock

KINGSTON

Kingston 32GB, DDR4, 3200MHz (PC4-25600), CL22, SODIMM Memory

£54.40

Out of stock

Product Details

KINGSTON Website

32GB 2Rx8 4G x 64-Bit PC4-3200 CL22 260-Pin SODIMM

ValueRAM's KVR32S22D8/32 is a 4G x 64-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.

Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.18” (30.00mm)
RoHS Compliant and Halogen-Free

Product Specification

Description

Specification

Series: Kingston ValueRAM
DDR Type: DDR4 SODIMM
Size: 1 x 32GB
#Hide#Individual Module Size: 32GB
Speed: 3200 MHz
Compliance: PC4-25600
Pins: 260-pin
CAS Latency: CL22
Data Integrity Check: Non-ECC
Voltage: 1.2V Typical
Additional Information: See Overview
Package Type: Retail
Package Weight: 0.0225 kg
Warranty: Lifetime
