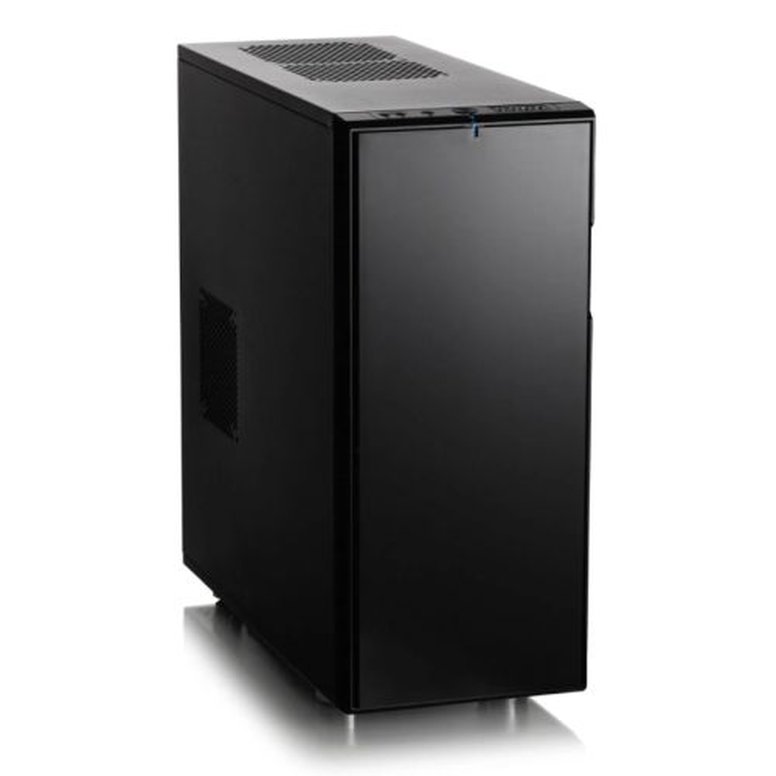

Fractal Design Define XL R2 (Black Pearl) Gaming Case, XL-ATX/E-ATX, Modular Design, 3 Fans, Fan Controller, ModuVent Technology, Sound Dampening
£131.22
Fractal Design Define XL R2 (Black Pearl) Gaming Case, XL-ATX/E-ATX, Modular Design, 3 Fans, Fan Controller, ModuVent Technology, Sound Dampening
FRACTAL
Fractal Design Define XL R2 (Black Pearl) Gaming Case, XL-ATX/E-ATX, Modular Design, 3 Fans, Fan Controller, ModuVent Technology, Sound Dampening
£131.22
Product Details


Bigger and better: building on the success of the awarding-winning Define XL


  • High density noise-reducing material for an optimal silent case **To achieve a high level of noise reduction, material with mass should be incorporated which is what we strive to achieve with the dense bitumen used on the side panels
  • Patented ModuVent™ design allowing the user to choose between optimal silence or maximum airflow
  • With a new internal layout and additional PCI expansion slots, it can harbor the most powerful enthusiast systems.
  • Both HDD cages can be removed or repositioned - Top HDD cage can be removed or repositioned for increased airflow whereas bottom HDD cage can be repositioned further into the case to allow for front radiator mount.
  • The case can fit water cooling equipment in the front, top, rear and bottom without major modifications.
  • Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
  • Three Silent Series R2 fans are included, featuring hydraulic bearings which contribute to a longer life expectancy – Silent Series R2 retail fans now come standard in all cases
  • New tool-less front fan holder makes switching front fans a breeze




Room for water cooling – everywhere

This updated chassis carries on the family tradition of providing superb cooling and ventilation capabilities with exceptional expandability, in a sleek and stylish Scandinavian form.

The Define XL R2, which includes our innovative ModuVent™ feature, has an updated internal layout that offers even greater modularity and flexibility, including capacity for 9 PCI cards and two HDD cages that can be repositioned to provide even more space for water cooling radiators.






Product Specification

Description

Specification

  • Form Factor: XL-ATX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: "XL-ATX, E-ATX, ATX, Micro ATX, Mini ITX"
  • #Hide#Window(s): No
  • Connectors / Controls: 2 x USB 3.0
    2 x USB 2.0
    Audio in/out
    Power button with LED (blue)
    Reset button
    Fan controller (behind door)
  • #Hide#5.25 Bay: Yes (5.25 Bay)
  • Drive Bays: 8 x 3.5"" HDD / SSD trays
    4 x 5.25"" bays
  • Expansion Slots: 9 Expansion slots
  • Cooling System: Included
    Front: 1 x Hydraulic 140 mm Silent Series R2 fan
    Rear: 1 x Hydraulic 140 mm Silent Series R2 fan
    Bottom: 1 x Hydraulic 140 mm Silent Series R2 fan

    Fan Mounts
    Front: 2 x 120 / 140 mm
    Top: 2 x 120 / 140 mm
    Rear: 1 x 120 / 140 mm
    Bottom: 1 x 120 / 140 mm
    Side: 1 x 120 / 140 mm
  • .:
    Water Cooling options:
    Front: 240 mm when HDD cages are removed or repositioned
    Top: 240 mm or 280 mm when using slim radiators
    Rear: 120 mm or 140 mm
    Bottom: 120 mm
  • Colour: Black
  • Material: Left side panel: Industrial sound-dampened steel
    Right side panel: Industrial sound-dampened steel
  • Compatibility: GFX Card:
    330 mm with the top HDD cage installed
    480 mm with the top cage removed

    Max CPU Cooler:
    190 mm when using the bottom fan location
    345 mm when not using this fan location

    PSU:
    170 mm (when no fan is installed in the side panel)
  • Weight/Dimensions: 16.4 kg
    (WxHxD) 232 x 559 x 560 mm
  • Additional Features: See Overview / Video
  • Accessories: Accessory box
    User manual
  • Package Weight: 18.3500 kg
  • Warranty: 2 Years
