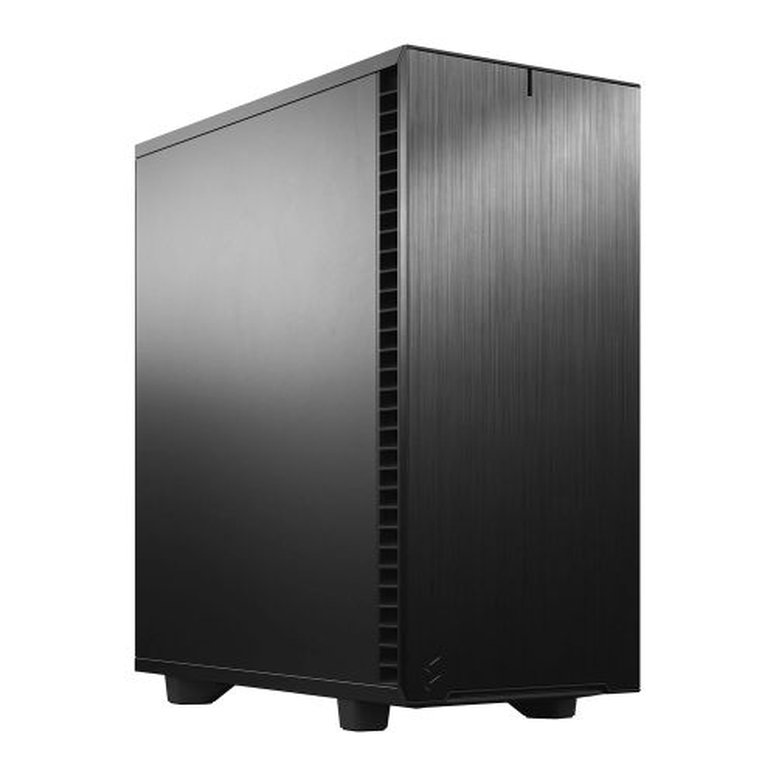

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.


• Compact yet spacious interior accommodates ATX, mATX and mITX motherboards
• Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
• Support for two 2.5”/3.5” drives plus up to four SSDs (two SSD brackets included)
• Top panel effortlessly swaps from solid steel to filtered ventilation
• New removable top panel design opens up to fully expose the case interior for effortless installation and cable routing
• Silence-optimized construction with industrial sound-damped front, top, and side panels
• Brushed aluminum front and top-latching side panels offer a clean sophisticated look
• Install up to 7 x 120 mm or 4 x 140 mm fans (1 x 120 mm and 1 x 140 mm Dynamic X2 fans included)
• Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
• Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
• Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
• Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
• Integrated cable guides with Velcro straps further simplify cable management behind the board

Description

Specification

• Form Factor: ATX
• #Hide#Small Form Factor: No
• Power Supply Wattage: No PSU
• Motherboard Support: "ATX, Micro ATX, Mini ITX"
• #Hide#Window(s): No
• Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
  2 x USB 3.0
  2 x USB 2.0
  Audio I/O
  Power button
  Reset button
• Drive Bays: "2 x 3.5""/2.5"" drive mounts
  Dedicated 2.5"" drive mounts: 2 trays, 4 positions total"
• Expansion Slots: 7 Expansion slots
• Cooling System: Included
  Front: 1 x Dynamic X2 GP-14 140mm fan
  Rear: 1 x Dynamic X2 GP-12 120mm fan

  Fan Mounts
  Front: 3 x 120 / 2 x 140 mm
  Top: 2 x 120 / 2 x 140 mm
  Rear: 1 x 120 mm
  Bottom: 1 x 120 mm (requires removal of HDD cage)
• .:
  Water Cooling options:
  Front: Up to 360 / 280 mm radiator (max 145 mm width)
  Top: Up to 240 mm radiator
  Rear: 120 mm radiator
  Bottom: 120 mm radiator (requires removal of HDD cage)
• Colour: Black
• Material: Left side panel: Industrial sound-damped steel
  Right side panel: Industrial sound-damped steel
• Compatibility: GFX Card:
  341 mm (360 mm without front fan)

  Max CPU Cooler:
  169 mm

  PSU:
  200 mm total (165 mm w/ HDD cage and front fan)
• Weight/Dimensions: 8.61 kg
  (LxWxH) 427 x 210 x 474 mm
  w/o feet/protrusions/screws: 415 x 210 x 451 mm
• Additional Features: See Overview / Video
• Accessories: Accessory box
  User manual
  Ventilated top panel
• Package Weight: 11.3000 kg
• Warranty: 2 Years
