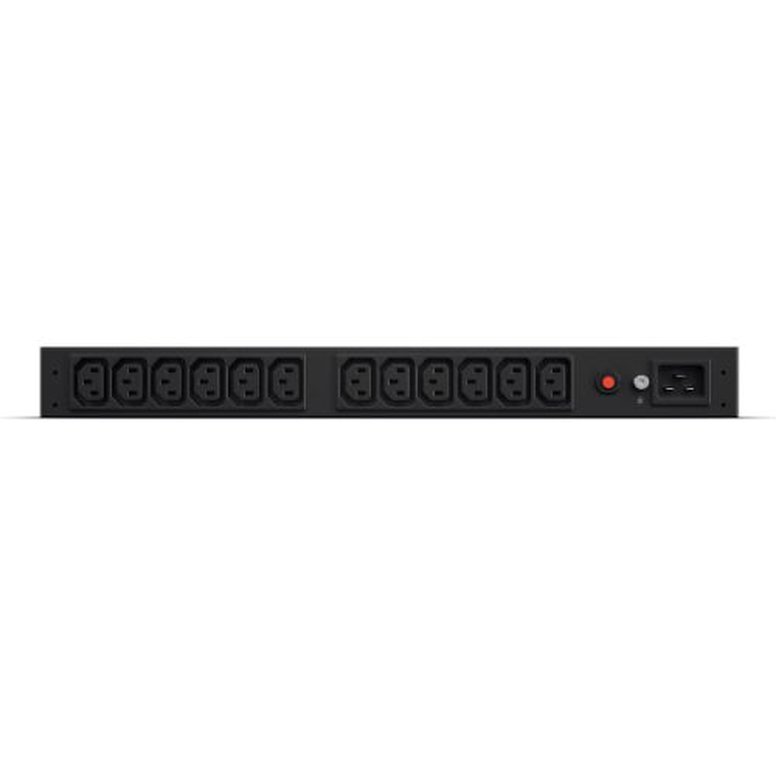

CyberPower PDU20BHVIEC12R Basic Single Phase Power Distribution Unit

Description

Specification

• Type: Basic
• Phase: Single Phase
• Input: Nominal Input Voltage: 200 ~ 240 Vac
  Input Frequency: 50 / 60 Hz
  Maximum Input Current: 16A
  Input Connector Type: IEC C20 x 1
• Output: Output Voltage (V): Depends on Input
  Overload Protection: Circuit Breaker
  Over Current Protection (Each Bank): 16A
  Outlet(s) - Total: 12
  Outlet(s) - Rear: 12
  Outlet Type: IEC C13 x 12
• Form Factor: 1U Vertical Rackmount
  1U Horizontal Rackmount
  Undercounter Installation Supported
• Enclosure Construction: Steel
• Cord Retention Tray: Yes
• External Site Ground Pin: Yes
• Adjustable Mounting Brackets: "2 Set (L-short, L-long)"
• Weight/Dimensions : 0.9 kg
  (WxHxD) 445 x 44.5 x 38.1 mm
• Environmental: "Operating Temperature: 32 ~ 95°F
  Operating Temperature: 0 ~ 35°C
  Operating Relative Humidity (Non-condensing): 0 ~ 95%
  Operating Elevation: 0-9,843 feet (0-3,000 meters)
  Storage Temperature: 5 ~ 113°F
  Storage Temperature: -15 ~ 45°C
  Storage Relative Humidity (Non-condensing): 0 ~ 95%
  Storage Elevation: 0-49,213 feet (0-15,000 meters)"
• Certifications: "CE, UL60950
  RoHS"
• Additional Features: See Overview
• Package Contents: PDU20BHVIEC12R
  Users Manual
  Product Registration Card
  Cord Retention Tray
  Mounting Brackets
  Cable Ties
  Screw Kit
• Package Weight: 2.3700 kg
• Warranty: 2 Years
