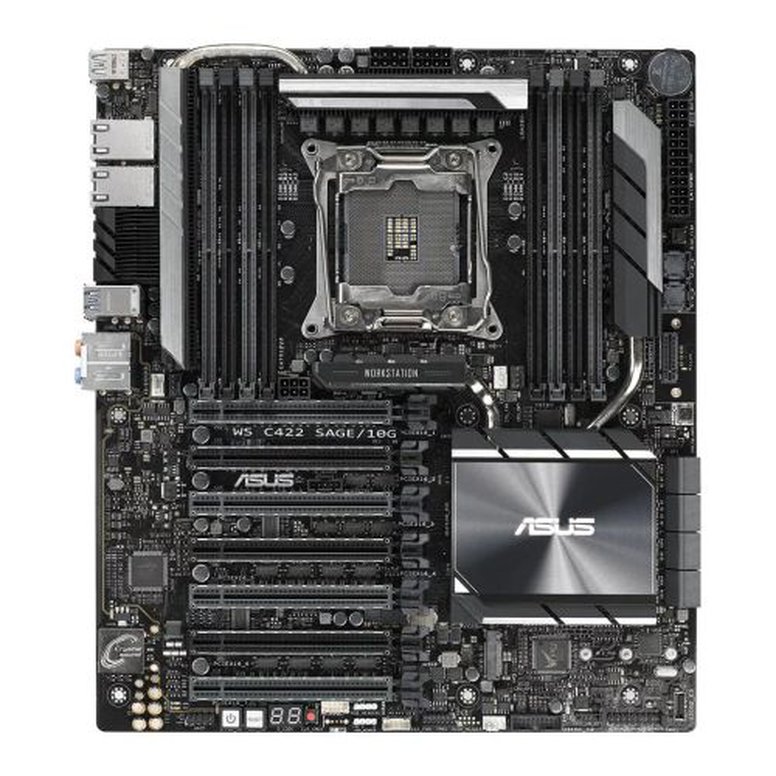

Intel® LGA2066 CEB motherboard with 4-way SLI graphic power, dual Intel® 10G LAN, dual M.2 & U.2, USB 3.1 Gen2 connectors and ASUS Control Center
- Powerful performance with Intel® Xeon® W processor and ECC memory
- High Speed networking with dual Intel® 10G LAN
- Ultimate graphics power with up to 4-way NVIDIA® SLI™ and AMD® CrossFireX™
- ASUS Control Center - A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses
- Next-gen transfer speeds - Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Gen2 Type-A and Type-C connections
- Ultra-efficient VRM heatsink - Metal fin array connected to large surface area via a heatpipe tames C422 thermals to enable unthrottled performance
High Speed networking with dual Intel 10G LAN
With built in dual Intel 10GBASE-T networking, WS C422 Sage/10G increases data throughput and improves efficiency. This supports high-density, high-bandwidth and low-latency access-layer networks needed for extremely demanding applications, such as graphics or video production.
Ultimate graphics power with up to 4-way NVIDIA SLI and AMD CrossFireX
WS C422 Sage/10G fits up to four dual-slot graphics cards and supports both NVIDIA SLI and AMD CrossFireX 4-way configurations to enable multi-GPU setups that harness the full power of the latest graphics technologies, including NVIDIA Quadro. NVIDIA Quadro is the perfect complement to WS C422 Sage/10G, delivering the best performance for design, modeling, medical research, and processing-intensive simulation and rendering applications.
ASUS Control Center
WS C422 Sage/10G features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Unleashed storage speeds of up to 32Gbps
WS C422 Sage/10G features dual onboard M.2 and U.2 slots that support up to 32Gbps, which one with vertical design supporting 22110-length SSDs to reduce used space.
Next-gen transfer speeds
WS C422 Sage/10G 's front panel USB 3.1 connector is ready for next-gen PC cases and devices. With backward-compatible USB 3.1 Gen 2 Type-A and reversible USB 3.1 Gen 2 Type-C ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.
SafeSlot
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Outstanding Audio for content creator
Unique audio codec designed in close collaboration with Realtek. The RealtekS1220A features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and an 113dB SNR for the line-in, providing pristine audio quality.
Immersive headphone Audio
DTS Headphone:X Offers 3D surround-sound technology for incredibly rich audio with all types of headphones.
Supporting Thunderbolt EX3 card
WS C422 Sage/10G provides full support for a ThunderboltEX 3 card. An Intel-certified Thunderbolt 3 add-on card enables breathtaking bi-directional speeds of up to 40Gbps through a single cable - up to 4X faster than other PC data-transfer protocols. Beyond sheer bandwidth, Thunderbolt 3 supports daisy-chaining up to six devices, utilizes a Type-C reversible connector for compatibility with the latest USB 3.1 Gen 2 Type-C devices, and meets USB power delivery specifications for fast, high-power charging of up to 36W.
