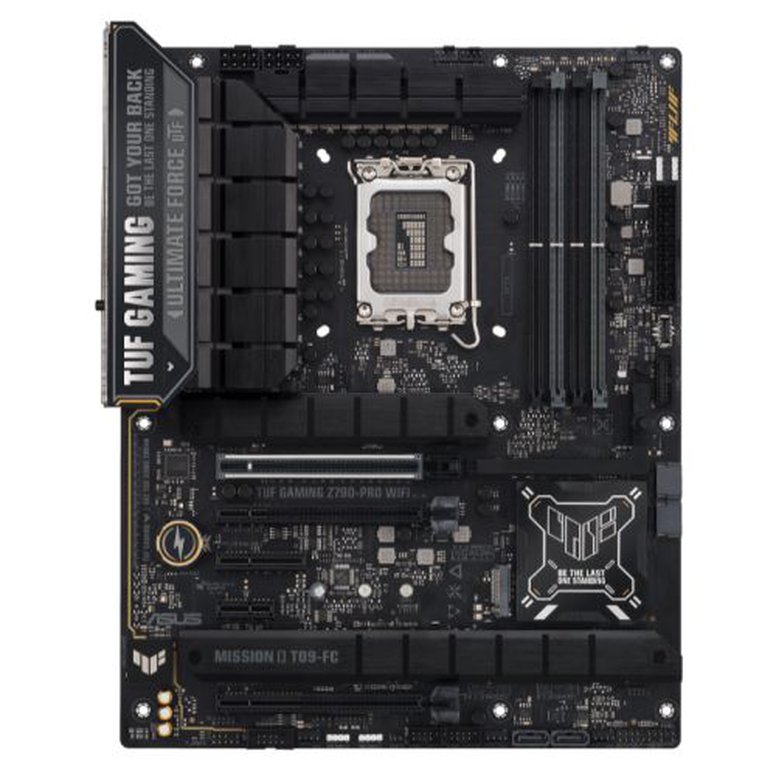

TUF GAMING Z790-PRO WIFI combines the latest Intel® processors with game-ready features and military-grade durability.

With its premium power solution and comprehensive cooling system, this motherboard delivers rock-solid performance for marathon gaming. And it undergoes rigorous endurance testing to ensure reliability in challenging conditions. Meanwhile, a distinctive gray rubberized emblem adorns the VRM heatsink, celebrating the core essence of TUF GAMING vigor.

• 16(60A)+1(60A)+1 power stages with enlarged VRM heatsinks
• PCIe® 5.0 for graphics cards
• Memory module support - 7800+ MT/s, AEMP II
• Front USB 20Gbps (USB Type-C®) connector for PD 3.0 at 30W
• PC DIY friendly
• PCIe Q-Release
• WiFi 6E with ASUS WiFi Q-Antenna
• AI Overclocking
• AI Cooling II
• Two-Way AI Noise Cancelation

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z790
• #Hide#DDR Type: DDR5
• CPU Support: "Intel LGA 1700 socket: Ready for Intel Core Next-Gen 14th & 13th Gen Intel Core processors, Intel® Core 12th Gen, Pentium®Gold and Celeron Processors"
• RAM Technology: "DDR5, Dual Channel
  Non-ECC, Un-buffered Memory
  Supports Intel Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile II (AEMP II)"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7800+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 4.0 x16 (supports x4 mode)
  1 x PCIe 4.0 x4
  1 x PCIe 3.0 x16 (supports x1 mode)
  1 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) - SATA & PCIe 4.0 x4
• RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10"
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth v5.3
• LAN: 2.5GB LAN
• Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
• USB Ports Supported: "1 x USB 20Gbps Type-C
  3 x USB 10Gbps (2 Type-A,1 Type-C)
  4 x USB 5Gbps Type-A

  1 x USB 20Gbps Type-C (up to 30W PD Fast-charge)
  2 x USB 5Gbps
  4 x USB 2.0"
• Back Panel I/O Ports: "1 x USB 20Gbps Type-C
  3 x USB 10Gbps (2 Type-A, 1 Type-C)
  4 x USB 5Gbps Type-A
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi module
  1 x Intel 2.5Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out"
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x 24-pin main
  2 x 8-pin +12V
  4 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 20Gbps Type-C
  1 x USB 5Gbps
  2 x USB 2.0
  3 x Addressable Gen2
• .: 1 x Aura RGB
  1 x Clear CMOS
  1 x COM port
  1 x Front panel audio
  1 x 20-3 pin system panel
  1 x Thunderbolt (USB4)
• Accessories: 2 x SATA 6Gb/s cables
  1 x ASUS WiFi Q-Antenna
  1 x TUF GAMING sticker
  2 x M.2 rubber packages
  1 x Screw package for M.2 SSD
  1 x TUF certification card
  1 x Quick start guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.9400 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
