ASUS

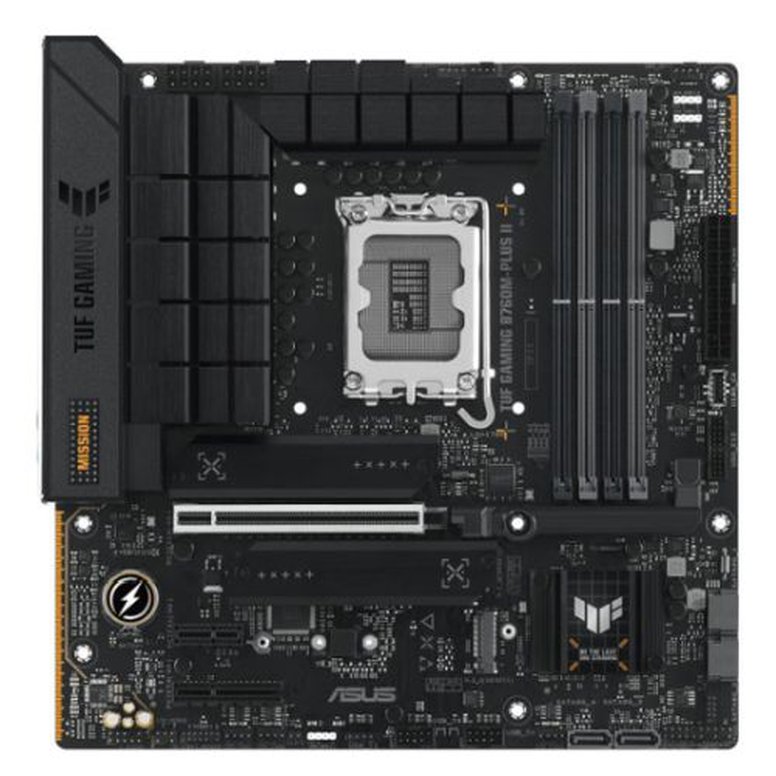

Asus TUF GAMING B760M-PLUS II, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2
£165.61
Asus TUF GAMING B760M-PLUS II, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2
ASUS
Asus TUF GAMING B760M-PLUS II, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2
£165.61
Product Details



TUF GAMING B760M-PLUS II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.

Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

  • 12(50A)+1(60A)+1 power stages with enlarged VRM heatsinks
  • PCIe® 5.0 for graphics cards
  • DDR5 memory module support
  • USB 20Gbps Type-C® and a front-panel USB 10Gbps Type-C® header
  • 2.5 Gb Ethernet
  • PCIe Q-Release
  • Two-Way AI Noise Cancelation






Intelligent Control

The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.





Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING B760M-PLUS II is the perfect foundation for your next Intel battle rig.





Easy PC DIY

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.





Immersive Gaming

TUF GAMING B760M motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.









                                             ** Click here for full product details **
Product Specification

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel B760
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: "DDR5 (Dual Channel)
    Non-ECC, Un-buffered Memory
    Supports Intel Extreme Memory Profile (XMP)
    ASUS Enhanced Memory Profile II (AEMP II)"
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 7800+(OC)
  • Maximum Memory: 192GB
  • Graphics: Integrated Graphics*
    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 5.0 x16
    1 x PCIe 4.0 x4
    1 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
    1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
    1 x M.2 (2242/2260/2280) - PCIe 4.0 x2
  • RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
  • Wireless: -
  • LAN: 2.5GB LAN
  • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: Rear:
    1 x USB 20Gbps Type-C
    1 x USB 10Gbps Type-A
    2 x USB 5Gbps Type-A
    4 x USB 2.0

    Front:
    1 x USB 10Gbps Type-C
    2 x USB 5Gbps
    5 x USB 2.0
  • Back Panel I/O Ports: 1 x USB 20Gbps Type-C
    1 x USB 10Gbps Type-A
    2 x USB 5Gbps Type-A
    4 x USB 2.0
    1 x DisplayPort
    1 x HDMI
    1 x Realtek 2.5Gb Ethernet
    5 x Audio jacks
    1 x Optical S/PDIF out
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    1 x 4-pin AIO Pump
    3 x 4-pin Chassis Fan
    1 x 24-pin Main
    2 x 8-pin +12V
    3 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 10Gbps Type-C
    1 x USB 5Gbps
    3 x USB 2.0
    3 x Addressable Gen2
  • .: 1 x Clear CMOS
    1 x Front Panel Audio
    1 x20-3 pin System Panel
    1 x Thunderbolt (USB4)
  • Accessories: 2 x SATA 6Gb/s cables
    1 x M.2 rubber package
    1 x TUF GAMING sticker
    2 x Screw packages for M.2 SSD
    1 x TUF certification card
    1 x Quick start guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.6000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
