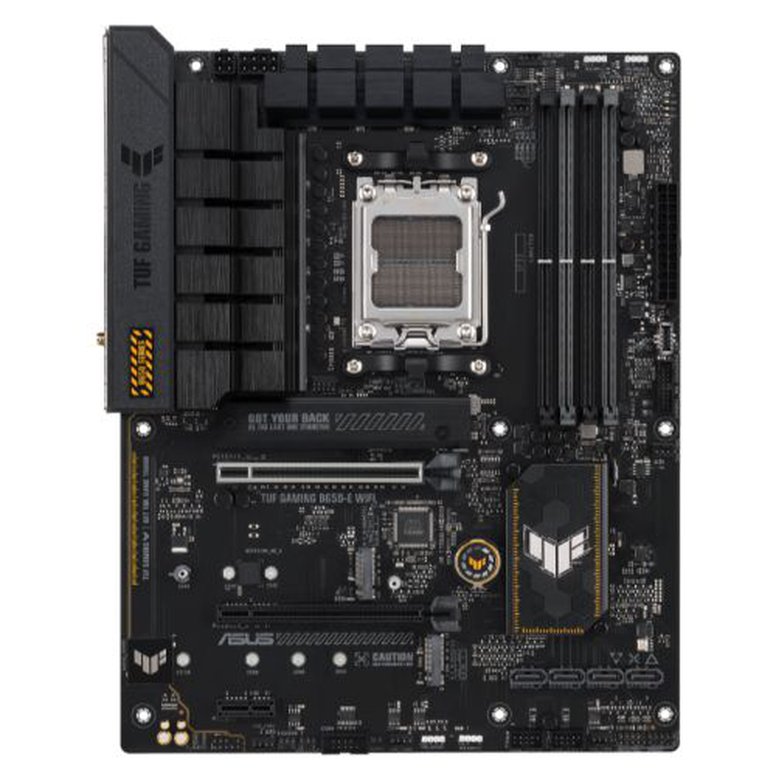

ASUS TUF GAMING B650-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability.

Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

• 8(60A)+2(60A) power stages with enlarged VRM heatsinks
• PCIe® 5.0 for graphics cards and M.2 storage
• DDR5 memory module support
• USB 10Gbps Type-C® and a front-panel USB 20Gbps Type-C® header
• 2.5 Gb Ethernet
• WiFi 6E
• Two-Way AI Noise Cancelation

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD B650
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5 (Dual Channel)
  ECC and Non-ECC, Un-buffered Memory
  Supports AMD Extended Profiles for Overclocking (EXPO)
  OptiMem II"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8000+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0/3.0 x16
  1 x PCIe 4.0/3.0 x16 (supports x1 mode)
  1 x PCIe 4.0/3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe 5.0 x4*
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4

  *Ryzen 8000 Series CPUs support PCIe 4.0 x4 mode
• RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.3
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  1 x USB 10Gbps Type-C
  1 x USB 10Gbps Type-A
  3 x USB 5Gbps Type-A
  3 x USB 2.0

  Front:
  1 x USB 20Gbps Type-C
  2 x USB 5Gbps
  4 x USB 2.0
• Back Panel I/O Ports: "2 x USB 10Gbps (1 Type-A, 1 Type-C)
  3 x USB 5Gbps Type-A
  3 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet
  5 x Audio jacks
  1 x BIOS FlashBack button"
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x 4-pin +12V
  3 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 20Gbps Type-C
  1 x USB 5Gbps
  2 x USB 2.0
• .: 3 x Addressable Gen2
  1 x Aura RGB
  1 x Clear CMOS
  1 x COM Port
  1 x Front Panel Audio
  20-3 pin System Panel
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.9400 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
