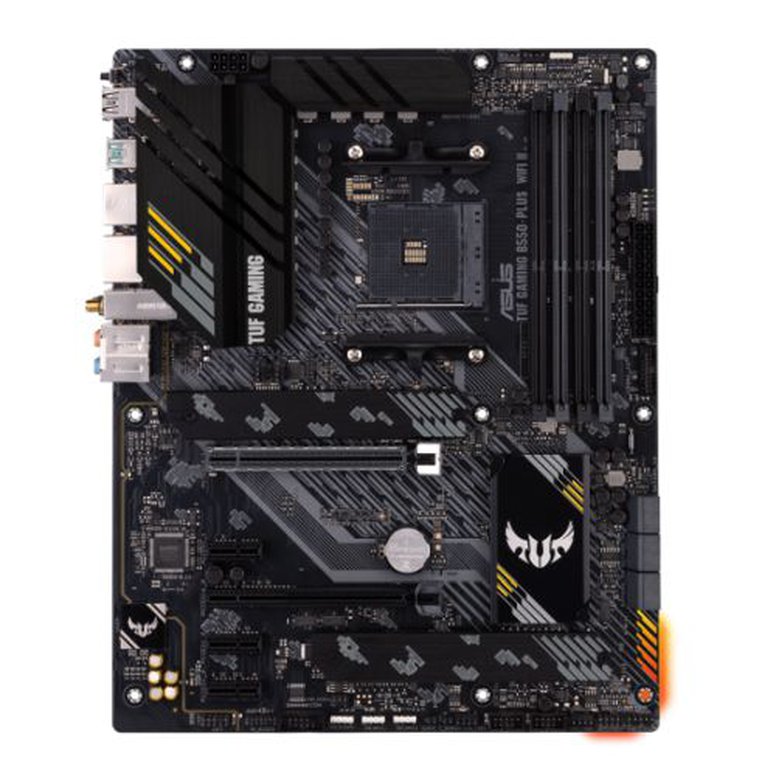

Asus TUF GAMING B550-PLUS WIFi II

ASUS

Asus TUF GAMING B550-PLUS WIFi II, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2

£161.43

ASUS

Asus TUF GAMING B550-PLUS WIFi II, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2

£161.43

Add to Cart

Product Details

ASUS Website

AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header, and Aura Sync RGB lighting support

AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt 3 header support
Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard
AI noise-canceling microphone: provides crystal-clear in-game voice communication

Durable. Stable. Reliable.

TUF GAMING B550-PLUS WIFI II distils essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF GAMING B550-PLUS WIFI II is the perfect foundation for your next high-core-count battle rig.

Easy PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want - even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

Immersive Gaming

TUF GAMING B550-PLUS WIFI II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Click here for full details

Product Specification

Description

Specification

Motherboard Type: Desktop
Form Factor: ATX
Socket: AMD AM4
Chipset: AMD B550
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 4866(OC)
Maximum Memory: 128GB
Graphics: Integrated Graphics Processor*

Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort
PCI/PCI Express: 1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
3 x PCIe 3.0 x1
Storage: 6 x SATA III
2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
RAID: "RAID 0, 1, 10"
Wireless: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
Supports 2.4/5GHz frequency band
Bluetooth v5.2
LAN: 2.5GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported: "2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)"
Back Panel I/O Ports: "2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0 ports
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button"
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
6 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
2 x AURA Addressable Gen2
2 x AURA RGB
.: 1 x Clear CMOS
1 x COM Port
1 x Front Audio
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt
Accessories: I/O Shield
2 x SATA 6Gb/s cables
1 x TUF Gaming Sticker
1 x TUF Certification card
1 x 2x2 Dual Band Wi-Fi Antenna
1 x M.2 SSD screw package
1 x M.2 Rubber Package
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.6100 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
#Hide#RGB Lighting: Out of the box RGB lighting
