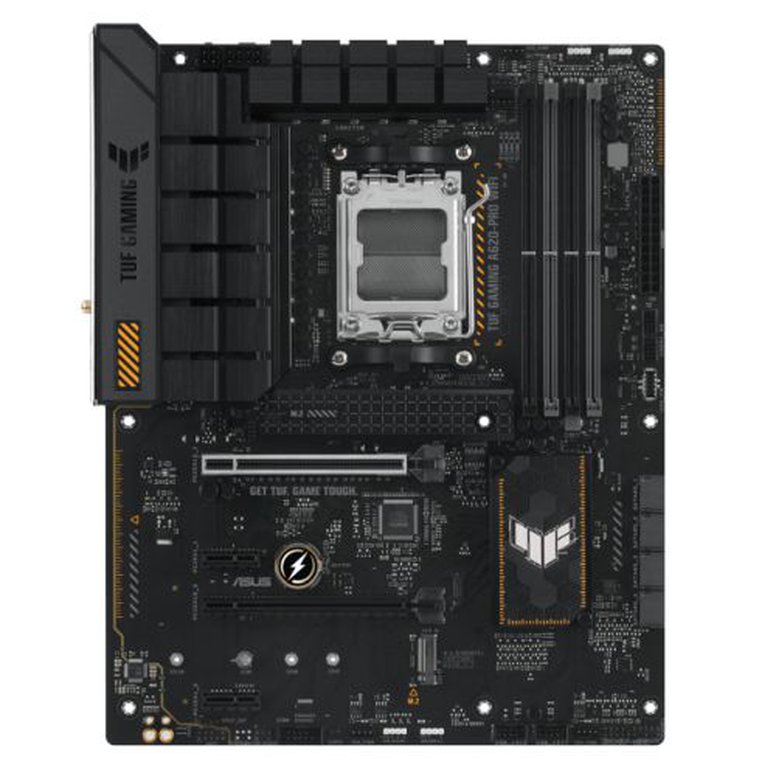

ASUS TUF GAMING A620-PRO WIFI takes all the essential elements of AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability.

Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.


• Power stages design - 12+2 power stages with enlarged VRM heatsinks
• PCIe 4.0 for M.2 storage
• DDR5 memory module support
• Rear and front USB 3.2 Gen 1 Type-C
• 2.5 Gb Ethernet
• WiFi 6
• Two-Way AI Noise Cancelation
• Intelligent Control
• BIOS FlashBack

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD A620
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
  Supports AMD Extended Profiles for Overclocking (EXPO)
  OptiMem II
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7600+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
  1 x PCIe 3.0 x16 (supports x2 mode)*
  2 x PCIe 3.0 x1

  *PCIEX16_2 slot will be disabled when either of the PCIEX1 slots is populated
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4
• RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
• Wireless: Wi-Fi 6
  1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.3
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  2 x USB4 (40Gbps) Type-C
  8 x USB 10Gbps (6 Type-A + 2 Type-C)

  Front:
  1 x USB 20Gbps Type-C (up to 60W PD/QC4+)
  1 x USB 20Gbps Type-C
  4 x USB 5Gbps
  4 x USB 2.0
• Back Panel I/O Ports: 2 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen1 USB Type-C
  3 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet
  5 x Audio jacks
  1 x BIOS FlashBack button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  3 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x 4-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
• .: 3 x Addressable Gen2
  1 x Aura RGB
  1 x Clear CMOS
  1 x COM Port
  1 x Front Panel Audio
  1 x S/PDIF Out
  1 x 20-3 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x ASUS Wi-Fi moving antennas
  1 x TUF Gaming sticker
  1 x M.2 Rubber Package
  1 x Screw package for M.2 SSD
  1 x TUF Certification card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.0000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
