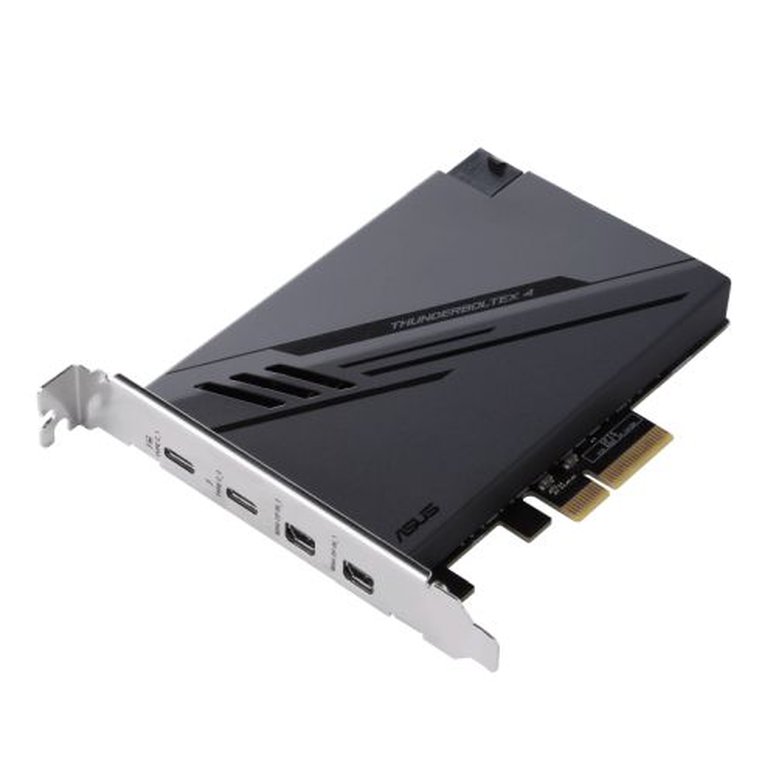

Asus ThunderboltEX 4 expansion card, dual Thunderbolt 4 (USB-C) ports, DisplayPort 1.4, PCIe 3.0 x4 interface


• Intel-certified Thunderbolt 4 add-on card
• 40 Gbps bi-directional bandwidth for superfast data transfers and video output
• Dual Thunderbolt 4 ports (USB-C), with support for up to five Thunderbolt devices in a daisy chain
• DisplayPort 1.4 for 8K Ultra HD support

Description

Specification

• Type: Thunderbolt Card
• Ports: "2 x USB Type-C (Support Thunderbolt 4 & USB 4)
  - Type-C_1 up to 20V/5A, 100W quick charge, Type-C_2 up to 9V/3A, 27W
  2 x mini DisplayPort IN ports"
• Transfer Rate(s): up to 40Gbps for Thunderbolt devices
• Host Interface(s): PCIe 3.0 x4
• Internal Interfaces: 1 x 6-pin PCIe power connector for quick charge function
  1 x USB 2.0 header
  1 x Thunderbolt header
• Additional Features: See Overview
• Dimensions: 11.77 x 18.05 cm
• Package Contents: ThunderboltEx 4 card
  2 x mini DisplayPort cables
  1 x USB 2.0 cable
  1 x 14-1 pin Thunderbolt header cable
  1 x User manual
  1 x Support DVD with Thunderbolt driver
• Package Type: Retail
• Package Weight: 0.5500 kg
• Warranty: 1 Year
• #Hide#Host Interface: PCI Express
