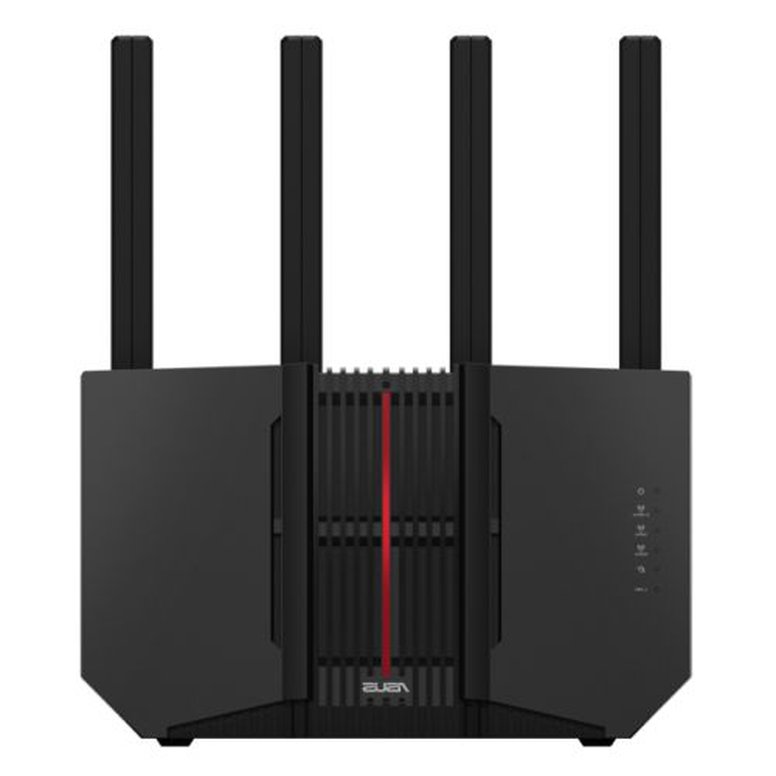

BE9700 Tri-band WiFi 7 Router, supports new 320MHz bandwidth & 4096-QAM, Multi-link operation (MLO), AI WAN detection, AiMesh support, subscription-free network security, and comprehensive VPN features, Smart Home Master

• Beyond-fast WiFi 7 (802.11be) - New 320MHz channels in the 6 GHz band and 4096-QAM significantly increase network capacity and throughput, with speeds of up to 9700 Mbps
• Multi-link Operation - Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers
• Versatile WAN configuration options - Establish always-on internet through AI WAN detection and a convenient USB port ready for 4G LTE and 5G Mobile tethering.
• Smart Home Master - Easily establish up to three SSIDs with Smart Home Master for easy IoT device setup and management, instant VPN connections, and convenient parental controls.
• Subscription-free network security - Commercial-grade AiProtection Pro powered by Trend Micro, plus a one-tap security scan and Safe Browsing
• Comprehensive VPN features - Including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi
• Hassle-free AiMesh Extendable Network - AiMesh extendable routers enable the whole home seamless roaming with rich, advanced features.

Description

Specification

• Type: Cable Router
• Connectivity: Wireless
• Wi-Fi Rating: BE9700
• Max Single Band Wi-Fi Rate: 5764 Mbps
• Max Wired Transfer Rate: 10 Gbps
• Bands: Tri Band
• Signal Rate: 2.4GHz: up to 1032 Mbps
  5GHz: up to 2882 Mbps
  6GHz: up to 5764 Mbps
• Interface(s): 1 x 10Gbps for WAN/LAN
  1 x 2.5Gbps for WAN/LAN
  3 x 2.5 Gbps for LAN
  1 x USB 3.2 Gen1
• Standards: IEEE 802.11a
  IEEE 802.11b
  IEEE 802.11g
  WiFi 4 (802.11n)
  WiFi 5 (802.11ac)
  WiFi 6 (802.11ax)
  WiFi 6E (802.11ax)
  WiFi 7 (802.11be)
  IPv4
  IPv6
• Frequency: "2.4GHz, 5GHz & 6GHz"
• Button(s): "WPS Button, Reset Button, Power Switch"
• Power Supply: AC Input: 110V~240V(50~60Hz)
  DC Output: 12 V with max. 3 A current
• Antenna(s): 4 x External Antennas
• Dimensions: 247.18 x 101.59 x 287.47 mm
• Wireless Functions: Wireless Router Mode
  AiMesh Node Mode
  Access Point Mode
  Media Bridge Mode
  Repeater Mode
  OFDMA
  Beamforming: standard-based and universal
  4096-QAM high data rate
  20/40/80/160/320 MHz bandwidth
  MU-MIMO
  UTF-8 SSID
  WiFi MAC Address Filter (Max MAC Filters : 64)
  Wireless Scheduler
  Airtime Fairness
  RADIUS Client
  Universal Beamforming
  Explicit Beamforming
• Security: "AiProtection
  VPN
  WPA/WPA2/WPA3 Personal
  WPA/WPA2/WPA3 Enterprise
  Open System & OWE
  WPS
  Lets Encrypt
  DNS-over-TLS
  SSH
  Security Scan
  Firewall
  Parental Controls
  Guest Network Pro Encryption: Open system, WPA/WPA2/WPA3-Personal"
• DHCP: DHCP Server
• Port/NAT Forwarding: Port forwarding
  Max Port Forwarding Rule : 64
• VPN Support: Instant Guard
  VPN Client L2TP
  VPN Client Open VPN
  VPN Client PPTP
  VPN Client WireGuard
  VPN Server IPSec
  VPN Server Open VPN
  VPN Server PPTP
  VPN Server WireGuard
  VPN Fusion
  Support Surfshark
• Management: Web: ASUSWRT
  App: ASUS Router APP
• Dynamic DNS: DDNS
• USB Application: "4G / 5G Auto Mobile Tethering
  File System: HFS+, NTFS, vFAT, ext2/3/4
  Safely Remove Disk
  AiCloud
  Download Master
  AiDisk
  Media Server
  Time Machine
  Samba Server
  FTP Server
  Shared Folder Privileges"
• Additional Features: 2.0GHz quad-core processor
  256 MB Flash and 1 GB DDR4 RAM
  Adaptive QoS
  Traditional QoS
  Traffic Monitor
  Traffic Analyzer
  IGMP Snooping
  IPTV
  LAN Link Aggregation
  Manually Assign IP Address
  Smart Home Master
• Package Contents: RT-BE92U WiFi 7 Tri-band Router
  Wall mount kit
  RJ-45 cable
  Power Adapter
  Quick Start Guide
  Warranty Card
• Package Type: Retail
• Package Weight: 1.8250 kg
• Warranty: 3 Years
• #Hide#Wireless Standard: Wi-Fi 7 (802.11be)
• #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
