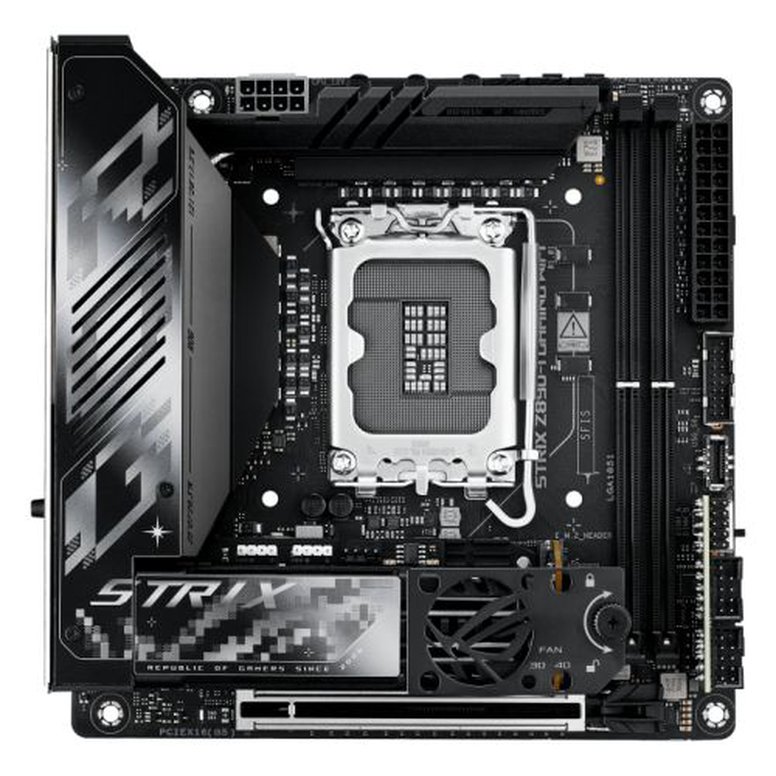

Asus ROG STRIX Z890-I GAMING WIFI, Intel Z890, 1851, Mini ITX, 2 DDR5, HDMI, 2 TB4, Wi-Fi 7, 2.5G LAN, 2x M.2, Strix Hive II

ASUS

£509.15

Out of stock

ASUS

Asus ROG STRIX Z890-I GAMING WIFI, Intel Z890, 1851, Mini ITX, 2 DDR5, HDMI, 2 TB4, Wi-Fi 7, 2.5G LAN, 2x M.2, Strix Hive II

£509.15

Out of stock

Product Details

ASUS Website

ROG STRIX Z890-I GAMING WIFI

The ROG Strix Z890-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. With the addition of the HIVE II and FPS card, this motherboard delivers the power and speed needed for elite gaming and demanding AI applications.

Intel Z890 LGA 1851 Mini-iTX motherboard
Advanced AI PC-ready
10+1+2+1 power stages, DDR5 slots
DIMM Flex
AEMP III, WiFi 7 with ASUS WiFi Q-Antenna
Two PCIe 5.0 M.2 slots with M.2 Q-Release Duo
PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim
Full support for next-gen graphics card
Two Thunderbolt™ 4 ports
Two USB 20Gbps Type-C® connectors
ASUS AI Advisor
AI Overclocking
AI Cooling II
AI Networking II

Asus AI Intelligence

Asus AI Advisor - Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
AI Overclocking - ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
AI Cooling II - Balance the thermals and acoustics of any build with a single click.
AI Networking II - AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7

Overclocking

NPU Boost

The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

Memory

DDR5 Domination - Enhanced signal routing can push enthusiast-grade kits well beyond the 8 GT/s threshold on the Strix Z890-I.
DIMM FIT - DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
AEMP III - ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.
DIMM FLEX - DIMM Flex provides enthusiasts with a powerful new way to overclock their DDR5 memory modules.

ROG STRIX Ultimate Power Design

8-pin ProCool II Power Connector - A ProCool II connector is precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.
10+1+2+1 Power Stages - The VRM features 10+1+2+1 power stages, each rated to handle up to 110 amps
Alloy Chokes and Durable Capacitors - Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
Ten-Layer PCB - A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

Cooling

M.2 and Chipset Heatsinks - To save space, both on-board M.2 slots and heatsinks are stacked together over the chipset. And to keep the thermals of installed high-performance drives in check, the entire array is cooled by an embedded fan.
VRM Heatsink - The VRM heatsink extends over the rear I/O to maximize surface area and include a VRM fan for active cooling to deftly handle the power thermals of the latest Intel processors, while leaving clearance for large CPU coolers.
High-Conductivity Thermal Pads - High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.
CPU Fan Headers - A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.
AIO Pump Fan Header - A dedicated PWM/DC header connects self-contained water-cooling setups.
4-pin Fan Headers - The Strix Z890-I features five chassis fan headers, each supporting auto-detection of PWM or DC fans.
Fan Bracket - Introducing the versatile ROG Strix Z890-I Gaming Wifi Fan Bracket, designed to ensure high airflow for this motherboard’s dual M.2 slots or DRAM slots when you add a 30 mm or 40 mm fan. This addition to your compact gaming build combines functionality with signature ROG aesthetics, and it can accommodate a variety of cooling needs.

Leading Connectivity

ROG STRIX Hive II - The ROG Hive II is an exclusive accessory designed to deliver user-friendly access to hardware and software features.
ROG FPS Card - The ROG FPS card groups I/O onto a vertically-mounted card, saving valuable motherboard space and tidying cable management.
WiFi 7 - The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels on the 6GHz band and 4K QAM. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
Asus WiFi Q-Antenna - Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
Intel 2.5Gb Ethernet - Onboard Intel® 2.5Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.
PCIe 5.0 - The Strix Z890-I offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is also protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. Each of the M.2 slots offers read and write speeds up to a blistering 16 GB/s, while the remaining slot can deliver still-impressive 8 GB/s transfers. Both M.2 slots are covered with substantial heatsinks to dispatch the heat of next-gen storage.
Two Thunderbolt 4 Type-C® Ports - Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.

EZ PC DIY

M.2 Q-Release Duo - M.2 Q-Release Duo creates space for two M.2 SSDs where only one would normally fit, and where a pair of PCIe 5.0 NVMe drives can operate at full speed. This solution deftly enhances cooling and helps ensure peak SSD performance. Its futuristic aesthetic also communicates high-tech capabilities, making it ideal for gaming rigs where form meets function. This design prepares your system for the future and offers a unique build experience, solidifying its place as a cutting-edge component in compact gaming setups.
PCIe® Slot Q-Release Slim - With PCIe® Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
Q-Antenna - With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
BIOS FlashBack - BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

BIOS

BIOS Q-Dashboard - Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
UEFI BIOS - The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

Software Utilities

TurboV Core

Intuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.

Dolby ATMOS

ROG and Dolby® have partnered to bring superior gaming audio quality to users. Dolby Atmos expands on traditional surround sound systems by adding height channels, which enables immersive three-dimensional audio to be perceived from above, below and around the listener.

ASUS GlideX

ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.

HWiNFO

HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.

Asus Driver Hub

ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.

AIDA64 Extreme

The ROG Strix Z890-I includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.

Armoury Crate

Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

Product Specification

Description

Specification

Motherboard Type: Desktop
Form Factor: Mini ITX
Socket: Intel 1851
Chipset: Intel Z890
#Hide#DDR Type: DDR5
CPU Support: Support Intel Core Ultra Processors (Series 2)
Click here for CPU support
RAM Technology: "DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Supports Intel XMP
Supports DIMM Flex
ASUS Enhanced Memory Profile III

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function"
RAM Slots: 2 x DIMM
RAM Speeds: Up to 8800+MT/s (OC)
Maximum Memory: 96GB
Graphics: Integrated Graphics
Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
2 x Thunderbolt 4 support DisplayPort and Thunderbolt video outputs
PCI/PCI Express: 1 x PCIe 5.0 x16 slot (supports x16 mode)
Storage: 2 x SATA III
2 x M.2

M.2_1 (2230/2242/2260/2280) - PCIe 5.0 x4
M.2_2 (2230/2242/2260/2280) - PCIe 5.0 x4
RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1, SATA RAID 0/1"
Wireless: "Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4"
LAN: 2.5GB LAN
Audio: ROG Strix Hive II Audio Features:
ROG Hyper-Grounding Technology
ESS SABRE9260Q DAC
Silver-plated audio jacks
Dedicated audio PCB layers
USB Ports Supported: Rear:
2 x Thunderbolt 4 (USB Type-C)
1 x USB 20Gbps Type-C
3 x USB 10Gbps Type-A
1 x USB 5Gbps Type-A
2 x USB 2.0

Front:
1 x USB 20Gbps Type-C
2 x USB 5Gbps

ROG STRIX HIVE II:
2 x USB 10Gbps (1 Type-C + 1 Type-A)

ROG FPS Card:
2 x USB 2.0 headers support additional 3 x USB 2.0 ports
Back Panel I/O Ports: 2 x Thunderbolt 4 (USB Type-C)
1 x USB 20Gbps Type-C
3 x USB 10Gbps Type-A
1 x USB 5Gbps Type-A
2 x USB 2.0
1 x HDMI
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet
1 x BIOS FlashBack button
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin AIO Pump
1 x 4-pin Chassis Fan
1 x Extra Flow Fan
1 x 24-pin Main
1 x 8-pin +12V CPU
2 x M.2 (Key M)
1 x USB 20Gbps Type-C
1 x USB 5Gbps
2 x Addressable Gen2
1 x 2-pin Power Button
.: 1 x Thermal Sensor
2 x USB Type-C connectors to install ROG FPS card

ROG FPS card:
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Clear CMOS header
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3 additional
USB 2.0 ports
Accessories: 1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
1 x Panel Cable
1 x ROG FPS Card
1 x ROG STRIX HIVE II
1 x USB Type-C power connection cable
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x ROG key chain
1 x ROG Strix stickers
1 x Quick start guide
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.5400 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
