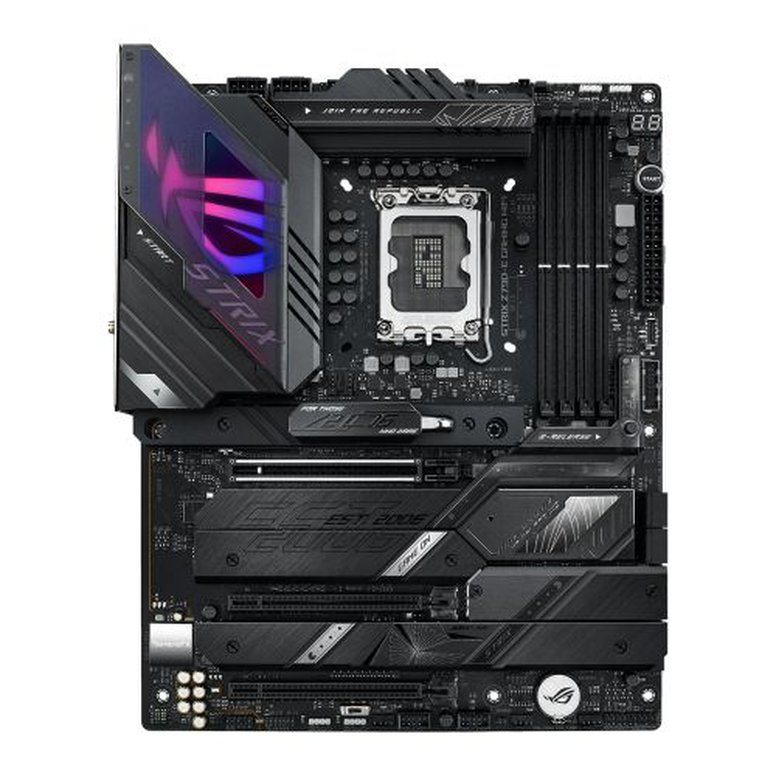

Slash the 6GHz barrier in style with the Strix Z790-E. Translucent shrouds outline its RGB ignition panel, alluding to its ability to jump into lightspeed under the guidance of AI Overclocking and a hyper-reactive VRM. DDR5 enhancements and an assortment of PCIe 5.0 options ramp up velocity even further, and setup is a breeze thanks to its unique Q-Design feature set.
- AI Overclocking - Effortless performance boost
- AI Cooling II - One-click fan tuning
- PCIe 5.0 - x1 PCIe 5.0 x16 slot, and x1 onboard M.2
- USB 3.2 Gen 2x2 - x1 I/O port, and x1 connector for PD 3.0 at 30W
- 18 + 1 Power Stages - Robust Power Solution
- DDR5 Memory - 7800+ MT/s, AEMP II, XMP
- WiFi 6E
- DIY Friendly
DIY-Friendly Features
PCIe Slot Q-Release
A physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
Clear CMOS
The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.
BIOS Flashback
BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
Q-Code
The on-board LED panel shows 2-digit diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.
Start Button
This convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.
All-Round Performance
Every aspect of the Strix Z790-E is finely tuned so the processor, memory, and connected devices can run in lockstep in order to achieve breakneck speeds.
Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
PCIe 5.0
Fully embracing the new standard, the Strix Z790-E offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One of the onboard M.2 slots is geared for blistering 16 GB/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.
Power Design
Power Architecture
18 + 1 power stages each rated to 90A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
Alloy Chokes And Durable Capacitors
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
Dual 8-pin Procool Ii Power Connectors
ProCool II connectors are precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.
Eight-Layer PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
Memory
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix Z790-E, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.
DDR5 domin$Ation
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix Z790-E, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.
AEMP II
ASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP's second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Strix Z790-E to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support.
Cooling
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix Z790-E, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.
VRM Heatsink Array
Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors
M.2 Combo-Sink
An M.2 heatsink with a direct-contact heat pipe efficiently transfers thermal energy away from a mounted drive and into the path of chassis airflow, ensuring optimal operating temperatures.
M.2 backp$Late
An integrated backplate on the mid-board M.2 slot helps ensure that a high-performance PCIe 5.0 drive can deliver peak performance, even when airflow is restricted.
M.2 heatsinks
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
CPU fan headers
A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.
AIO Pump Fan Header
A dedicated PWM/DC header connects self-contained water-cooling setups.
4-pin Fan Headers
The Strix Z790-E features five chassis fan headers, each supporting auto-detection of PWM or DC fans.
Leading Connectivity
Lightning-fast networking keeps the Strix Z790-E in sync with the outside world for uninterrupted gaming and creation. In addition to breakneck data transfers, connected devices can now top-up quickly thanks to 30W charging support. And SupremeFX audio makes sound clear and punchy to shape truly immersive experiences.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel 2.5 Gbps Ethernet.
USB 3.2 Gen 2X2
The Strix Z790-E comes loaded with two USB 3.2 Gen 2x2 Type-C connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.
SupremeFX
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z790-E implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
Play In Style
Black PCB and heatsinks compliment most hardware, and customizable RGB lighting furthers the flexibility. Pair the Strix Z790-E with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
Undeniably ROG STRIX
Diagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix Z790-E bears all of them with pride. But for this generation, translucent diffusers line the I/O shroud and the Q-Release array, softly contrasting the metallic heatsinks nearby.
Outshine The Competition
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
Cooler Compatibility
The ROG Strix Z790-E bears the same LGA 1700 socket as the Z690 models, so it is backward compatible with all coolers that supported the previous generation, including all AIO offerings from ASUS and ROG.
The ROG STRIX Ecosystem Awaits
Level up your game with ROG Strix. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.
Software Utilities
A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Optimization
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
MEMTEST86
For diagnostic convenience, MemTest86 has been pre-installed into the ROG UEFI. Run the test to pinpoint memory issues without the need to start up the OS or attach a USB drive. Memory test results are stored in the BIOS archives for later reference.
UI of EZ Mode
Intuitive Graphical Fan Controls
Fine-tune individual fans simply by dragging a curve with the mouse.
Storage Information
View SATA port details for easy device recognition.
Clock Adjustment
Click on the settings icon to quickly change time and date settings.
Gaming Audio
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
DTS Sound Unbound
Through the pre-loaded DTS Sound Unbound app, the ROG Strix Z790-E envelops you in rich audio, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Microsoft spatial sound technology, DTS Sound Unbound creates an audial 3D space - putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep, or other sound in your virtual environment.
AIDA64 Extreme
The ROG Strix Z790-E includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate's Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
You can use Armoury Crate to download drivers, tools, and user manuals, and to register products. It also taps into a special news feed that connects you to the global ASUS gaming community.
