ASUS

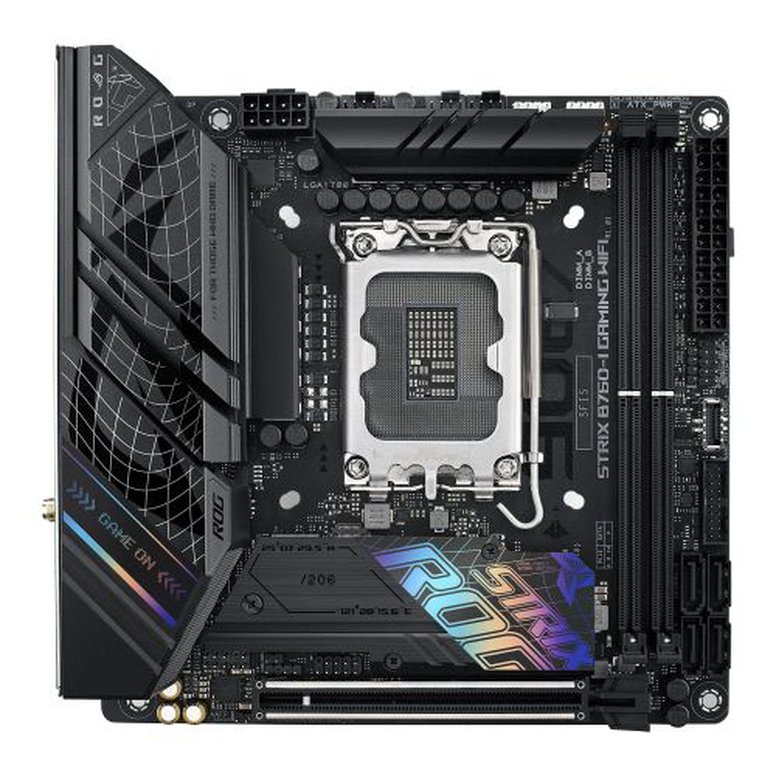

Asus ROG STRIX B760-I GAMING WIFI, Intel B760, 1700, Mini ITX, 2 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2
£199.02
Asus ROG STRIX B760-I GAMING WIFI, Intel B760, 1700, Mini ITX, 2 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2
ASUS
Asus ROG STRIX B760-I GAMING WIFI, Intel B760, 1700, Mini ITX, 2 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2
£199.02
Product Details




Let your rig run wild with the ROG Strix B760-I, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency WiFi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 13th Gen support thanks to its powerful VRM and thermal solution.



  • x1 PCIe 5.0 x16 slot
  • USB 3.2 Gen 2x2 Type-C rear I/O port
  • 8 + 1 Power Stages
  • DDR5 Memory 7600+ MT/s, AEMP II, XMP
  • WiFi 6E
  • DIY-Friendly Design




All-Round Performance

Bulking up where it counts, the ROG Strix B760-I bears an octet of power stages mounted with a hefty cooling array to give you all the fury of Raptor Lake. To pack on the FPS, the PCIe 5.0 slot is primed for the mightiest graphics card you can fit your chassis, and the memory slots can handle dizzying DDR5 speeds.




Leading Connectivity

Massive throughput flows through the ROG Strix B760-I via advanced networking adapters and high-bandwidth USB connectors, allowing you to rip through games with no interference, and crystal clear on-board audio keeps you immersed in the experience.




Play In Style

The black shrouds and PCB of the Strix B760-I pair well with most products from the diverse ROG ecosystem, all while making your build distinct with a dash of polychromatic contrast.




Software Utilities

Customize your rig through a suite of intuitive software and firmware utilities that let you maximize performance and tweak your experience to your liking.








                                             ** Click here for full product details **
Product Specification

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Mini ITX
  • Socket: Intel 1700
  • Chipset: Intel B760
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 7600(OC)
  • Maximum Memory: 96GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 5.0 x16
  • Storage: 4 x SATA III
    1 x M.2 (2260/2280) - PCIe
    1 x M.2 (2242/2260/2280) - PCIe
  • RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
  • Wireless: Wi-Fi 6E
    2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band
    Bluetooth v5.3
  • LAN: 2.5GB LAN
  • Audio: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
  • USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
    1 x USB 3.2 Gen1 Type-C (at back)
    3 x USB 3.2 Gen1 Type-A (at back)
    2 x USB 3.2 Gen1 (at mid-board)
    5 x USB 2.0 (3 at back, 2 at mid-board)
    1 x Front Panel Type-C USB 3.2 Gen2 Header"
  • Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
    4 x USB 3.2 Gen1 (3 Type-A, 1 Type-C)
    3 x USB 2.0
    1 x HDMI
    1 x DisplayPort
    1 x Wi-Fi Module
    1 x Intel 2.5Gb Ethernet
    5 x Audio jacks"
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin Chasis Fan
    1 x 4-pin AIO Pump
    1 x 24-pin Main
    1 x 8-pin +12V
    2 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen2 Type-C
    1 x USB 3.2 Gen1
    1 x USB 2.0
    1 x Addressable Gen2
    1 x Aura RGB
  • .: 1 x Clear CMOS
    1 x Front Panel Audio
    1 x S/PDIF Out
    1 x Speaker
    1 x 10-1 pin System Panel
    1 x Thermal Sensor
  • Accessories: 2 x SATA 6Gb/s cables
    1 x ROG USB2.0 splitter cable
    1 x Panel cable
    1 x Thermal pad for M.2
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties package
    1 x M.2 Rubber Package
    2 x Screw packages for M.2 SSD
    1 x M.2 bracket
    1 x ROG key chain
  • .: 1 x ROG STRIX stickers
    1 x ROG STRIX thank you card
    1 x User manual
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.8900 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
  • #Hide#RGB Lighting: Out of the box RGB lighting
