ASUS

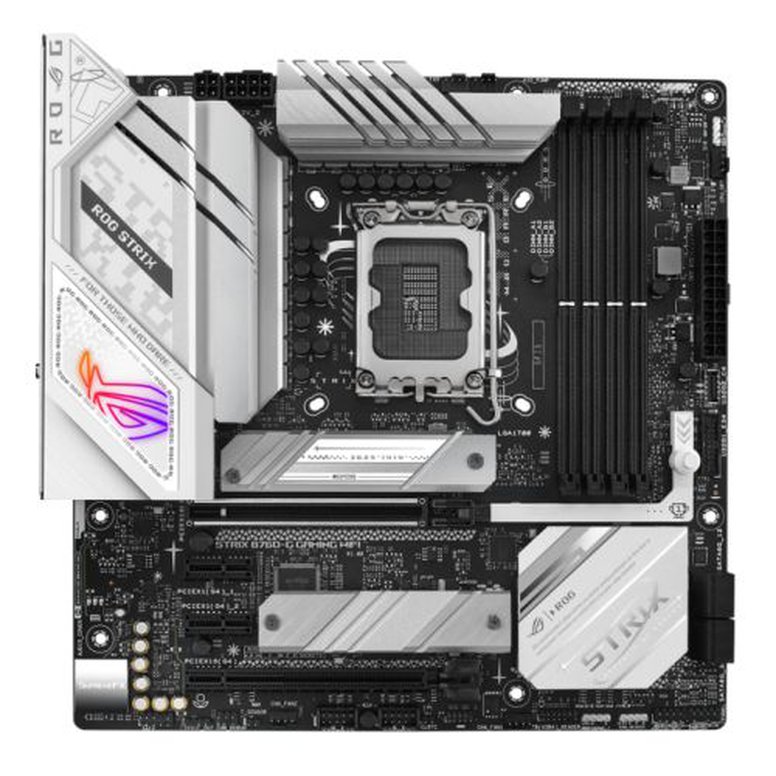

Asus ROG STRIX B760-G GAMING WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2
£222.71
Asus ROG STRIX B760-G GAMING WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2
ASUS
Asus ROG STRIX B760-G GAMING WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2
£222.71
Product Details




Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig.



It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.



  • DDR5 Memory - 7800+ MT/s, AEMP II, XMP
  • PCIe. 5.0 - x1 PCIe 5.0 x16 slot
  • USB 3.2 Gen 2x2 Type-C rear I/O port
  • 12 + 1 Power Stages
  • WiFi 6E
  • DIY-Friendly Design






All-Round Performance

A finely tuned power solution and blistering-fast DDR5 memory give the ROG Strix B760-G an edge over its compact peers. Well-placed and optimized heatsinks cover the VRM and M.2 slots to keep performance pushed to the max, even in cramped quarters.





Leading Connectivity

The Strix B760-G is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.





Play In Style

The Strix B760-G features a black PCB, bare heatsinks, and white accents, allowing it to pair with almost any component or peripheral. Customizable RGB lighting furthers its flexibility for a fully customized gaming setup that reflects your personal style.





Software Utilities

A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.






                                             ** Click here for full product details **
Product Specification

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel B760
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 7800+(OC)
  • Maximum Memory: 192GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 5.0 x16
    1 x PCIe 4.0 x16 (supports x4 mode)
    2 x PCIe 4.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) - PCIe
    1 x M.2 (2242/2260/2280) - PCIe
  • RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
  • Wireless: Wi-Fi 6E
    2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band
    Bluetooth v5.3
  • LAN: 2.5GB LAN
  • Audio: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
  • USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
    1 x USB 3.2 Gen2 Type-A (at back)
    1 x USB 3.2 Gen1 Type-C (at back)
    4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
    8 x USB 2.0 (4 at back, 4 at mid-board)
    1 x Front Panel Type-C USB 3.2 Gen2 Header"
  • Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
    1 x USB 3.2 Gen2 Type-A
    3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C)
    4 x USB 2.0
    1 x HDMI
    1 x DisplayPort
    1 x Wi-Fi Module
    1 x Intel 2.5Gb Ethernet
    5 x Audio jacks
    1 x BIOS FlashBack button "
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    1 x 4-pin AIO Pump
    2 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    1 x 4-pin +12V
    2 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen2 Type-C
    1 x USB 3.2 Gen1
    2 x USB 2.0
  • .: 3 x Addressable Gen2
    1 x AURA RGB
    1 x Clear CMOS
    1 x Front Panel Audio
    1 x S/PDIF Out
    1 x 20-3 pin System Panel
    1 x Thermal Sensor
    1 x Thunderbolt (USB4)
  • Accessories: 2 x SATA 6Gb/s cables
    1 x Thermal pad for M.2
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties pack
    1 x Rubber Package for M.2
    1 x Q-Latch package for M.2
    1 x ROG key chain
    1 x ROG Strix stickers
    1 x ROG Strix thank you card
    1 x User manual
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.7800 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
  • #Hide#RGB Lighting: Out of the box RGB lighting
