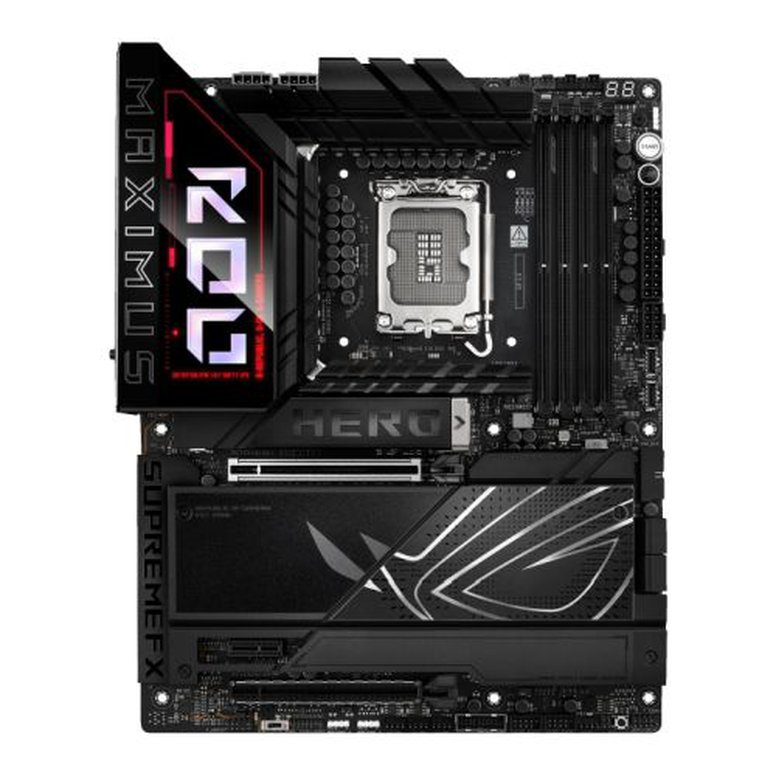

Asus ROG MAXIMUS Z890 HERO, Intel Z890, 1851, ATX, 4 DDR5, HDMI, 2 TB4, Wi-Fi 7, 5G & 2.5G LAN, PD 60W, RGB, 6x M.2

ASUS

£772.06

ASUS

Asus ROG MAXIMUS Z890 HERO, Intel Z890, 1851, ATX, 4 DDR5, HDMI, 2 TB4, Wi-Fi 7, 5G & 2.5G LAN, PD 60W, RGB, 6x M.2

£772.06

Add to Cart

Product Details

ASUS Website

ROG MAXIMUS Z890 HERO

The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.

Intel® Z890 LGA 1851 ATX motherboard
Advanced AI PC-ready
22+1+2+2 power stages
NPU Boost
DDR5 slots with NitroPath DRAM Technology
DIMM Flex
AEMP III
WiFi 7 with ASUS WiFi Q-Antenna
Three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost
SlimSAS connector
PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim
Full support for next-gen graphics cards
Two Thunderbolt™ 4 ports
USB 20Gbps Type-C® front-panel connector with Quick Charge 4+ up to 60W
USB Wattage Watcher
ASUS AI Advisor
AI Overclocking
AI Cooling II
AI Networking II
Polymo Lighting II

Asus AI Intelligence

Asus AI Advisor - Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
AI Overclocking - Tuning is now faster and smarter than ever before.
AI Cooling II - Balance the thermals and acoustics of any build with a single click.
AI Networking II - AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7

Overclocking

NPU Boost - The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%
Differential Sensing - Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z890 Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.

Memory

DDR5 Domination - Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 8 GT/s mark on the ROG Maximus Z890 Hero
NitroPath DRAM Technology - Frequency up to 400 MT/s higher slot retention force enhanced by 57%
DIMM FIT - DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
AEMP III - ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.
DIMM FLEX - DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.

ROG STRIX Ultimate Power Design

8 + 8-pin ProCool II power connectors - Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
22+1+2+2 power stages - The VRM features 22+1+2+2 power stages, each rated to handle up to 110 amps
10K black metallic capacitors - Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
MicroFine alloy chokes - Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.

Cooling

VRM and aluminum I/O heatsink - A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation
High-conductivity thermal pads - Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
M.2 heatsinks and backplates - Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and four of six onboard M.2 slots have dedicated backplates for additional heat dissipation
Chipset heatsink - A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.
Thermal Management - Multiple temperature sources, 4-pin fan headers, AIO pump header
Cooler Compatibility - ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new Z890 motherboards, empowering you to build your dream gaming rig.

Leading Connectivity

M.2 Slots with ROG M.2 PowerBoost - The ROG Maximus Z890 Hero features three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard, all of which support ROG M.2 PowerBoost to help ensure that every onboard M.2 device can operate simultaneously at optimal performance.
PCIe 5.0 Expansion Slots - The primary PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim fully supports next-gen graphics cards.
WIFI 7 - The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6, thanks to tech like 320MHz channels on the 6GHz band and 4K QAM. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT
Asus WiFi Q-Antenna - Dual transceivers support the 2.4, 5 and 6GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
2.5Gb Ethernet - Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5Gbps Ethernet.
5Gb Ethernet - Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5Gbps Ethernet.
Two Thunderbolt 4 Type-C® Ports - Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. The Thunderbolt Display function supports up to 8K with DSC. Please see specifications for more details.
One USB 20Gbps & One USB 10Gbps Type-C Front Panel Connectors - The USB 20Gbps front-panel connector features Quick Charge 4+ technology that can rapidly charge devices up to 60W.
SupremeFX - ROG SupremeFX audio technology delivers an exceptional 110 dB signal-to-noise ratio to the line-in jack for pristine recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS® ES9219 Quad DAC capable of reaching -114dB THD+N for superior front-panel output. This combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track
Dolby Atmos - Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.

EZ PC DIY

PCIE SLOT Q-Release Slim - With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
M.2 Q-Release - The M.2 heatsink features a convenient switch* to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
M.2 Q-Slide - This new sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation.
New M.2 Q-Latch - The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.
Q-Antenna - With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
Q-Code - The on-board LED panel shows 2-digit diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.
Start Button - This convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.
Q-LED - The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components CPU, RAM, graphics card, storage devices are functioning normally during startup. Builders can use the Q-LED feature to correct power delivery issues affecting their motherboard, and it can also alert them when memory modules have not been properly installed--even before attempting to boot a newly built PC.
Clear CMOS & BIOS Flashback - The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected. BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

BIOS

BIOS Q-Dashboard - Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
Advanced Mode - When you’re ready for a deeper dive, delve into the UEFI’s Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.

Software Utilities

ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.

TurboV Core

Intuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.

Seamless Dual-PC Sharing with Thunderbolt™ Share

Experience a revolutionary way to interact with two PCs using Thunderbolt™ Share—the ultrafast connectivity solution that transforms your dual-PC setup. Seamlessly share screens, keyboards, mice, storage and files between two computers, with the unparalleled speed of Thunderbolt™ technology.

Dolby Atmos

Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.

ASUS GlideX

ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.

HWiNFO

HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.

AIDA64 Extreme

The ROG Maximus Z890 Hero includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.

Armoury Crate

Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

Glow your gaming world with aura sync

Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

Product Specification

Description

Specification

Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1851
Chipset: Intel Z890
#Hide#DDR Type: DDR5
CPU Support: Support Intel Core Ultra Processors (Series 2)
Click here for CPU support
RAM Technology: "DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
DIMM Fit
Supports Intel XMP
Supports DIMM Flex
ASUS Enhanced Memory Profile III
NitroPath DRAM Technology

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function"
RAM Slots: 4 x DIMM
RAM Speeds: Up to 8800+MT/s (OC)
Maximum Memory: 192GB
Graphics: Integrated Graphics
Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
2 x Thunderbolt 4 support DisplayPort and Thunderbolt video outputs
PCI/PCI Express: "Intel Core Ultra CPUs (Series 2):
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)*

Intel Z890 Chipset:
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot

*When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.

"
Storage: 4 x SATA III
6 x M.2
SlimSAS slot*

Intel Core Ultra CPUs (Series 2):
M.2_1 (2242/2260/2280/22110) - PCIe 5.0 x4
M.2_2 (2242/2260/2280) - PCIe 4.0 x4
M.2_3 (2242/2260/2280) - PCIe 5.0 x4
M.2_4 (2242/2260/2280) PCIe 5.0 x4

Intel Z890 Chipset:
M.2_5 (2242/2260/2280) - PCIe 4.0 x4
M.2_6 (2242/2260/2280) - PCIe 4.0 x4

*SlimSAS slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately.
RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5"
Wireless: "Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4"
LAN: 5GB LAN & 2.5GB LAN
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
USB Ports Supported: Rear:
2 x Thunderbolt 4 (USB Type-C)
1 x USB 10Gbps Type-C
4 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A

Front:
1 x USB 20Gbps Type-C (up to 60W PD/QC4+)
1 x USB 10Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0
Back Panel I/O Ports: 2 x Thunderbolt 4 (USB Type-C)
1 x USB 10Gbps Type-C
4 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
1 x HDMI
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x W_PUMP+
1 x 24-pin Main
2 x 8-pin +12V CPU
1 x 8-pin PCIe
6 x M.2 (Key M)
4 x SATA 6Gb/s
1 x SlimSAS
.: 1 x USB 20Gbps Type-C
1 x USB 10Gps Type-C
2 x USB 5Gbps
2 x USB 2.0
3 x Addressable Gen2
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio
1 x ReTry button
1 x Start button
.: 1 x 10-1 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt (USB4)
Accessories: 1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
1 x DDR5 fan holder
1 x Thermal pad for M.2 22110
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide packages
1 x ROG stickers
6 x M.2 rubber packages
.: 1 x ROG thank you card
1 x ROG Bottle Opener
1 x USB drive with utilities and drivers
1 x Quick start guide
Additional Features: See Overview
Package Type: Retail
Package Weight: 4.3000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: 5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
#Hide#RGB Lighting: Out of the box RGB lighting
