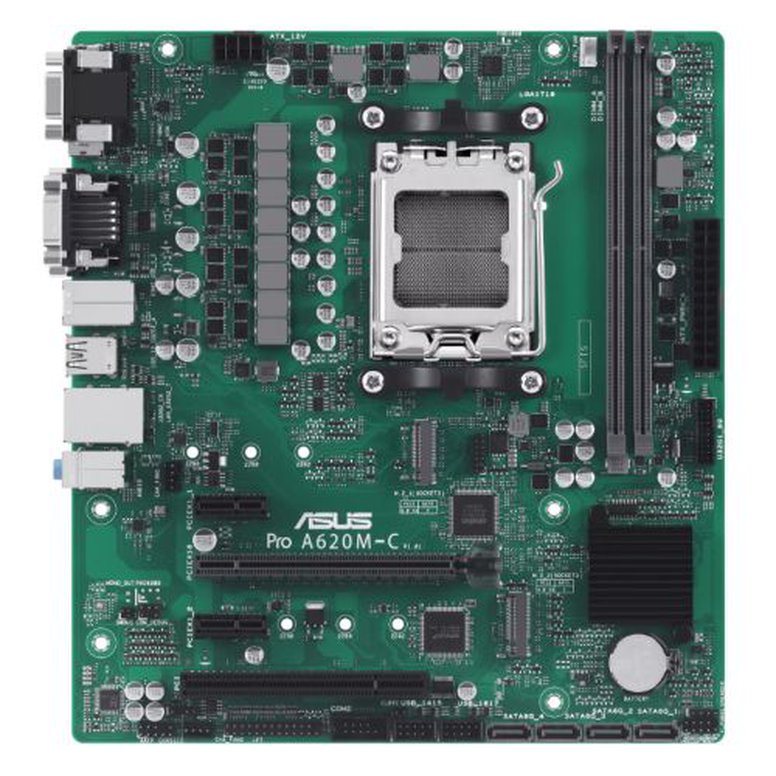

AMD A620 Micro-ATX business motherboard with enhanced security, reliability, manageability and serviceability


• AM5 Socket for AMD Ryzen™ Desktop Processors
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security: A self-recovering BIOS
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast connectivity: DDR5, dual M.2 PCIe 4.0 slots, rear USB 3.2 Gen 2 Type-C® and front USB 3.2 Gen 1 header

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD A620
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
  Supports AMD Extended Profiles for Overclocking (EXPO)
  OptiMem II
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 8000+(OC)
• Maximum Memory: 96GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
  2 x PCIe 3.0 x1
  1 x PCI
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
• RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
• Wireless: -
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "Rear:
  2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)
  1 x USB 3.2 Gen1 Type-A
  3 x USB 2.0

  Front:
  2 x USB 3.2 Gen1
  4 x USB 2.0"
• Back Panel I/O Ports: "2 x USB 3.2 Gen2 (1 Type-A, 1 x Type-C)
  1 x USB 3.2 Gen1 Type-A
  3 x USB 2.0
  1 x DisplayPort
  1 x VGA
  1 x DVI-D
  1 x HDMI
  1 x Realtek 1Gb Ethernet
  1 x COM
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo"
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  1 x Clear CMOS
  1 x Chassis Intrude
  1 x COM Port
  1 x Front Panel Audio
• .: 1 x COM debug
  1 x LPT
  1 x SMBUS
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  2 x M.2 Anchors
  1 x ACC Express Activation Key Card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.1000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
