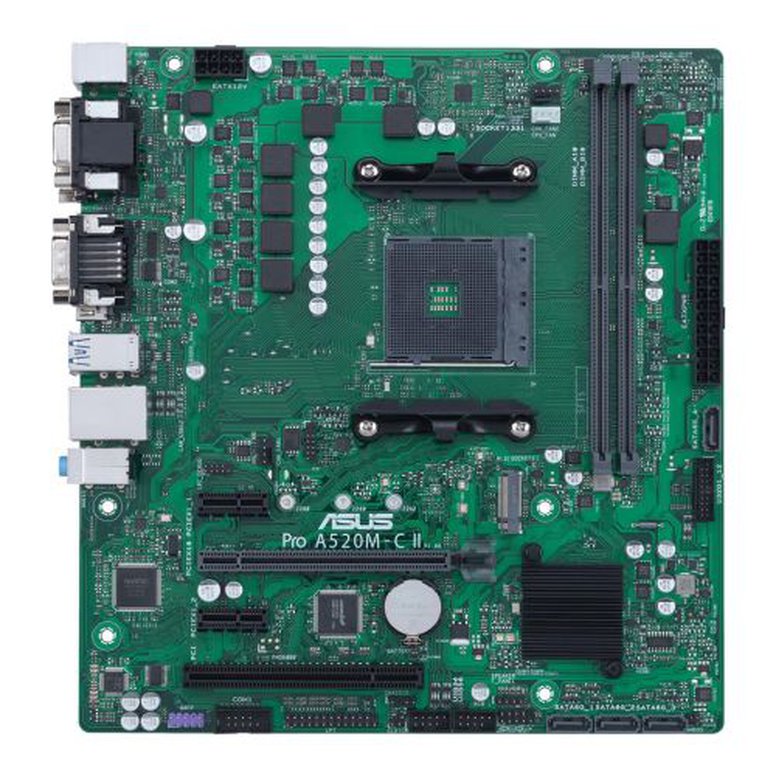

Asus PRO A520M-C II/CSM - Corporate Stable Model

ASUS

Asus PRO A520M-C II/CSM - Corporate Stable Model, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, DP, 1x M.2

£81.34

ASUS

Asus PRO A520M-C II/CSM - Corporate Stable Model, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, DP, 1x M.2

£81.34

Add to Cart

Product Details

ASUS Website

Micro-ATX A520 business motherboard with enhanced security, reliability and manageability

AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
ASUS LPC debug header for more efficient troubleshooting
Supports SMBUS header that connects to a DASH LAN for remote IT management
Innovative moisture-resistant coating to protect the motherboard from harsh environments
Event log for capturing and managing detailed system information
Commercial BIOS kit to make customization faster and more efficient
ASUS Control Center Express (ACCE) to make IT endpoint management easier

ASUS Pro

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Learn more

ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Learn more

** Click here for full product details **

Product Specification

Description

Specification

Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: AMD AM4
Chipset: AMD A520
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x DIMM
RAM Speeds: Up to 4600(O.C)
Maximum Memory: 64GB
Graphics: Integrated Graphics Processor*
Graphics specifications may vary between CPU types
Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI
1 x DisplayPoprt
Multi-GPU Support: -
PCI/PCI Express: 1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x1
1 x PCI
Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe 3.0 x4
RAID: "RAID 0, 1, 10"
Wireless: -
LAN: GB LAN
Audio: Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported: Rear:
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0

Front:
2 x USB 3.2 Gen1
4 x USB 2.0
Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A
2 x USB 2.0 ports Type-A
1 x DisplayPort
1 x D-Sub
1 x DVI-D
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard
1 x PS/2 Mouse
Internal I/O Connectors: 1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main Power
1 x 8-pin +12V Power
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port
1 x Front Panel Audio
.: 1 x LPC debug
1 x LPT
1 x SMBUS
1 x Speaker
1 x 10-1 pin System Panel
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.1000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: GB LAN
