ASUS

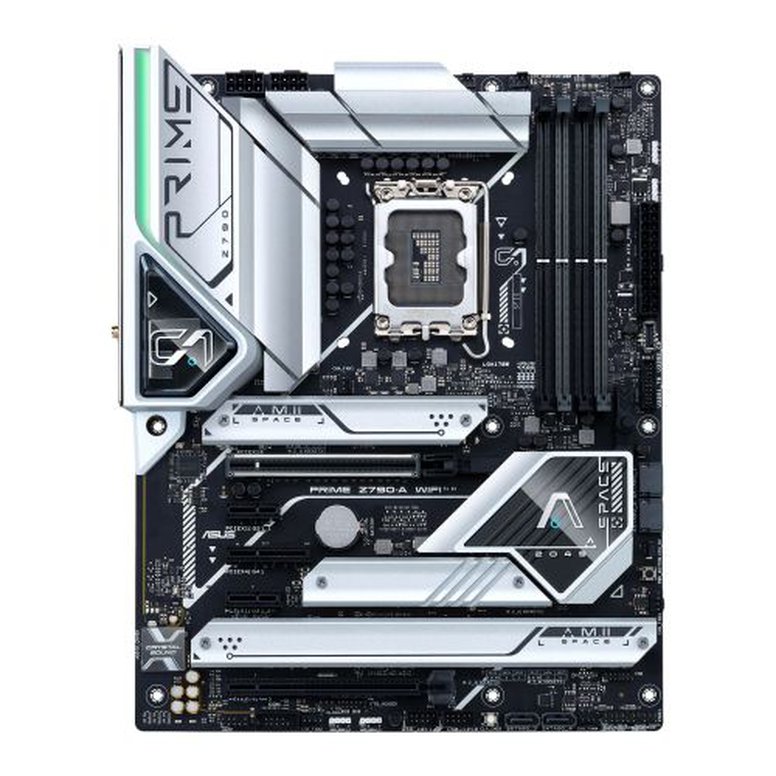

Asus PRIME Z790-A WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2
£285.64
Asus PRIME Z790-A WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2
ASUS
Asus PRIME Z790-A WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2
£285.64
Product Details



The ASUS PRIME Z790-A WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.


ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.



  • 16 + 1 Teamed Power Stages (60A) with Enlarged Heatsinks
  • Gen 5 Slot for Graphics Card
  • AEMP II for Ultimate DDR5 Performance
  • USB 3.2 Gen 2x2 Type-C® & Thunderbolt (USB4®) Support
  • 2.5 Gb Ethernet
  • WiFi 6E
  • Intelligent Control
  • Al Cooling II
  • Customization






Flexibility

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-A WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.





Cooling

PRIME Z790-A WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.





Performance

The PRIME Z790-A WIFI motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.





Customisation

The PRIME Z790-A WIFI motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.




Click here for full details

Product Specification

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: Intel 1700
  • Chipset: Intel Z790
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 7200+(OC)
  • Maximum Memory: 192GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 5.0 x16
    1 x PCIe 4.0 x16 (supports x4 mode)
    1 x PCIe 4.0 x4
    2 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280/22110) - PCIe
    1 x M.2 (2242/2260/2280) - PCIe
    1 x M.2 (2242/2260/2280/22110) - PCIe
    1 x M.2 (2242/2260/2280) - SATA & PCIe
  • RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10"
  • Wireless: Wi-Fi 6E
    2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band
    Bluetooth v5.3
  • LAN: 2.5GB LAN
  • Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
    1 x USB 3.2 Gen2 Type-C (at back)
    2 x USB 3.2 Gen2 Type-A (at back)
    6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
    4 x USB 2.0 (at mid-board)
    1 x Front Panel Type-C USB 3.2 Gen2 Header"
  • Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
    3 x USB 3.2 Gen2 (2 Type-A, 1 Type-C)
    4 x USB 3.2 Gen1 Type-A
    1 x DisplayPort
    1 x HDMI
    1 x Wi-Fi Module
    1 x Intel 2.5Gb Ethernet
    3 x Audio jacks"
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    1 x 4-pin AIO Pump
    4 x 4-pin Chassis Fan
    1 x 24-pin Main
    2 x 8-pin +12V
    4 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen2 Type-C
    1 x USB 3.2 Gen1
    2 x USB 2.0
    3 x Addressable Gen2
  • .: 1 x Aura RGB
    1 x Clear CMOS
    1 x COM Port
    1 x CPU Over Voltage jumper
    1 x Front Panel Audio
    1 x Power button
    1 x SPI TPM (14-1pin)
    1 x 20-3 pin System Panel
    1 x Thunderbolt
  • Accessories: 2 x SATA 6Gb/s cables
    1 x ASUS Wi-Fi moving antenna
    1 x Q-connector
    2 x M.2 Rubber Packages
    1 x Screw package for M.2 SSD
    1 x User guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 2.2000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
  • #Hide#RGB Lighting: Out of the box RGB lighting
