ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2).

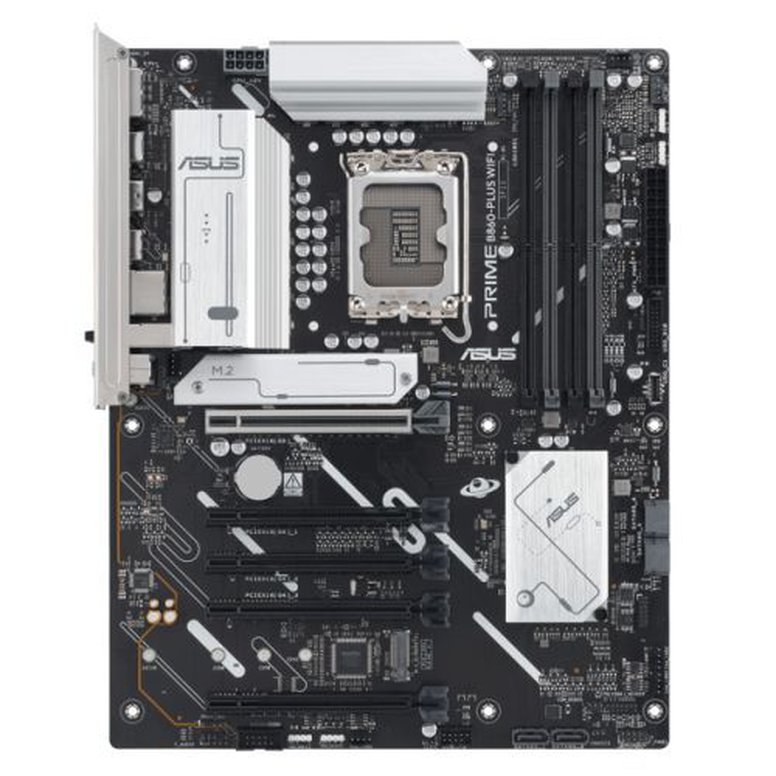

Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
- Intel® B860 (LGA 1851) ATX motherboard
- Advanced AI PC-ready
- 8+1+1+1 80A DrMOS power stages
- DDR5 slots
- PCIe 5.0 x16 SafeSlot
- DisplayPort
- HDMI™
- USB 20Gbps port
- Front panel USB 5Gbps Type-C® port
- 2x M.2 slots
- Wi-Fi 6E with Q-Antenna
- Realtek 2.5Gb Ethernet
- Pre-mounted I/O shield
AI Solutions - AI Advisor - ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Performance
- Robust power design - Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME B860-PLUS WIFI is designed to meet the needs of high-core-count CPUs. It features 8(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.
- Six-layer PCB design - The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
- ProCool connector - Proprietary 8 pin connector improve PSU connection.
- Power Saving - Optimize power with CPU, lighting, and fan settings.
- Digi+ VRM control - The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.
Enhanced Memory & Storage Performance
- AEMP III for Ultimate DDR5 Performance - ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.
- DIMM Fit - DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.
- Two M.2 slots (up to 128Gbps) - The PRIME B860-PLUS WIFI offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
Cooler by design
The PRIME B860-PLUS WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
- ASUS Fan Xpert 2+ - ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Empowering connections
This motherboard offers a versatile range of connectivity, including support for WiFi 6E, PCIe 5.0 slot and an arsenal of USB ports which includes Type-C® connections.
Personalization
The PRIME B860-PLUS WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
- UEFI BIOS - The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
-
ASUS GlideX - Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.
- ASUS DriverHub - Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
- Armoury Crate - Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
- Aura Sync - Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
- Addressable Gen2 RGB headers - Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.
DIY friendly
The PRIME B860-PLUS WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.
- Q-Antenna - With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
-
Q-LED - The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup.
- Pre-mounted I/O shield - Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
- SafeSlot - PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
